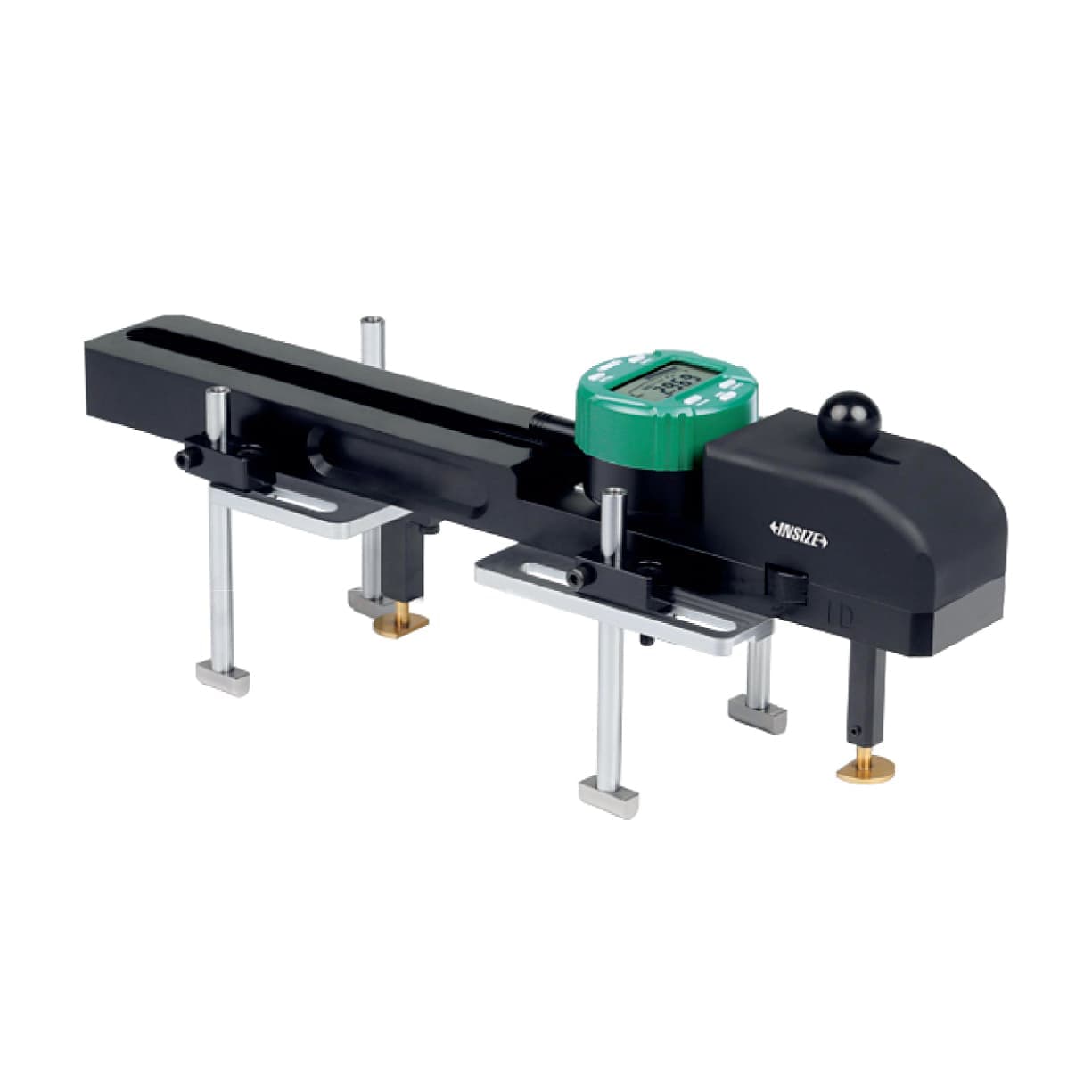

Insize 100 - 300 mm Wireless Digital Comparison Gauge, 2514-300WL
Roll over the image to zoom in
Key Features
- Product Type: Comparator Gauges
- Range of Internal / External Diameter (mm): 100 - 300 mm
- Contact Point Stroke: 10 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,78,857 (Incl. of all taxes)
₹1,51,574 + ₹27,283 GST (18%)
MRP was MRP ₹2,19,672
Save 31%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Measure internal diameter and external diameter
- Measuring force: 3-4N, point height is adjustable(h): 10-40mm
- Digital indicator display can be rotated by 320°
- Digital indicator button function: on/off, zero setting, tolerance Go and No-Go display, measuring direction change, max./min./TIR measurement, data preset, inch/metric conversion, data output, absolute/incremental measurement
- Digital indicator can keep preset data and tolerance data in memory after restart
- Built-in wireless (receiver code 7315-2/3/6/7/8/9 is needed)
- Optional accessory: gauge blocks (code 4101), gauge block accessory (code 6881)
Specification of Digital Indicator:
- Part No.: 2508-10FWL
- Range: 12.7 mm / 0.5 inch
- Resolution: 0.001 mm / 0.00005 inch
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range of Internal / External Diameter (mm) | 100 - 300 mm |
|---|---|
| Contact Point Stroke | 10 mm |
| Accuracy | 5μm |
| Repeatability | 2μm |
| Power Supply | Rechargeable Lithium Battery |
