Insize 100 mm Effective Length Linear Scale, ISL-B5-100
Roll over the image to zoom in
Key Features
- Product Type: Linear Scales
- Effective Length (mm): 100 mm
- Resolution: 5μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,737 (Incl. of all taxes)
₹9,099 + ₹1,638 GST (18%)
MRP was MRP ₹12,816
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- IP54 Waterproof
- Optical TTL (Through-The-Lens) detection.
- These optical TTL linear scales use an transistor logic to transmit and record high-resolution distance measurements.
- They are the most accurate type of encoder and are paired with ISL-DR2/DR3 and ISL-LCD7 (digital readout)

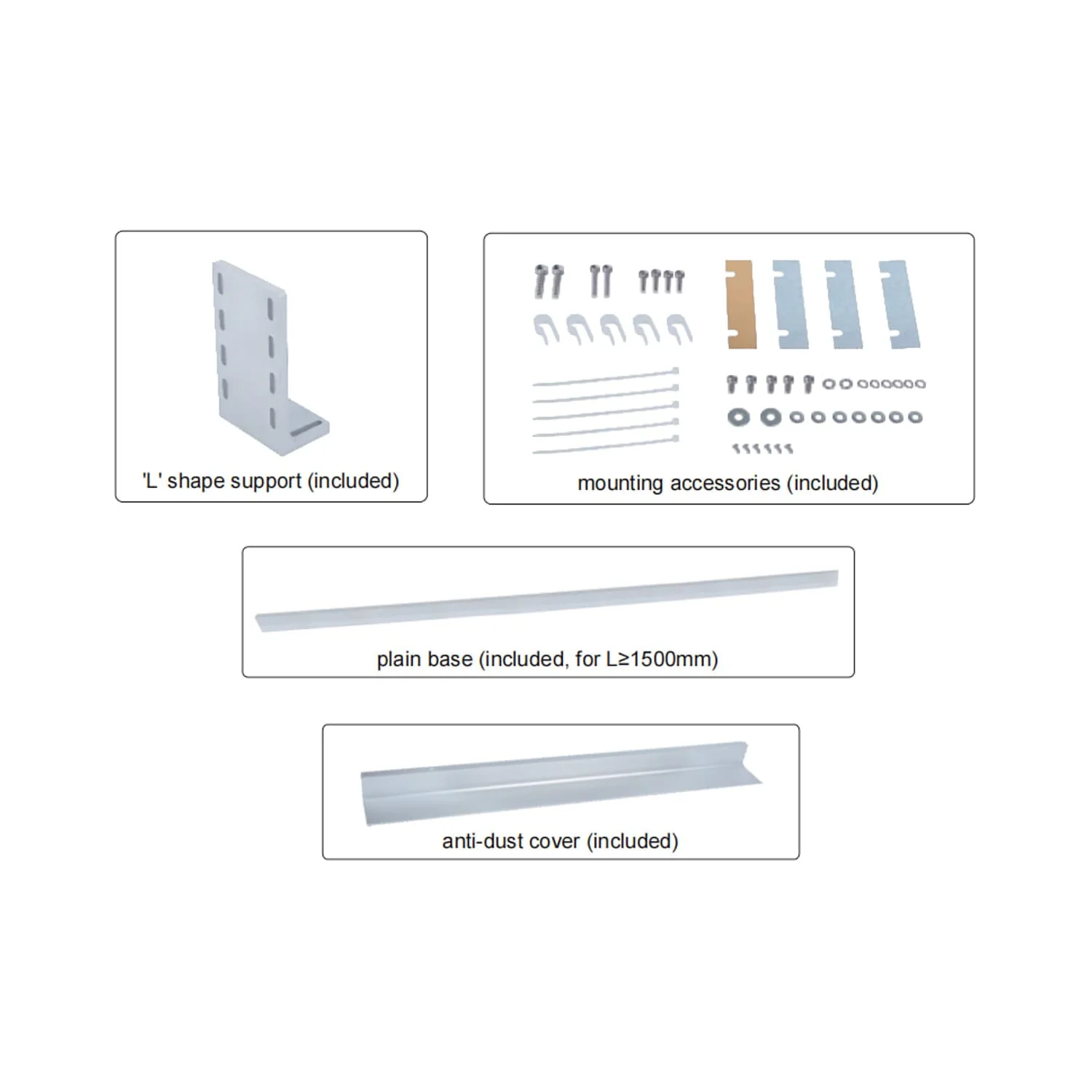

Package Content:
- 1x Linear Scale
- 1x "L" Shape Support
- 1x Anti-dust Cover
- 1 Package x Mounting Accessories
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Effective Length (mm) | 100 mm |
|---|---|

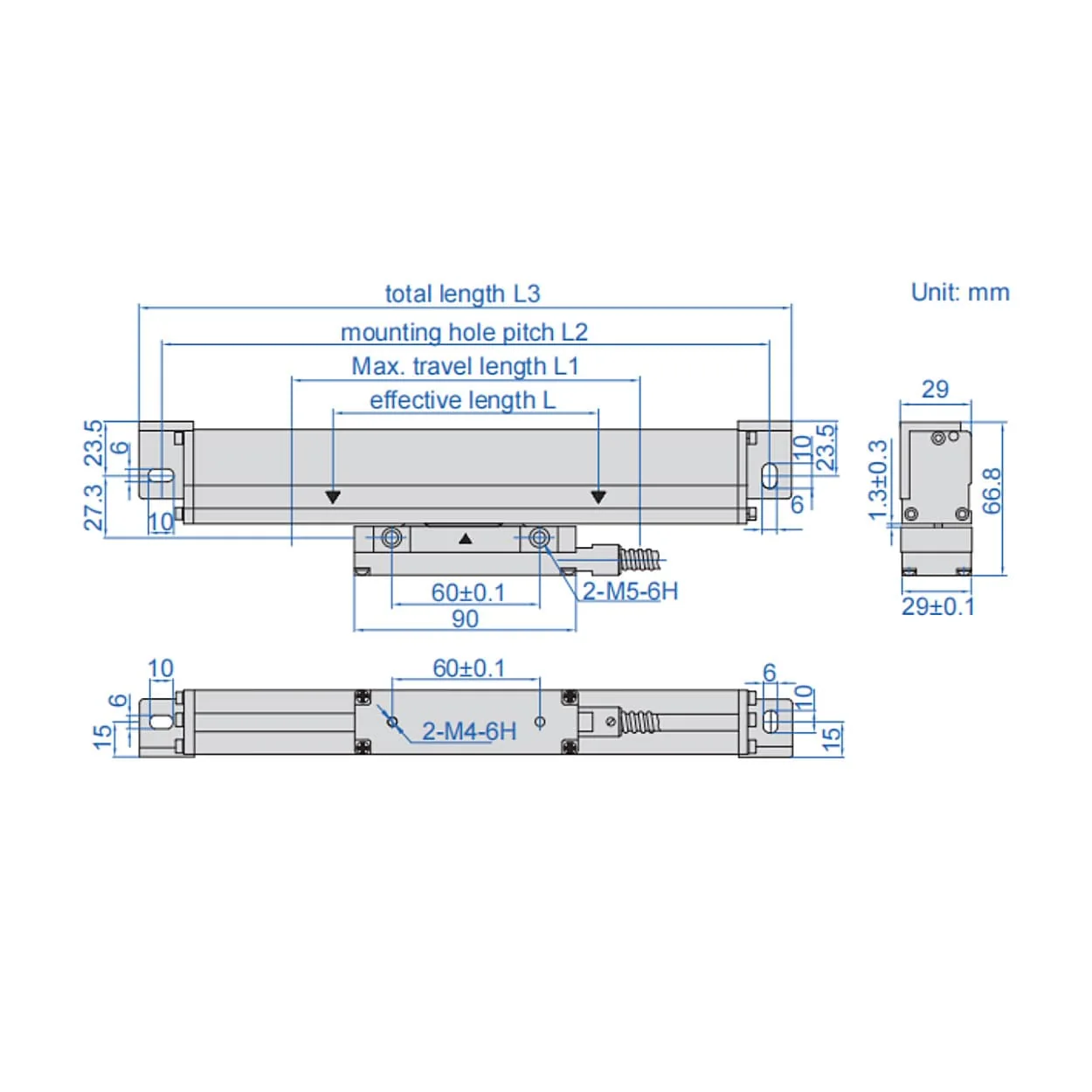

| L1 (mm) | L+30 mm |
| L2 (mm) | L+136 mm |
| L3 (mm) | L+154 mm |
| Resolution | 5μm |
| Max. response Speed | 60m/min |
| Scale Grating Pitch | 20μm |
| Scale Reference Point pitch (mm) | 50 mm |
| Accuracy | ±(5+5L/1000)μm (L is the Effective Length in mm) |
| Cable Length (mm) | 3.5 mm |
| Output Signal | TTL |
| Socket | 9PD |
| Power Supply | 5±0.5V |
