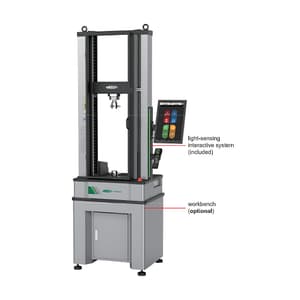

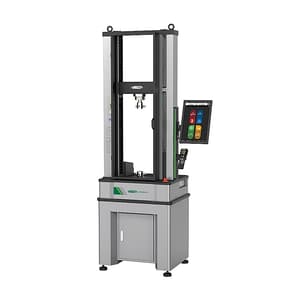

Insize 100kN Electronic Universal Testing Machine (Advanced Type), UTM-GB100K
Roll over the image to zoom in
Key Features
- Product Type: Testing Machine
- Weight: 1000 kg
- Max. Test Force: 100N
- Accuracy Test Force: ±0.5%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹66,98,552 (Incl. of all taxes)
₹56,76,739 + ₹10,21,813 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- According to GB/T, ISO, ASTM etc.
- For testing and researching the mechanical properties such as tension, compression, bending, shear and peeling of metals, non-metals and composite materials
- With a high-rigidity frame structure to achieve low-vibration and precise loading
- With powerful operation and analysis software
- With touchscreen and button integrated control box
- Protection Function: Force overload protection, limit protection, anti-collision protection, voltage overload protection
- Accuracy of strain measurement: Superior to the requirements of standards such as GB/T 228, ISO 6892-1 , ASTM E8 and ASTM E21
Technical Data of Electronic Fixture:
| Compression Fixture | Max. Force | 100kN |
| Diameter | Ø150 mm | |
| Operating Temperature | Room Temperature | |
| Wedge Fixture | Max. Force | 100kN |
| Type of Fixture | Mechanical Fixture | |
| Operating Temperature | Room Temperature | |
| Clamping range of flat jaw | 0 - 7 mm / 7 - 14 mm / 14 - 21 mm | |
| Clamping range of V-jaw | Ø4 - 9 mm / Ø9 - 14 mm / Ø14 - 19 mm |
Package Content:
- 1x Main unit
- 1x Control box
- 1x Measuring software
- 1x Computer
- 1x Printer
- 1 Set x Compression fixture
- 1 Set x Tensile fixture
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Test Force | 100N |
|---|---|
| Type of testing Machine | Floor-standing single-space |
| Accuracy Class | 0.5 Class |
| Accuracy Test Force | ±0.5% |
| Range of Test Force | 0.4 - 100%FS |
| Resolution of Test Force | 1/600000FS |
| Crossbeam Displacement Accuracy | ±0.2% or ±0.01 mm (whichever is larger) |
| Crossbeam Displacement Resolution | 0.0095μm |
| Min. Test Speed | 0.00005 mm/min |
| Max. Test Speed | 850 mm/min |
| Max. Return Speed | 1200 mm/min |
| Accuracy of Crossbeam Speed | 0.05 mm/min - 100%FS, ±0.2% of the set value |
| Resolution of Deformation | 1/600000FS |
| Frequency of Data Sampling & Control Loop | 1200Hz |
| Stiffness | 270kN/mm |
| Vertical Test Space | 1350 mm |
| Effective Test Width | 600 mm |
| Power Supply | AC 380V, 50/60Hz, 2kW |
| Dimensions (L x W x H) | 2550 x 1175 x 710 mm |
