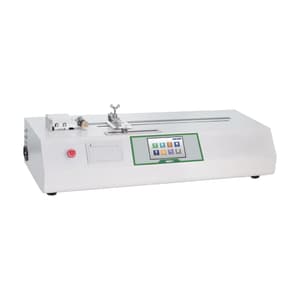

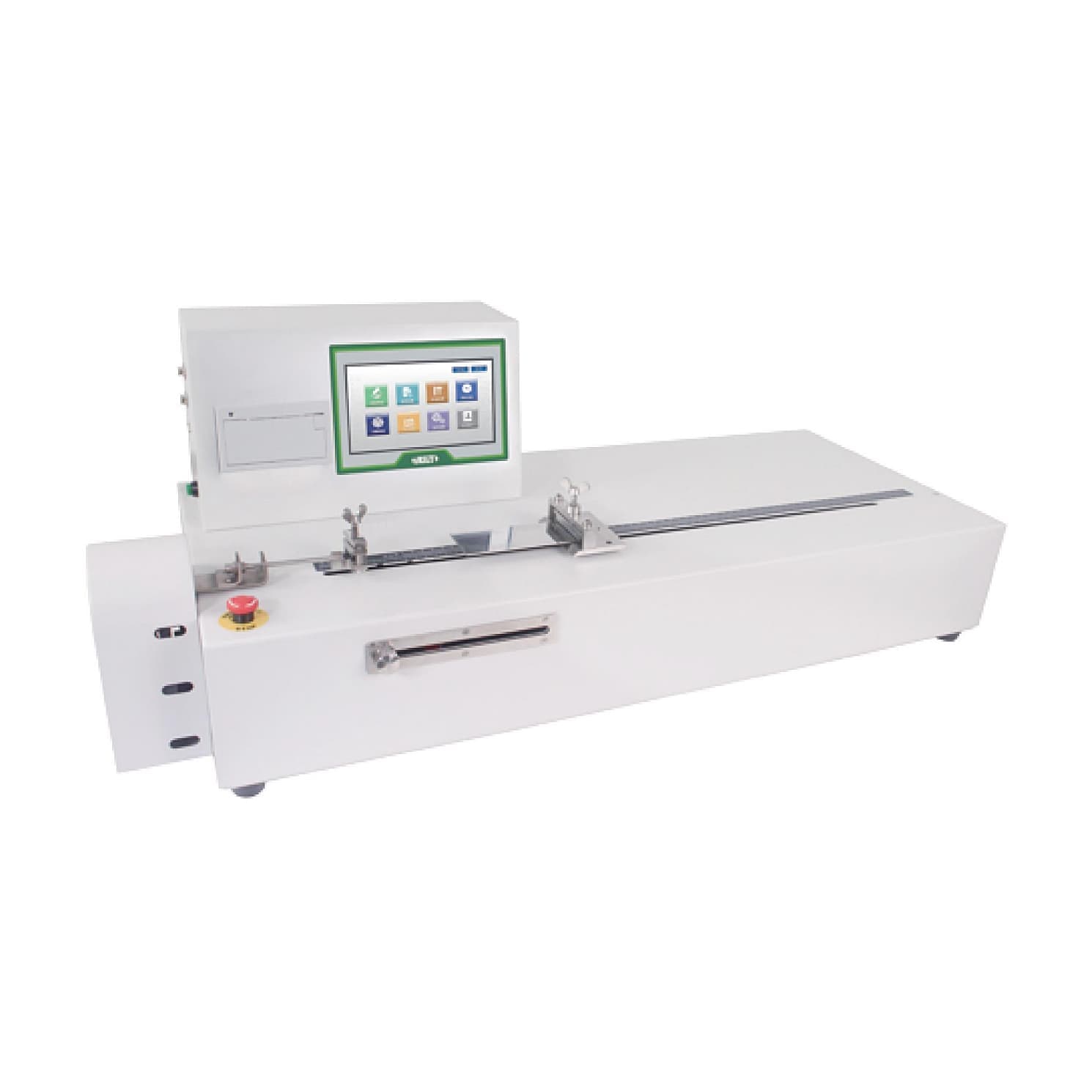

Insize 100N Test Force Electronic Peel Tester, DTM-CA100
Roll over the image to zoom in
Key Features
- Product Type: Peel Tester
- Weight: 18 kg
- Max. Test Force: 100N
- Range of Test Force: 0.5% - 100%FS
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,57,388 (Incl. of all taxes)
₹3,87,617 + ₹69,771 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- According to GB/T 4850, GB/T 7754, GB/T 8808, GB/T 13022, GB/T 7753, GB/T 17200, GB/T 2790, GB/T 2791, GB/T 2792, QB/T 2358, YYT 0507, YYT 0148, JIS-Z 0237, HG/T 2406-2002
- Suitable for the peeling, shearing and pulling off performance test of adhesive, release paper, adhesive tape, self-adhesive, composite film, artificial leather, woven bag, film, paper, electronic carrier tape and other products
- Industrial touch screen, easy operation
- Three measurement modes: maximum, real-time and average values
- Test results can be output for group statistical analysis
Package Content:
- 1x Electronic Peel Tester
- 1x Peel Fixture
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Test Force | 100N |
|---|---|
| Accuracy of Test Force | ±0.5% |
| Resolution of Test Force | 0.001N |
| Range of Test Force | 0.5% - 100%FS |
| Range of Speed Adjustment | 0.04 - 19.69in/min |
| Width of Specimen | 30 mm (included) / 50 mm (Optional) |
| Stroke | 15.75 inch |
| Power Supply | AC 110V, 60Hz |
| Dimensions (L x W x H) | 29.53 x 11.81 x 6.50 inch |
