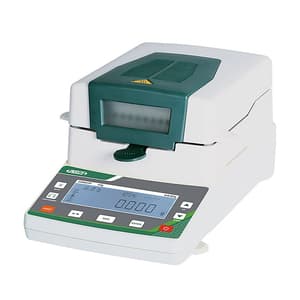

Insize 110g (Max. Weighing) / 1mg (Resolution) Infrared Moisture Analyzer, 8702-110
Roll over the image to zoom in
Key Features
- Product Type: Moisture Meter
- Max. Weighing: 110g
- Resolution (mg): 1mg
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,35,248 (Incl. of all taxes)
₹1,14,617 + ₹20,631 GST (18%)
MRP was MRP ₹1,61,432
Save 29%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Data output
- Cast aluminium housing, multi-layer stainless steel heating chamber
- Radiation-proof, interference-resistant
- Capable of storing multiple drying process sequences
- Heating time and temperature are adjustable
- LCD display, with backlight
- Calibration method: external calibration
- Unit: g, MC% (moisture content), DC% (dryness content)
- Accuracy for Moisture: ±0.3% (Sample<5g) / ±0.2% (Sample>5g)
Selection of Moisture Analyzer:
| Basis for selection | Priority infrared lamp |
| Sample morphology | powder, paste, porous, com lex com osition, lumpy |
| Ingredient stability | containing heat-sensitive/volatile substances (e.g. foodstuffs, pharmaceuticals) |
| Water distribution | internal/overall moisture content (requires thorough drying) |
| Testing requirements | high precision, high efficiency, long-term stability (high-frequency testing) |
| Risk aversion | Avoid localised overheating that may cause decomposition/evaporation of components, thereby compromising accuracy |

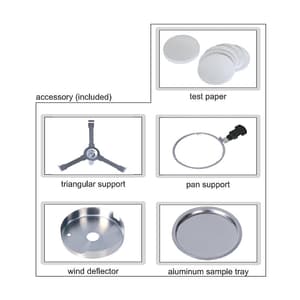

Package Content:
- 1x Infrared Moisture Analyzer
- 1x Triangular support
- 1x Pan support
- 1x Wind deflector
- 50x Aluminum sample tray (8702-ALP)
- 50x Test paper (8702-PAPER)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Weighing | 110g |
|---|---|
| Resolution (mg) | 1mg |
| Moisture Readability | 0.01% |
| Heating Source | Infrared Lamp (450W) |
| Temperature Sensor | High-precision Thermoresistors |
| Stabilization Time | 2.5s |
| Warm-up time | 20-30 mins |
| Weighing pan size | Ø90 mm |
| Range for heating temperature | 40 - 160°C |
| Operation temperature | 15 - 30°C |
| Heating mode | standard heating, rapid heating, gentle heating |
| Shutdown mode | Automatic shutdown, manual shutdown, timed shutdown |
| Output | RS232 |
| Power Supply | 220V, 50/60Hz |
| Dimensions (L x W x H) | 365 x 235 x 185 mm |
