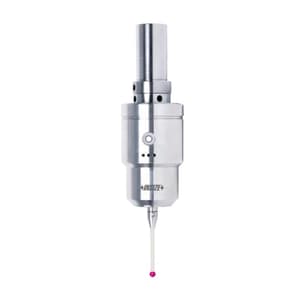

Insize 115.5 mm Trigger-Type 3D Probe (Audible & Visual Alarm), 9410
Roll over the image to zoom in
Key Features
- Product Type: Probes & Accessories
- Probe Length (L): 115.5 mm
- Shank Diameter (mm): 20 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹54,653 (Incl. of all taxes)
₹46,316 + ₹8,337 GST (18%)
MRP was MRP ₹66,166
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- IP67 Waterproof
- Suitable for all kinds of machining centers, CNC boring machines, milling machines, drilling and tapping centers
- Suitable for workpiece detection of various solid materials
- Manually set the workpiece coordinates and machining reference points before CNC machining process
- In the process of CNC machining, manually detect and control key dimensions and position coordinates and their accuracy
- Detect the accuracy of the key size, shape and position of the workpiece after the completion of CNC machining
- Supplied with 020mm shank diameter, held by CNC
- LED indicator and buzzer indicate the trigger state of the probe
- Using lithium battery charging technology, no need to replace the battery
- The battery (5% utilization rate per shift) can be used continuously for 90 days
- Type-C interface
- Optional accessory: styli and extension bar
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications

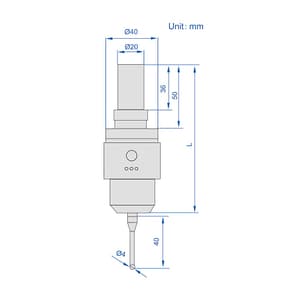

| Probe Length (L) | 115.5 mm |
|---|---|
| Shank Diameter (mm) | 20 mm |
| Trigger Direction | ±x, ±Y, ±Z |
| Directional Trigger Protection Stroke | X-Y±12°, Z+5mm |
| Arbitrary One-way Repeated Trigger Accuracy | <1μm |
| Trigger Force in X-Y Direction (With Standard Styli) | 0.3 - 0.6N |
| Trigger Force in Z Direction | 4N |
| Class of Protection | IP67 |

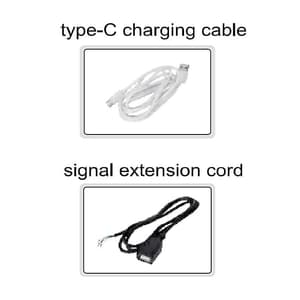

| Type-C Charging Cable | 1.5m |
| Singnal Extension Cord (Provide Signals to CNC) | 1m |
