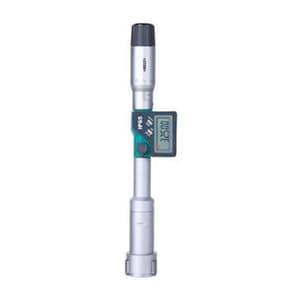

Insize 12 - 20 mm Digital Three Points Internal Micrometer Set with Setting Ring (Pack of 2 Pcs), 3127-202
Roll over the image to zoom in
Key Features
- Product Type: Micrometer Sets
- Range (mm): 12.20 mm
- Range (inches): 0.47 - 0.79 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹63,254 (Incl. of all taxes)
₹53,605 + ₹9,649 GST (18%)
MRP was MRP ₹75,500
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- IP65 Dust/Waterproof
- Three Points Internal Micrometer Set (2 Size): 12 - 16 mm (0.47 - 0.63") / 16 - 20 mm (0.63 - 0.79")
- Buttons: on/off, set, mm/inch, data transmit
- Data output
- Automatic power off
- Ratchet stop
- Optional accessories: Data output cable (code 7315-31 page 4, 7302-30 page 12), setting ring (code 6312), micrometer stand and clamp (code 6301 and 6301-2)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Pieces per set | 2 Pcs |
|---|---|
| Range (mm) | 12.20 mm |
| Range (inches) | 0.47 - 0.79 inch |

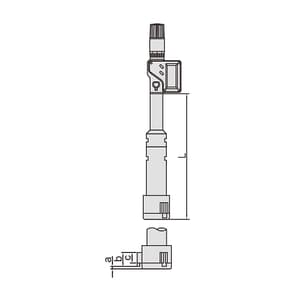

| A (mm) | 0.5 mm |
| B (mm) | 6 mm |
| C (mm) | 4.5 mm |
| Accuracy | 4μm |
| Setting Ring (mm) | Ø16 mm |
| Extension Rod | 150 mm |
| Length | 99 mm |
| Type | B (Three Points) |
| Resolution | 0.001 mm / 0.00005 inch |
