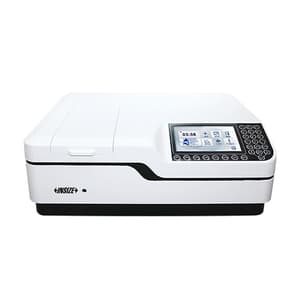

Insize 190 ~ 1100nm Ultraviolet-Visible Spectrophotometer (Advanced Type), UVS-B103
Roll over the image to zoom in
Key Features
- Product Type: Spectrophotometer
- Weight: 21 kg
- Wavelength range: 190 ~ 1100 nm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,59,447 (Incl. of all taxes)
₹3,89,362 + ₹70,085 GST (18%)
MRP was MRP ₹5,48,397
Save 29%
7 Business Days
1
90273020
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Data Output
- Widely used in organic chemistry, biochemistry, pharmaceutical analysis, food testing, environmental testing, life sciences, etc.
- Photometric measurement, quantitative measurement, kinetics, spectrum scan, DNA/protein test, mult-wavelengti test, etc.
- Suspended optical system with thickened aluminum base plate to reduce the effects of vibration
- The dual-layer design separates optical and electrical circuits completely, improving instrument resolution and stability
- Adoption of photoelectric signal detection device for lower SNR
- Ultra-large screen shows various scan curves and graphs directly
Standard Delivery:
- 1x Spectrophotometer
- 1 Set x Glass Cuvette (10 mm)
- 1 St x Quartz Cuvette (10 mm)
Optional Accessories:
- Computer (UVS-B103-COMPUTER)
- Software UVS-B103-SOFTWARE
- Printer (UVS-B103-PRlNTER)
- Manual 4-position film holder (UVS-B103-BM4)
- Manual 4-cell holder (100mm) (UVS-B103-BSM10)
- Auto 8-cell holder (UVS-B103-BSM08)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Optical system | Double beam, grating 1200 lines/mm |
|---|---|
| Wavelength range | 190 ~ 1100 nm |
| Spectral bandwidth | 2.0 nm |
| Wavelength accuracy | ±0.3nm |
| Wavelength repeatability | < 0.1nm |
| Wavelength resolution | 0.1nm |
| Stray light | <0.1%T @420nm, <0.05%T @220nm/340nm |
| Noise | <0.05%T (transmittance 0%), <0.1%T (transmittance 100%) |
| Baseline flatness | ±0.001A/h |
| Photometric range | 0-200%T, -3~3A, 0-9999C (0-9999F) |
| Photometric accuracy | ±0.3%T |
| Photometric repeatability | <0.1%T |
| Work mode | T, A, C, E |
| Light source | Deuterium lamp, Tungsten lamp |
| Display | 7 inch TFT color Screen |
| Data storage | 2000 test data or 500 working curves |
| Data output | Data export via U disk, supporting Excel, txt and image |
| Power Supply | AC 220V, 50Hz |
| Dimension (W x D x H) | 450 x 580 x 210 mm |
