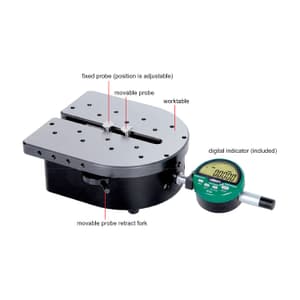

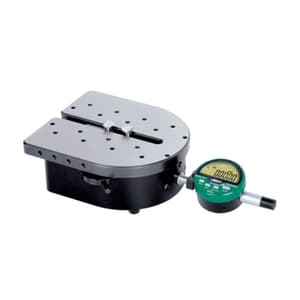

Insize 2 - 5N Universal Comparison Measuring Bench, 6848-145
Roll over the image to zoom in
Key Features
- Product Type: Measuring Bench
- Adjustable Measuring Force: 2 - 5N
- Movable Probe Travel: 20 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,81,462 (Incl. of all taxes)
₹1,53,781 + ₹27,681 GST (18%)
MRP was MRP ₹2,26,148
Save 32%
7 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Switchable measurement direction for measuring internal and external diameter
- Digital indicator with IP54 dust/waterproof (when cap is lifted, no dust/waterproof)
- Digital indicator uses absolute encoder, the original data remains after power off
- Digital indicator uses rechargeable battery, for 30 hours continuous working
- Digital indicator with automatic power off
- Digital indicator reading in digital and analog
- Digital indicator display can be rotated by 270°
- Digital indicator button function: on/off, zero setting, data preset, tolerance Go and No-Go display, data hold, mm/inch, measuring direction change.max./min./TlR, absolute/incremental measurement, data output
- Data output cable (keyboard format) is included in the digital indicator
- After set zero at any position, accuracy is 2µm within ±1 mm from zero position

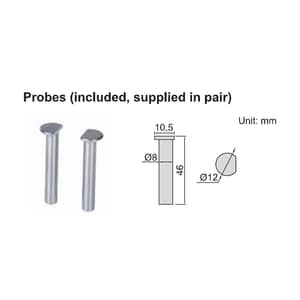

- The measuring range will change according to different measuring probes
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Adjustable Measuring Force | 2 - 5N |
|---|---|
| Movable Probe Travel | 20 mm |
| Range of Diameter (mm) | 0 - 100 mm (External) / 24 - 145 mm (Internal) |
| Resolution | 0.0005 mm / 0.00002 inch |
| Accuracy | 5μm |
| Any ±1 mm Accuracy | 2μm |
| Repeatability | 1μm |
