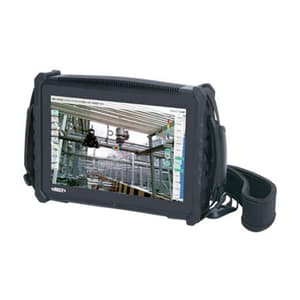

Insize 2 - 65 kHz Industrial Acoustic Imager, SCX-DMM72
Roll over the image to zoom in
Key Features
- Product Type: Acoustic Imager
- Weight: 2.1 kg
- Frequency Band: 2 - 65 kHz
- Resolution: 1000 x 600p
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,55,228 (Incl. of all taxes)
₹13,17,990 + ₹2,37,238 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

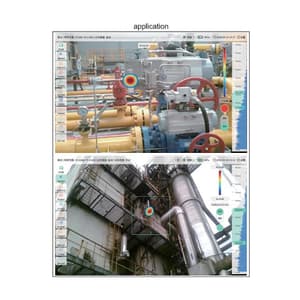

- Suitable for gas leakage detection under pressure or vacuum conditions, equipment noise localization, partial discharge localization and other scenarios
- Partial discharge pattern display function: real-time display of pulse emission pattern
- Leakage assessment function: adjustable measuring distance, more accurate assessment of the leakage rate
- Intelligent noise reduction function: automatically filters sound signals outside the focus frame
- Adjustable decibel threshold function: used to filter background noise
- Support photo and video recording of fault location
- Languages: Chinese & English
Package Content:
| Industrial Acoustic Imager | 1 pc |
| 128GB TF Card | 1 pc |
| Reader | 1 pc |
| Power Adapter | 1 pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please note that the Product may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications

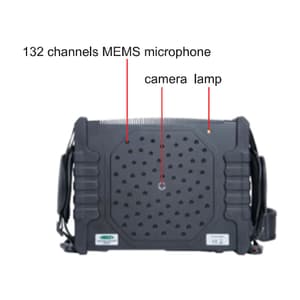

| Microphone | 132 Channels MEMS Microphone |
|---|---|
| Frequency Band | 2 - 65 kHz |
| Sound Image Field of View | 62 x 45° |
| Sound Image Frame Rate | 25FPS |
| Test Sound Pressure Level Range | 30 - 120dB |
| Detect Distance | 0.5 - 100 m |
| Position Accuracy | ±1cm |
| Camera Focal Length | 3.04 mm |
| Focusing Mode | Automatic |
| Resolution | 1000 x 600p |
| Display Size | 10 inch |
| Touch Screen | Capacitive |
| Backlight | Adjustable |
| Data Interface | TF Memory Card / USB 3.0 / Type-C |
| Data Storage Format | .jpg (picture), .mp4 (Video) |
| Battery Type | Rechargeable Li-ion Battery (Working Time about 3.5h) |
| Charging Mode | Type-C Charging, Portable Charger, Capable of Charging while Using |
| Switch-on Temperature | -10 ~ 40°C |
| Operation Temperature | -25 ~ 50°C |
| Storage Temperature | -20 ~ 40°C |
| Relative Humidity | 10 - 45%RH (Non-Condensing) |
| Lamp | 1W |
| Shell Material | Aluminium Alloy, Droop-proof Design |
| Protection | IP56 |
| Dimension (mm) | 272 x 200 x 50 mm |
