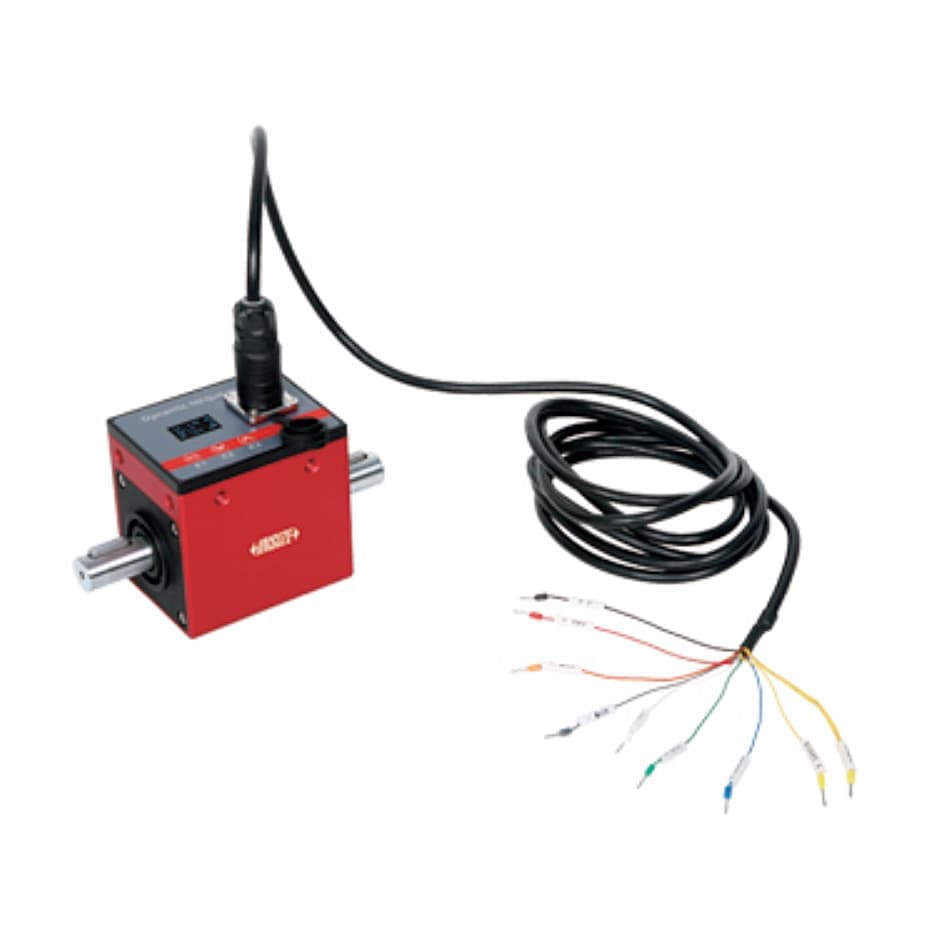

Insize 2000 Nm Dynamic Torque Sensor, IST-TA2000
Roll over the image to zoom in
Key Features
- Product Type: Torque Sensors
- Max. Torque: 2000 Nm
- Rated RPM: 4000 RPM
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,71,970 (Incl. of all taxes)
₹1,45,737 + ₹26,233 GST (18%)
MRP was MRP ₹2,02,412
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Real-time display of torque, RPM & power values
- Support RS485 communication, support active uploading protocols
- Communication rate up to 1000 Hz
- The torque signal is +5V transformed voltage output
- OLED display, resolution 128*64
- Simple calibration, zeroing, filtering, etc. can be performed
- Attention: Customization Is Required For RPM Exceeding The Rated RPM
Dimension Measurement:
 |
|
| D | 60 mm |
| B | 120 mm |
| L | 258 mm |
| L1 | 75.5 mm |
| H | 60 mm |
| H1 | 138.5 mm |
| A1 | 60 mm |
| A2 | 70 mm |
| B1 | 75 mm |
| B2 | 122.5 mm |
| D1 | 93 mm |
| M | 4-M10 depth 15 mm |
| M1 | 8-M10 depth 15 mm |
| N | 2-Ø10 depth 15 mm |
| P | 46 mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Torque | 2000 Nm |
|---|---|
| Rated RPM | 4000 RPM |
| Key Size (L x W) | 60 - 18 mm (Double Key) |
| RPM Signal | 120/60/10 pulses/rev. |
| Zero Output | ±0.1%F.S. |
| Accuracy | 0.1%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.1%F.S. |
| Creep (30 Minutes) | 0.05%F.S. |
| Temperature Sensitivity Drift | 0.05%F.S./10°C |
| Zero Temperature Drift | 0.05%F.S./10°C |
| Response Time | 0.6ms (50% Response) |
| Response Frequency | 1kHz |
| Max. Torsion Angle | 2.6x10rad (0.149°) |
| Inertial Torque | 0.38kg.cm |
| Intrinsic Frequency of Rotor Vibration | 19.4kHz |
| Torque Constant | 3.85x10N.m/rad |
| Material | Stainless steel |
| Annual Stability | 0.3%/year |
| Load Resistance | >2k ohm |
| Power Supply | DC24V 0.2A |
| Working Environment | -10~50°C <85%RH |
| Safety Overload | 150% |
| Extreme Overload | 200% |
| Cable Specification | Ø5mm x 3m |
| Extreme Cable Pulling Force | 10 Kg |
