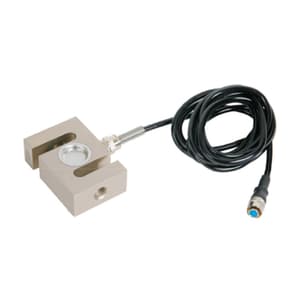

Insize 2000N / 200Kg Compression Sensor (S-Type Tensile), 8650-2K
Roll over the image to zoom in
Key Features
- Product Type: Compression Sensor
- Max. Range: 2000N / 200Kg
- Output Sensitivity: 2.0±10%mV/V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,571 (Incl. of all taxes)
₹3,874 + ₹697 GST (18%)
MRP was MRP ₹5,381
Save 28%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel
- Application fields: universal material testing machines, hopper scales, hook scales, packaging scales, belt scales, plug-in force testers and other tension and pressure testing instruments as well as automation equipments

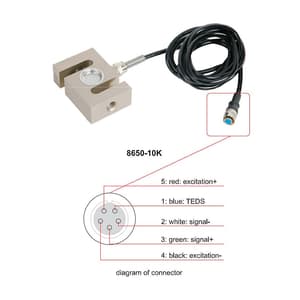

- Cable Specification: Ø5mm: <1T, 2m; >1T, 5m
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Range | 2000N / 200Kg |
|---|---|

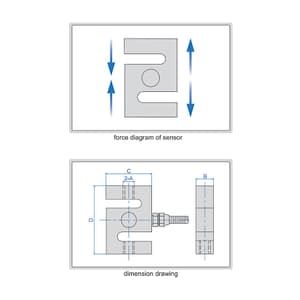

| A (mm) | M12 x 1.75 mm |
| B (mm) | 19 mm |
| C (mm) | 50.8 mm |
| D (mm) | 76.2 mm |
| Output Sensitivity | 2.0±10%mV/V |
| Zero Output | ±1% F.S. |
| Non-Linearity | ±0.03% F.S. |
| Hysteresis | ±0.03% F.S. |
| Repeatability | ±0.03% F.S. |
| Creep (30 MInutes) | ±0.03% F.S. |
| Temperature Sensitivity Drift | ±0.03% F.S. / 10°C |
| Zero Temperature Drift | ±0.05% F.S. / 10°C |
| Response Frequency | 10kHz |
| Electrical Impedance | 350 ohm |
| Insulation Impedance | >5000M ohm / 100VDC |
| Operating Voltage | 5 - 15V |
| Working Temperature | -20 ~ 80°C |
| Safety Overload | 150% |
| Extreme Overload | 200% |
| Extreme Cable Pulling Force | 10Kg |
| Material | Alloy Steel |
