Insize 25 - 50 mm Wireless Digital Snap Gauge, 3350-50AWL
Roll over the image to zoom in
Key Features
- Product Type: Snap Gauge
- Range (mm): 25 - 50 mm
- Range (inches): 1 - 2 inch
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹44,621 (Incl. of all taxes)
₹37,814 + ₹6,807 GST (18%)
MRP was MRP ₹53,259
Save 29%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Built-in wireless (receiver code 7315-2/3/6/7/8/9 is needed)
- Absolute encoder, the original data remains after power off
- Adjustable resolution: 0.0002 mm/0.00001 inch, 0.001 mm/0.00005 inch, 0.01 mm/0.0005 inch
- One turn of sleeve makes 5mm spindle feed
- Measurement accuracy is not affected by the use of sleeve

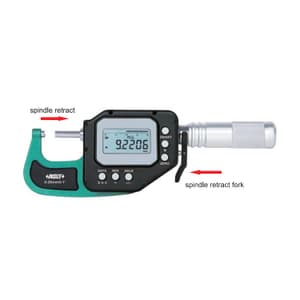

- Press the fork, the spindle retracts 3mm
- Linear ball bearings for ten million times use
- Carbide measuring faces
- Measuring force 5-10N (Customizable measuring force range 2-12N, Attention: small measuring force will reduce the dustproof and waterproof level)

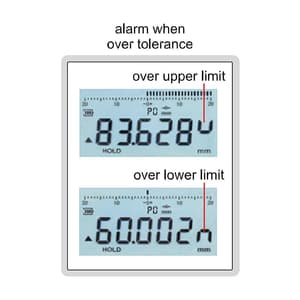

- Button function: data output, tolerance, data preset, data hold, measuring direction change, max./min./TlR, power off time, on/off, zero, mm/inch, adjust resolution
- Supplied with gauge blocks for zero setting (except 0-25mm/0-1 ")
- Power: rechargeable battery for 24 hours continuous working.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range (mm) | 25 - 50 mm |
|---|---|
| Range (inches) | 1 - 2 inch |
| Accuracy | 1.6μm |
| Repeatability | 1μm |
| Measuring Faces | 0.5μm (Flatness) / 1μm (Parallelism) |

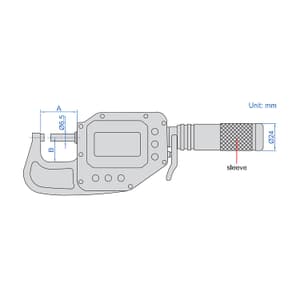

| Sizes (mm) | 63 mm (A) / 28 mm (B) |
| Protection | IP65 Waterproof |
| Spindle Type | Non-Rotating Spindle |
