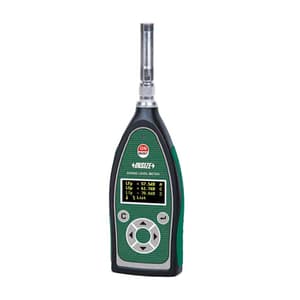

Insize 25dB - 141dB Sound Level Meter, 0011-FA25
Roll over the image to zoom in
Key Features
- Product Type: Sound Meter
- Weight: 180 g
- Measuring Range: 25dB - 141dB
- Frequency: 20Hz - 12.5kHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹55,951 (Incl. of all taxes)
₹47,416 + ₹8,535 GST (18%)
MRP was MRP ₹67,737
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Wide frequency range, large dynamic range, low background noise
- Parallel time weight and frequency weight
- Single range without shifting

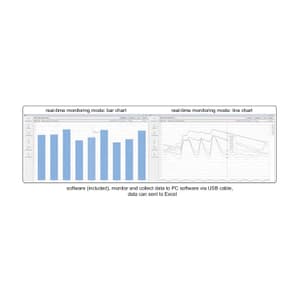

- Software is included: on-line monitoring, data storage
- Measuring Range: 25dB(A)~141dB(A); 35dB(C)~141dB(C); 50dB(Z)~141dB(Z) (Other frequency linear ranges: 31.5Hz: 26dB(A)~101dB(A); 12.5kHz: 25dB(A)~ 136dB(A))
- Data Storage: 4MB Flash RAM (4 sets of parameter templates, 128 measurement point names; 64 calibration records.)
What's Included In This Package:
| Main unit | 1 Pcs |
| Battery (AAA) | 4 Pcs |
| Windscreen | 1 Pcs |
| AC/DC Adapter | 1 Pcs |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range | 25dB - 141dB |
|---|---|
| Frequency | 20Hz - 12.5kHz |
| Accuracy | IEC 61672-1:2013 Class 2 |
| Self-generated Electrical Noise | <17dB(A), <23dB(C), <33dB(Z) |
| Integral Time | 1s - 24h (Ajustable) |
| Power | < 80mA/5V |
| AC/DC Adapter | 5V / 2A |
| Temperature Range | -10°C - 50°C |
| Humidity | 25%RH - 90%RH (Non-Condensing) |
| Pressure | 65 kPa - 108 kPa |
| Microphone | 1/2 Inch Prepolarized Condenser Microphone |
| Frequency Weighting | Parallel A, C, Z Weighting |
| Time Weighting | Parallel F (Fast), S (Slow), I (Impulse) Weightings |
| Measuring Function | Lp, Leq, t, Leq, T, Lmax, Lmin, Lpeak, SEL |
| Start Mode | Button/ Clock/ Limit/ Interval |
| Power Setting | Power on/off Regularly |
| Language | Chinese / English / Portuguese |
| Power Supply | 4 x AAA Batteries (for 10 hours working) |
| Dimension (mm) | 230 x 69 x 26 mm |
