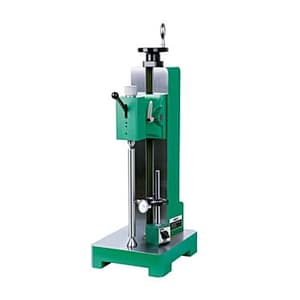

Insize 360 mm Vertical Bench Center, 4728-360

Shop all Insize

SKU: ME.DI.BE.00010

Model: 4728-360

Roll over the image to zoom in

Visit Insize Store

Key Features

  • Product Type: Bench Center
  • Weight: 85 kg
  • Runout Accuracy: 2μm
  • Center Height (H): 130 mm
See all product information

ToolBuy Benefits

₹7,03,261 (Incl. of all taxes)

₹5,95,984 + ₹1,07,277 GST (18%)

Out of Stock

3 Business Days

1

–

Download Product LeafletNot available
Download Insize CatalogueNot available

Highlights

  • Hardened cast-iron guide surface

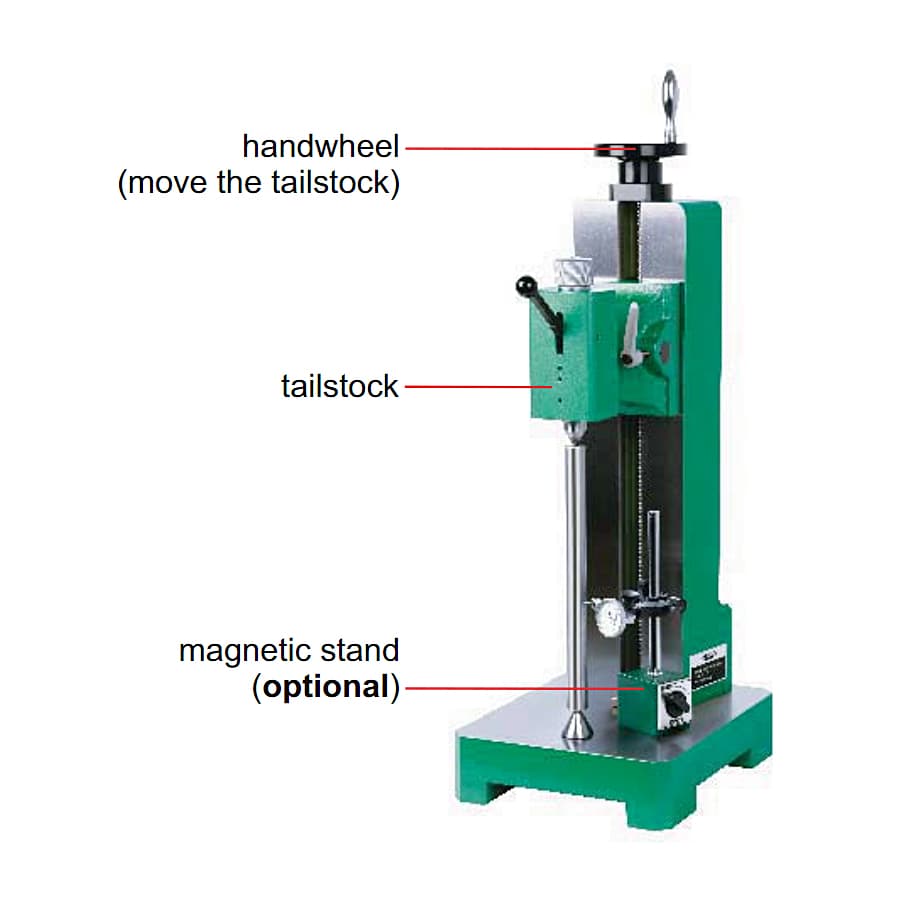

  • Use the handwheel to move the tailstock
  • Optional accessories: Magnetic stands, Dial test indicators
  • Parallelism of two centers to the guide surface

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

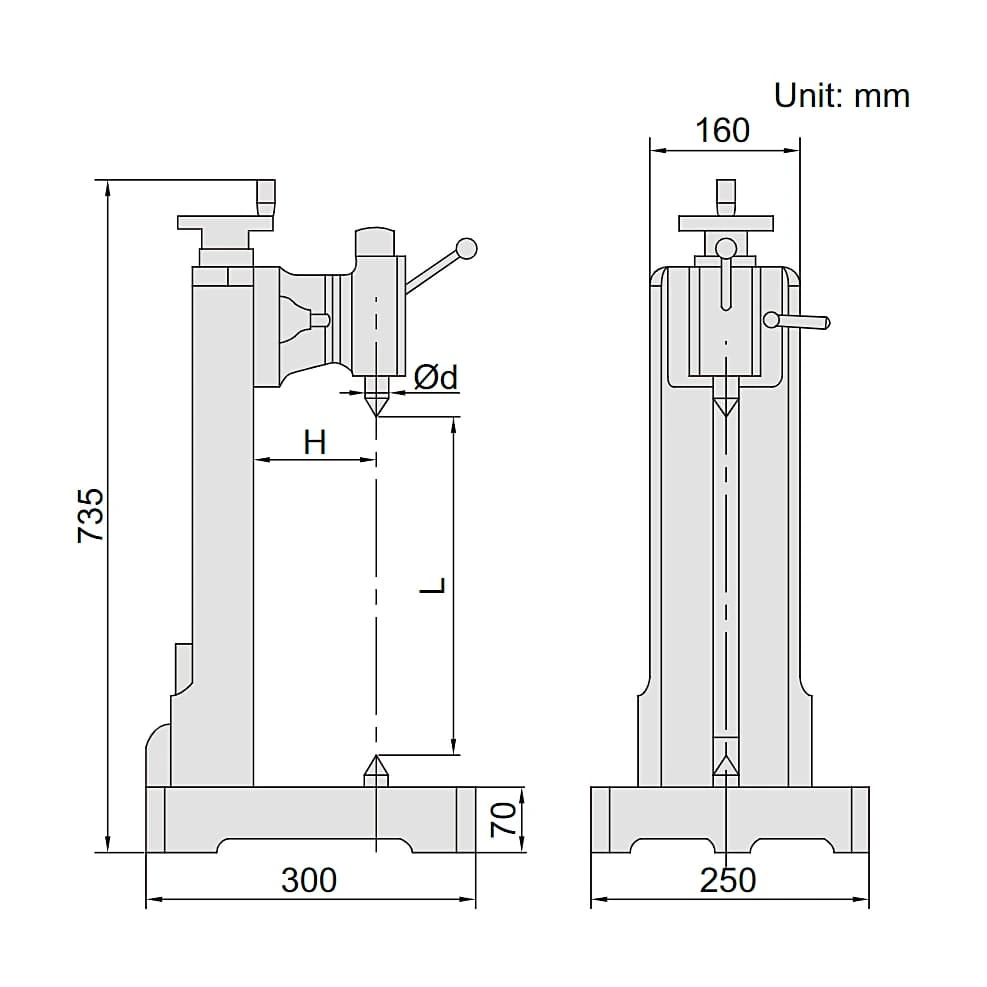

Specifications

Technical specifications for Insize 360 mm Vertical Bench Center, 4728-360
Runout Accuracy2μm
Center Height (H)130 mm
Distance between two centers (L)360 mm
Diameter of CenterØ24.1 mm
Taper of CenterMT3
Load Capacity80 Kg
Parallelism0.01 mm
