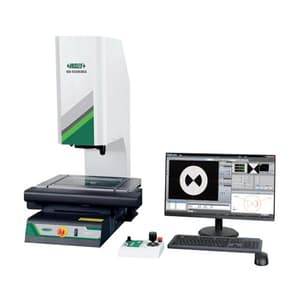

Insize 370 x 270 x 150 mm Standard Type CNC Vision Measuring System with Computer and Without Desk, ISD-V370CNCA
Roll over the image to zoom in
Key Features
- Product Type: Optical Measuring
- Weight: 266 kg
- Measuring Range (X x Y x Z): 370 x 270 x 150 mm
- Stage Size (mm): 606 x 466 mm
- Glass Stage Size (mm): 450 x 350 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹21,11,622 (Incl. of all taxes)
₹17,89,510 + ₹3,22,112 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
- Servo motors for X, Y, Z axis
- SPC function for large quantity measurement
- Accuracy of X/Y Axis: ≤(3.5+L/100)µm (L is the measuring length in mm)
- Illumination: Coaxial Light programmable segmented ring light (Surface), adjustable LED Light (Contour)
- Magnification: 33.0X - 208.6X (with manual zoom lens, on 24" monitor) / 31.9X - 188.7X (with motorized zoom lens, on 24" monitor)
What's Included in this Package:

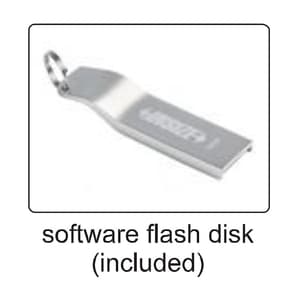

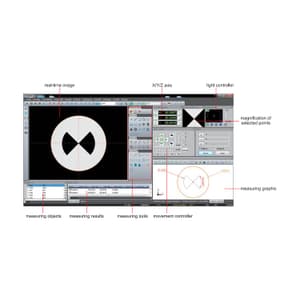

| Main unit | 1 pc |
| Software | 1 pc |
| Computer | 1 pc |
| 24-inch Display | 1 pc |

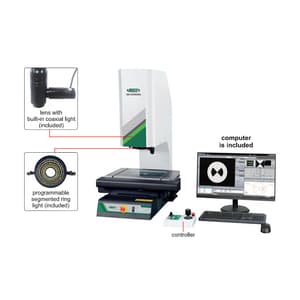

| Len with coaxial light | 1 pc |
| Controller | 1 pc |
| Calibration Glass Chart | 1 pc |
| Laser Positioner | 1 pc |
| Clay | 1 pc |
| Anti-dist Cover | 1 pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measuring Range (X x Y x Z) | 370 x 270 x 150 mm |
|---|---|
| Stage Size (mm) | 606 x 466 mm |
| Glass Stage Size (mm) | 450 x 350 mm |
| Resolution of X/Y/Z Axis | 0.5μm |
| Repeatability of X/Y Axis | 2μm |
| Objective | 0.7X - 4.5X (zoom) |
| Working Distance | 92 mm |
| View Field (Diagonal Length) | 1.5 - 10.8 mm |
| Camera | Giga-bit network camera |
| Max. Height of Workpiece | 150 mm |
| Max. Weigth of workpiece | 30Kg |
| Operation System | Windows 7/8/10 |
| Drive Method | Automatic |
| Power Supply | 220V, 50/60Hz |
| Dimension (L X W X H) | 970 x 670 x 940 mm |
