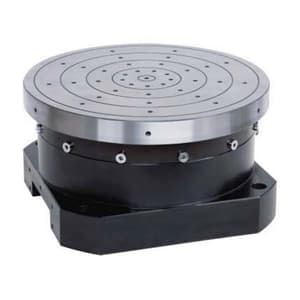

Insize 400 mm Dia. (Stage Size) Precision Air Floating Rotary Table, 6875-400
Roll over the image to zoom in
Key Features
- Product Type: Rotary & Indexing
- Size (Inches): 16 inch
- Sizes (mm): 400 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,72,557 (Incl. of all taxes)
₹9,93,692 + ₹1,78,865 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Manual rotation
- Optional accessory: High precision digital indicators (code 2133 series), Hydraulic universal magnetic stands (code 6274 series)
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Products may differ eg. color, size from the product Image displayed on the website. Kindly check the specifications provided to make a better purchase decision.
Specifications
| Size (Inches) | 16 inch |
|---|---|
| Sizes (mm) | 400 mm |
| Max. RPM | 500 RPM |
| Air Supply Pressure | 5 - 6 Bar |
| Max. Load | 100 Kg |
| Radial Stiffness | 250N/μm |
| Axial Stiffness | 500N/μm |
| Radial & Axial Runout | <0.3μm |

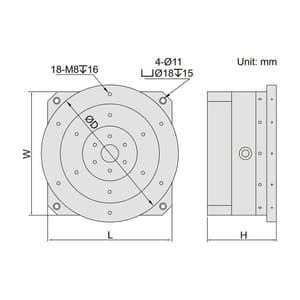

| Dimensions (L x W x H) | 272 x 272 x 161 mm |
