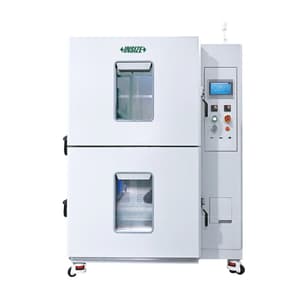

Insize 42 Ltr Thermal Shock Test Chamber (Two-zone Type), TST-A201
Roll over the image to zoom in
Key Features
- Product Type: Environmental Test Chamber
- Weight: 700 kg
- Chamber Volume: 42 Ltr
- Temperature Range: -40°C ~ 0°C (Low Temperature) / 60°C ~ 150°C (High Temperature)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,40,652 (Incl. of all taxes)
₹28,31,061 + ₹5,09,591 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Suitable for automotive industry, electronic industry, material, aerospace, communication, etc.
- Two-zone structure, can be quickly switched between high and low temperature zones
- Water-cooled system ensures superior cooling performance, adaptable to complex environments
- Multiple safety protections, such as leakage protection, overload protection, over-temperature protection, etc.
- Equipped with a touchscreen for simplified operation and flexible adjustment of testing parameters
- Software is included: support remote control and data exporting
What's Included in this Package:
| Main Unit | 1 pc |
| Sample Holder | 1 Set |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Chamber Volume | 42 Ltr |
|---|---|
| Temperature Range | -40°C ~ 0°C (Low Temperature) / 60°C ~ 150°C (High Temperature) |
| Temperature Deviation | ±2°C |
| Temperature Fluctuation | ±0.5°C |
| Temperature Uniformity | <2°C |
| Heating Time (High Temperature Zone) | About 40 min (RT~200°C) |
| Cooling Time (Low Temperature Zone) | About 60 min (RT~-50°C) |
| Cooling System | Water-Cooled |
| Temperature Recovery Time | <5 min |
| Basket Transfer Time | <10s |
| Basket Moving Mechanism | Pneumatic Drive |
| Operating Environment | 5 - 35°C (Temperature) / <85%RH (Humidity) |
| Power Supply | AC380V, 3Ø, 50Hz |
| Power | 22kW |
| Dimensions (L x W x H) | 400 x 300 x 350 mm (Chamber) / 1220 x 1570 x 2800 mm (External) |
| Material | Stainless Steel Plate (Inside) / Stainless Steel Plate with Baking Lacquer (Outside) |
