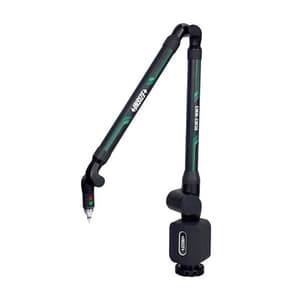

Insize 4500 mm Standard Precision Measuring Arm (6-Axis), CMM-BE45
Roll over the image to zoom in
Key Features
- Product Type: Optical Measuring
- Measuring Range (mm): 4500 mm
- Temperature Rate: 3°C/5min
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹51,54,201 (Incl. of all taxes)
₹43,67,967 + ₹7,86,234 GST (18%)
Out of Stock
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- In accordance with ISO 10360-12
- Internal balance
- Dual high-performance batteries
- Equivalent-arm design
- High-Speed WiFi performance
- Aerospace-grade carbon-fiber material
- Automatic power off
- U-shaped anti-collision design base
Technical Data:

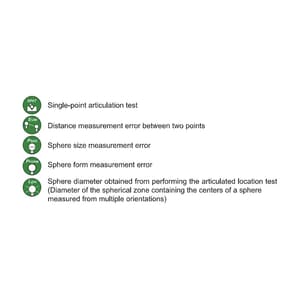

| Maximum Permissible Error | |
| SPAT | 0.112 mm |
| EUNI | 0.120 mm |
| PSIZE | 0.048 mm |
| PFORM | 0.086 mm |
| LDIA | 0.128 mm |
What's Included in this Package:
| Main Unit | 1 pc |

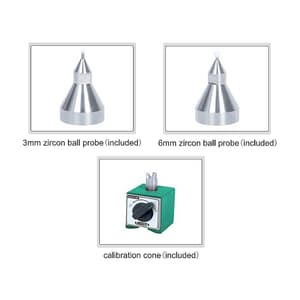

| 3mm zircon ball probe | 1 pc |
| 6mm zircon ball probe | 1 pc |
| Calibration cone | 1 pc |
| Lithium Batteries | 2 pcs |
| USB Cable | 1 pc |
| Power Adapter | 1 pc |
| Dust Cover | 1 p |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Measuring Range (mm) | 4500 mm |
|---|---|
| Temperature Rate | 3°C/5min |
| Output | USB, WIFI |
| Operation Temperature | 5°C - 45°C |
| Operation Humidity | 0 - 95%, non-condensing |
| Power | 100 - 240VAC, 50/60Hz |
| Battery Life | 5h for one battery; 10h for two batteries |
