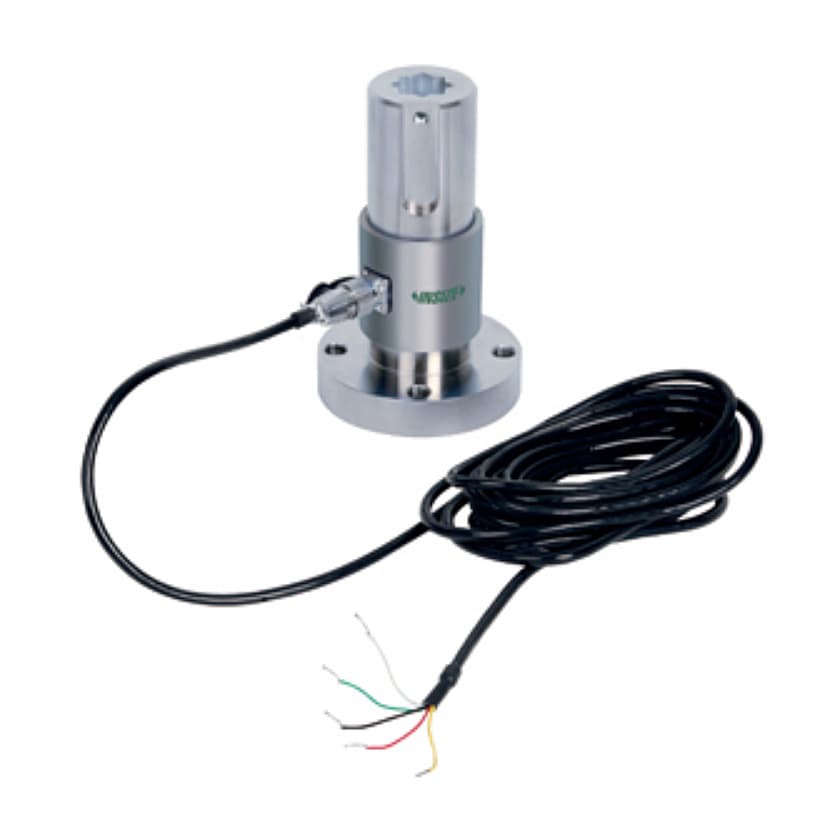

Insize 50 Nm Static Torque Sensor, IST-NJ50S
Roll over the image to zoom in
Key Features
- Product Type: Torque Sensors
- Max. Torque: 50 Nm
- Output Sensitivity: 1.0-2.0mVV
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹31,602 (Incl. of all taxes)
₹26,781 + ₹4,821 GST (18%)
MRP was MRP ₹38,259
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights

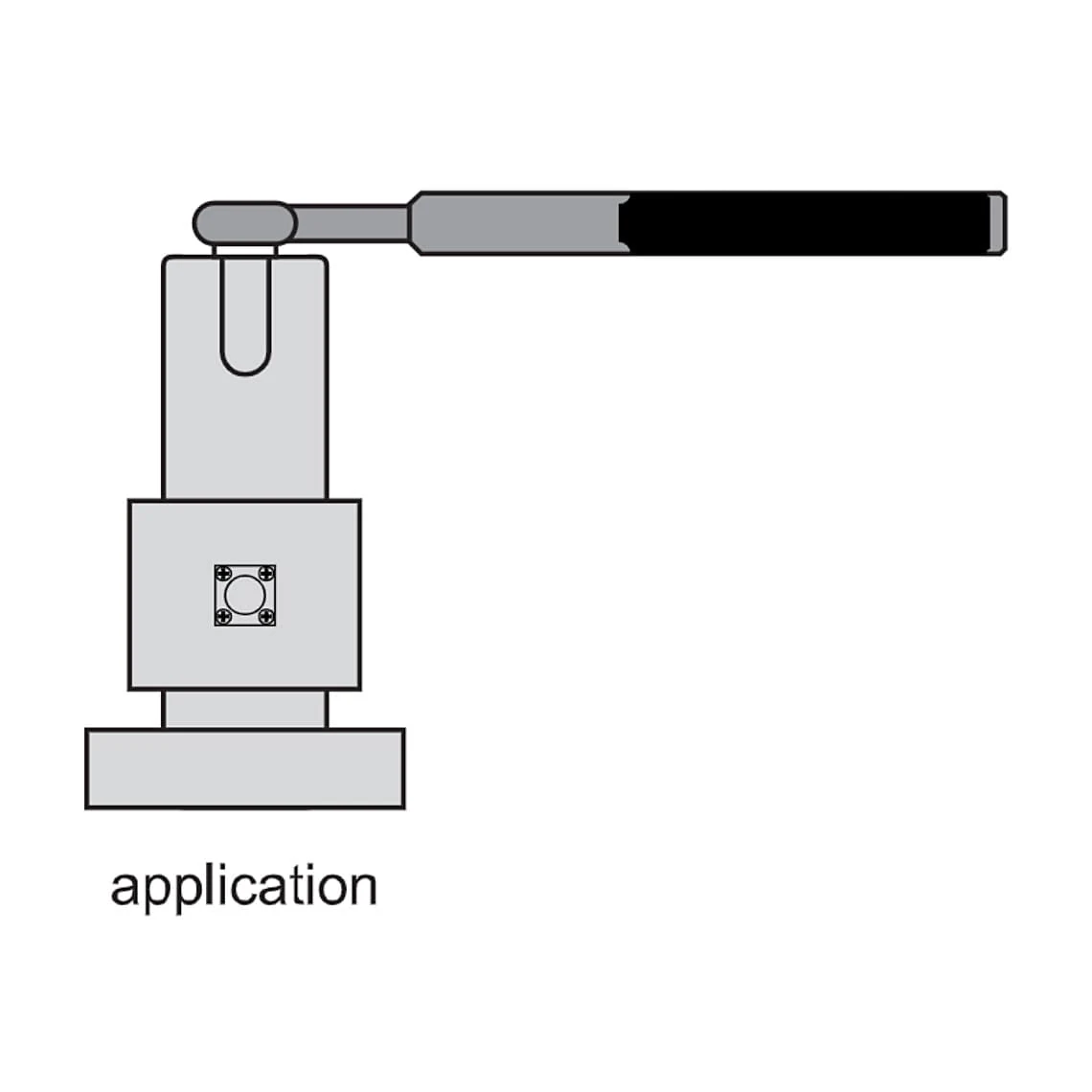

- Wide range of applications: for testing electric, pneumatic and manual torque screwdrivers and torque wrenches and other torque tools and torque monitoring
- Clockwise and counter-clockwise operation
- High overall accuracy, good long-term stability
Dimension Measurement:
 |
|
| A | 98 mm |
| B | 50 mm |
| C | 80 mm |
| W | 58 mm |
| D | 90 mm |
| E | 15 mm |
| F | 33 mm |
| K | 33 mm |
| L | 25 mm |
| N | 16 mm |

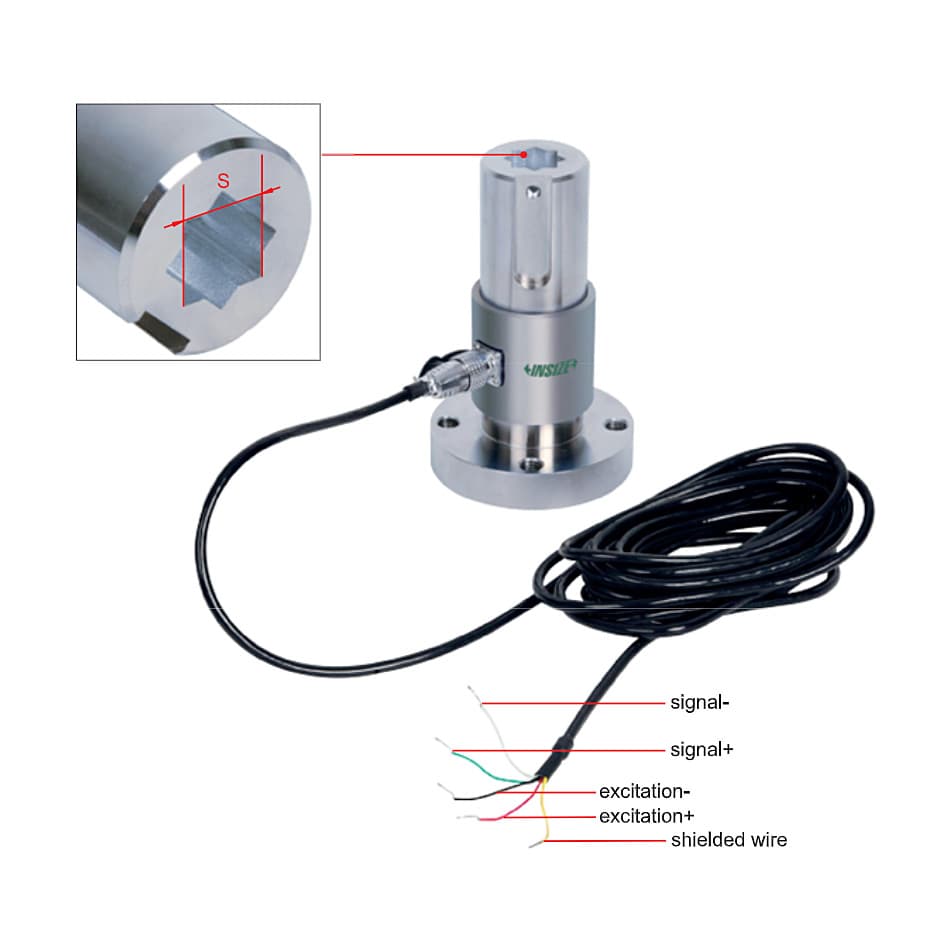

| S | 20 mm |
| P | 44 mm |
| M | 4 x Ø10.5 mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Max. Torque | 50 Nm |
|---|---|
| Output Sensitivity | 1.0-2.0mVV |
| Zero Output | +1% F.S. |
| Accuracy | ±0.2%F.S. |
| Repeatability | ±0.2%F.S. |
| Hysteresis | ±0.5%F.S. |
| Creep (30 minutes) | ±0.1 %F.S |
| Temperature Sensitivity Drift | ±0.1%F.S./10°C |
| Zero Temperature Drift | ±0.1%F.S./10°C |
| Response Frequency | 10kHz |
| Material | Alloy Steel / Stainless Steel |
| Electrical Impedance | 350±5/700±50 ohm |
| Insulation Impedance | >5000M ohm / 100V DC |
| Operating Voltage | 5~15V |
| Working Temperature | -20 ~ 80°C |
| Safety Overload | 120% |
| Extreme Overload | 150% |
| Cable Specification | Ø5mm x 3m |
| Extreme Cable Pulling Force | 10 Kg |
