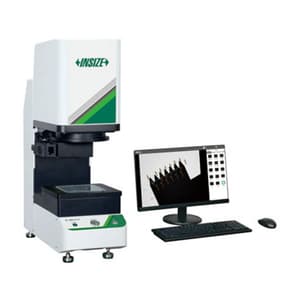

Insize 580 x 235 x 790 mm Quick Measurement System without Stitching, QMS-A110
Roll over the image to zoom in
Key Features
- Product Type: Optical Measuring
- Weight: 40 kg
- View Field Range: 100 x 80 mm
- Measurement Range (X x Y): 98 x 78 mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹16,29,625 (Incl. of all taxes)
₹13,81,038 + ₹2,48,587 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- One or more workpieces can be measured by one step operation
- Place workpieces at any position
- Focus and measure automatically
- Measurement of 999+dimensions and 200+workpieces
- QMS-A110 is suitable for measuring small flat parts
- QMS-A200 is suitable for measuring flat parts with low precision requirements and small surface sizes
- Note: Not Suitable for small sizes such as threads, Chamfers, etc.
Optimum Temperature (20°C±1°C):
- Within 80x64mm, on focal position and environment temperature at 20°C±1°C
- Within 120x88mm, on focal position and environment temperature at 20°C±1°C
- Within 40x28mm, on focal position and environment temperature at 20°C±1°C

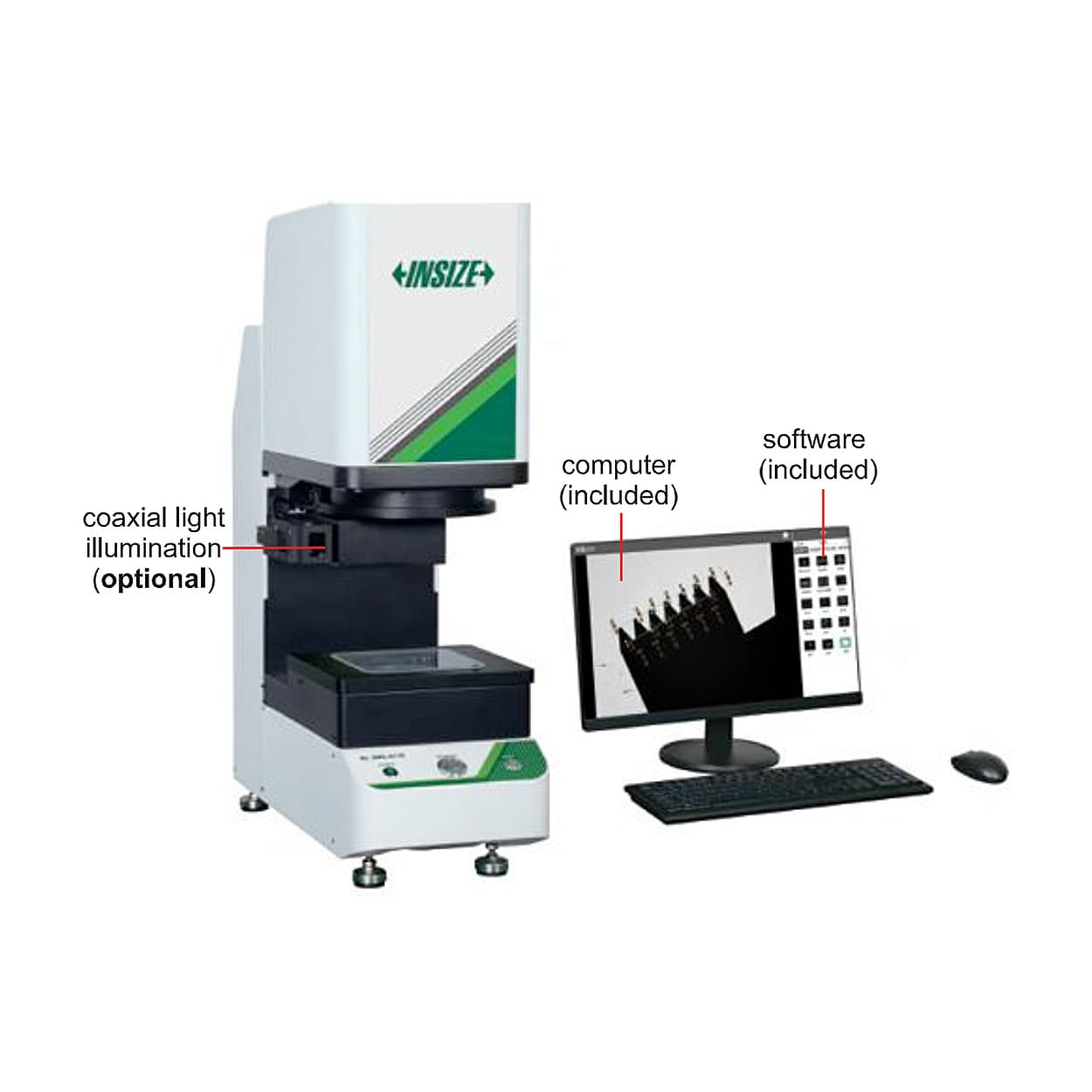

Package Content:
| Main unit | 1 pc |
| Computer | 1 pc |

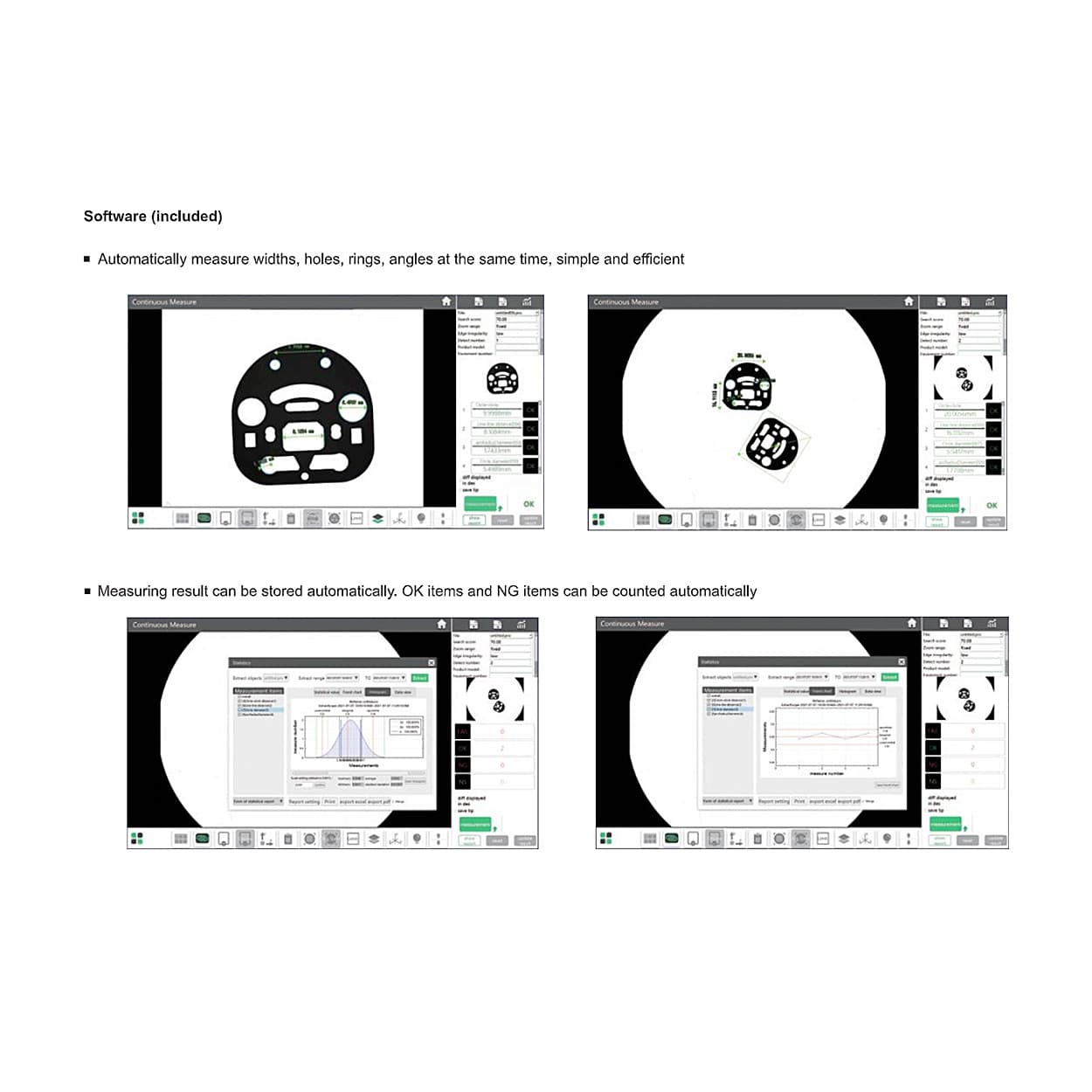

| Software | 1 pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Optical Lens | Low-distortion lens, Single-field telecentric Ø100mm |
|---|---|
| View Field Range | 100 x 80 mm |
| Measurement Range (X x Y) | 98 x 78 mm |
| Measurement Accuracy | ±3μm |
| Repeatability | ±1μm |
| Max. weight of Workpiece | 5Kg |
| Measurement Time | <2s |
| Measurement Data | 2D Measurement |
| Power Supply | 220V, 50Hz, 600W |
| Back Light | Telecentric Illuminator, Green Light |
| Ring Light | 4-Zone Circular White High Light Circular (Directional) / Low-angle Green Light (electric) |
| Coaxial Light (Optional) | Vertical Illuminator, White Light |
| Temperature | 20°C±2°C |
| Relative Humidity | 30% - 80% |
| Vibration | <0.002g, Less than 15Hz |
| Dimensions (L x W x H) | 580 x 235 x 790 mm |
