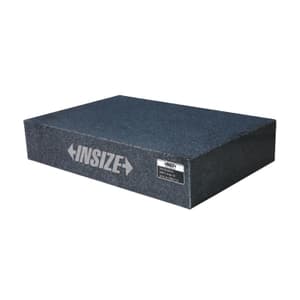

Insize 630 x 400 x 80 mm Granite Surface Plate (Grade 0), 6900-064
Roll over the image to zoom in
Key Features
- Product Type: Surface Plate
- Weight: 60 kg
- Length (mm): 630 mm
- Width (mm): 400 mm
- Height (mm): 80 mm
- Flatness: 7.0μm
- Max. Load: 130 Kg
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹38,588 (Incl. of all taxes)
₹32,702 + ₹5,886 GST (18%)
MRP was MRP ₹46,717
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Made of Indian granite, high hardness, free from deterioration or dimensional change over time, minimal changes in dimension due to temperature changes
- Meet DIN876, Grade 0 is for workshop
- Supplied with manufacturer inspection certificate
- Optional accessory: Stand for granite surface plate (code 6902), Jack for granite surface plate (code 6903)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

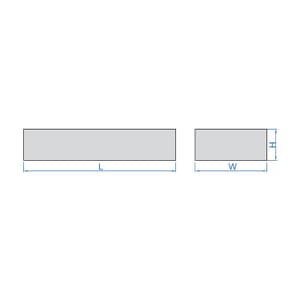

Specifications
| Length (mm) | 630 mm |
|---|---|
| Width (mm) | 400 mm |
| Height (mm) | 80 mm |
| Flatness | 7.0μm |
| Max. Load | 130 Kg |
| Grade | 0 |
| Shore Hardness | 94HS |
| Flexural Strength | 28MPa |
| Compressive Strength | 236MPa |
| Elastic modulus | 9.88 x 104MPa |
| Poisson's Ratio | 0.33 |
| Volume Density | 3000kg/m3 |
| Water Absorption Rate | 0.05% |
| Linear Expansion Coefficient | 6x10 -6/°C |
