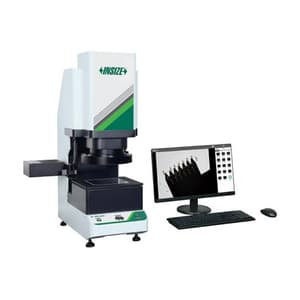

Insize 638 x 336 x 885 mm Quick Measurement System without Stitching, QMS-A220
Roll over the image to zoom in
Key Features
- Product Type: Optical Measuring
- Weight: 60 kg
- View Field Range: 150 x 110 mm (Wide View Field) / 50 x 35 mm (Small View Field)
- Measurement Range (X x Y): 148 x 108 mm (Wide View Field) / 48 x 33 mm (Small View Field)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹33,62,161 (Incl. of all taxes)
₹28,49,289 + ₹5,12,872 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- One or more workpieces can be measured by one step operation
- Place workpieces at any position
- Focus and measure automatically
- Measurement of 999+dimensions and 200+workpieces

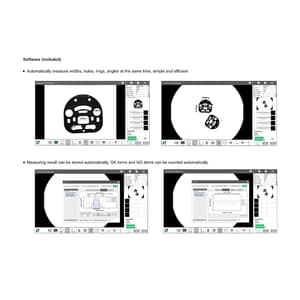

- QMS-A110 is suitable for measuring small flat parts
- QMS-A200 is suitable for measuring flat parts with low precision requirements and small surface sizes
- Note: Not Suitable for small sizes such as threads, Chamfers, etc.
Optimum Temperature (20°C±1°C):
- Within 80x64mm, on focal position and environment temperature at 20°C±1°C
- Within 120x88mm, on focal position and environment temperature at 20°C±1°C
- Within 40x28mm, on focal position and environment temperature at 20°C±1°C

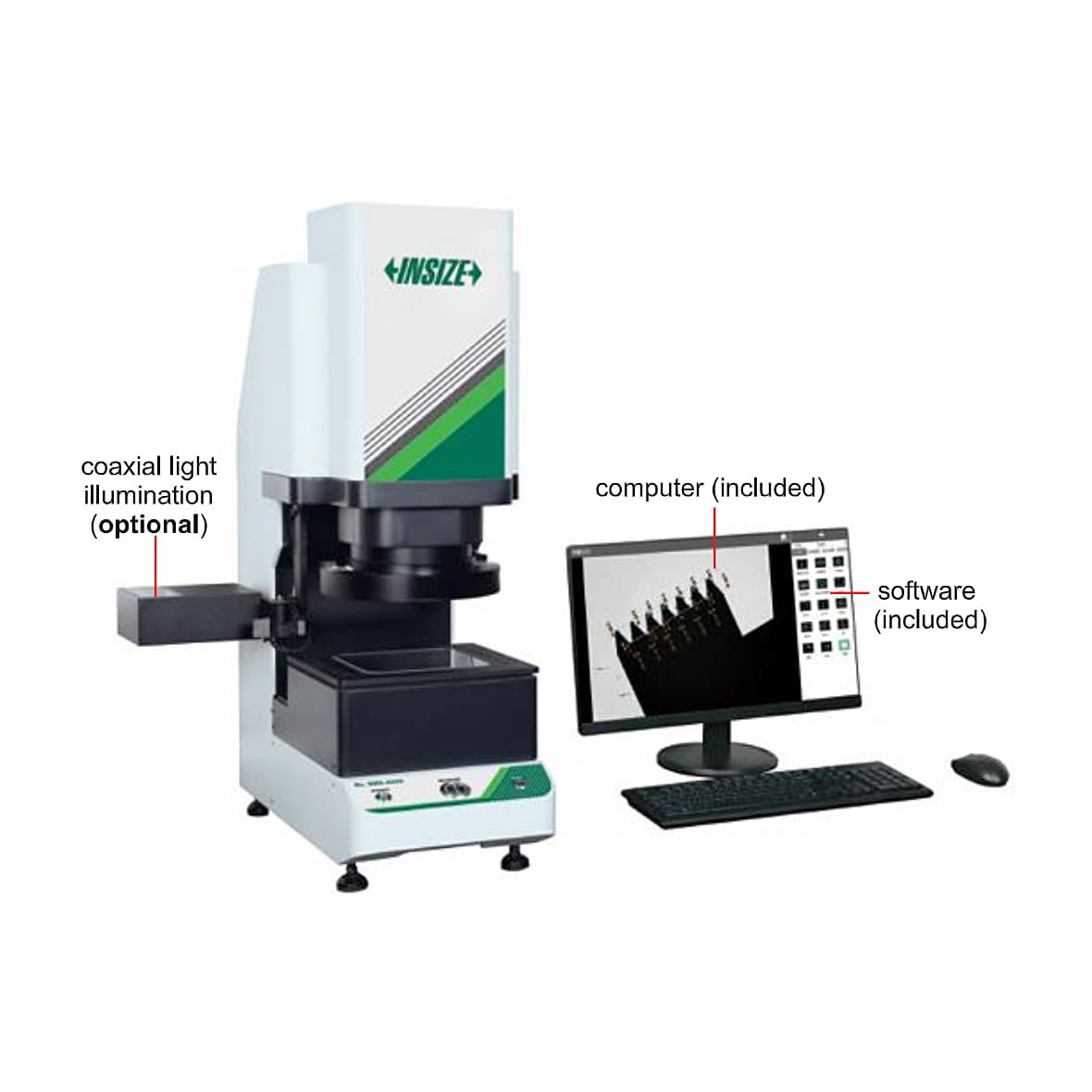

Package Content:
| Main unit | 1 pc |
| Computer | 1 pc |
| Software | 1 pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Optical Lens | Dual-field, Dual Telecentric, Low-distortion lens, Ø150 mm (Wide View Field), Ø50 mm (Small View Field) |
|---|---|
| View Field Range | 150 x 110 mm (Wide View Field) / 50 x 35 mm (Small View Field) |
| Measurement Range (X x Y) | 148 x 108 mm (Wide View Field) / 48 x 33 mm (Small View Field) |
| Measurement Accuracy | ±5μm (Wide View Field) / ±3μm (Small View Field) |
| Repeatability | ±1μm (Wide View Field) / ±0.5μm (Small View Field) |
| Max. weight of Workpiece | 5Kg |
| Measurement Time | <2s |
| Measurement Data | 2D Measurement |
| Power Supply | 220V, 50Hz, 600W |
| Back Light | Telecentric Illuminator, Green Light |
| Ring Light | 4-Zone Circular White High Light Circular (Directional) / Low-angle Green Light (electric) |
| Coaxial Light (Optional) | Vertical Illuminator, White Light |
| Temperature | 20°C±2°C |
| Relative Humidity | 30% - 80% |
| Vibration | <0.002g, Less than 15Hz |
| Dimensions (L x W x H) | 580 x 235 x 790 mm |
