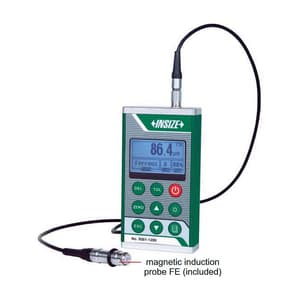

Insize Coating Thickness Gage, 9501-1200
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Weight: 340 g
- Memory: 500
- Output: USB
- Power Supply: 2x1.5V AA batteries
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹29,167 (Incl. of all taxes)
₹24,718 + ₹4,449 GST (18%)
MRP was MRP ₹35,312
Save 30%
3 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- A magnetic induction probe (FE) measures the thickness of the non-magnetic coating on the magnetic substrate.
- Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel) Coating: zinc, copper, chrome, tin, plastic, powder, paint (not for a nickel)
- Eddy current probe (NFE) measures the thickness of the non-conductive coating on non-magnetic substrates.
- Substrate: copper, aluminum, zinc, non-magnetic stainless steel Coating: plastic, powder, paint, anodizing
- Tolerance measurement
- Automatic power off.
Standard Delivery:
| Main unit | 1 pc |
| Magnetic induction probe (FE) | 1 pc |
| Zero calibration block for FE probe | 1 pc |
| Calibration Foils (50um, 100um, 250um, 500um, 1000um) | 1 pc |
| 1.5V AA battery | 2 pcs |
| Software and USB cable | 1 pc |

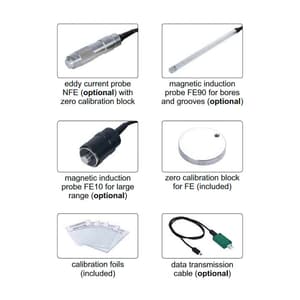

Optional Accessory:
| Data transmission cable | 9501-1200-SPC |
| Eddy current probe (NFE) with zero calibration block | 9501-1200-NFE |
| Magnetic induction probe (FE90) for bores and grooves | 9501-1200-FE90 |
| Magnetic induction probe (FE10) for large rang | 9501-1200-FE10 |
Specification:
| Accuracy | +/-(3%L+1)um (range 1250um) +/-(3%L+10)um (range 1250um) L is measuring the thickness in um |
| Resolution | 0.um (range 100um) 1um (range 100um) |
| Minimum Substrate Thickness | 0.5mm0.3mm 0.5mm 2mm |
| Minimum Measuring Area | 7mm, 5mm, 7mm, 40mm |
| Minimum Curvature Radius of Convex Workpiece | 1.5mm, 3mm 10mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Probe Type FE (included) | Magnetic induction probe |
|---|---|
| Probe Type NFE (optional) | eddy current probe |
| Probe Type FE90 (optional) | magnetic induction probe for bores and grooves |
| Probe Type Fe10 (optional) | magnetic induction probe for large range |
| Measuring range | 0~1250um / 500~10000um |
| Measuring Mode | Continuous and single |
| Memory | 500 |
| Output | USB |
| Power Supply | 2x1.5V AA batteries |
| Dimensions | 128x68x32 mm |
