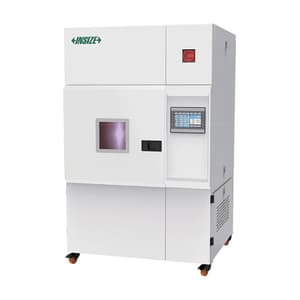

Insize Xenon Arc Lamp Aging Test Chamber (Daylight), XAT-A101
Roll over the image to zoom in
Key Features
- Product Type: Environmental Test Chamber
- Weight: 500 kg
- Light Filter: Daylight (Type S Boro + Type S Boro)
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹84,49,384 (Incl. of all taxes)
₹71,60,495 + ₹12,88,889 GST (18%)
Out of Stock
15 Business Days
1
–
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Highlights
- Suitable for paint and coating, automobile industry, plastic and rubber, construction material, electronic industry, etc.
- Simulate the full spectrum sun light, ensure the reliability of experimental data
- Optional irradiance calibrator for calibration of irradiance
- Feature water cooling lamp and drum-type structure to ensure uniform and stable irradiation
- Capable of freely programming 10 test programs and storing 6 preset international standard programs
- Support exporting test data with USB flash drive
- Lamp protect: Over-temperature of cooling water, low flow of cooling water, abnormality of lamp power
- Alarm function: large irradiance error, over temperature of chamber, over temperature of BPT or BST, large humidity error, spraying water shortage, high conductivity of purified water
- Cooling water system protect: monitor the conductivity of cooling water at real-time
- Radiation protect: xenon lam automaticall turns off when chamber door opens
Irradiance range:
- 0.25W/m² - 1.26W/m² (340m)
- 0.59W/m² - 2.76W/m² (420nm)
- 29W/m² - 141W/m² (300nm-400nm)
What's Included in this Package:
| Main Unit | 1 pc |
| Xenon Arc Lamp | 1 pc |
| Light Filter | 1 Set |
| Standard Sample Panel | 1 Set |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Xenon Arc Lamp | 6.5kW Water Cooling Long Arc Xenon Lamp |
|---|---|
| Lifetime of Lamp | 2000 hours for normal use |
| Light Filter | Daylight (Type S Boro + Type S Boro) |
| Exposure Area | 6500cm2 (63 - 65 pcs Standard Sample Panel 150 x 70mm) |
| Irradiance Monitoring Point | 340nm, 420nm, 300nm ~ 400nm |
| Temperature Range | RT~70°C |
| BPT/BST Range | RT~110°C |
| Humidity Range | 10 - 75%RH (Light) / 10 - 95%RH (Dark) |
| Irradiance Deviation | ±0.02W/m2 (340nm, 420nm), ±5W/m2 (300 - 400nm) |
| Temperature Deviation | ±2°C |
| Temperature Fluctuation | ±1°C |
| BPT/BST Deviation | ±3°C |
| Humidity Deviation | ±5%RH |
| Rotation Speed of Sample Holder | 1r/min |
| Humidifying Method | High-pressure Atomizing Humidification |
| Purified Water Consumption | 300L - 400L (Continuous Operation for 24 Hours) |
| Material | Stainless Steel Plate (Inside) / Corrosion-resistant Steel Plate With Powder Coating (Outside) |
| Operating Environment | 22 - 30°C (Temperature) / 30% - 85%RH (Humidity) |
| Power Supply | AC380V, 3Ø, 50Hz |
| Power | 9.5kW |
| Dimensions (L x W x H) | 780 x 780 x 800 mm (Chamber) / 1200 x 1200 x 1970 mm (External) |
