Karam HexaPod With Wheel, SA43(W)

KARAM offers Hexapod for entries in confined spaces which are below ground level and larger in hole size.Hexapod is available with wheels having locking feature for mobility and stability during usage.

Features:

• pecifically designed for entry, rescue and lifting into confined spaces having larger openings and below the ground level.
• Made from lightweight Aluminium and can be easily installed by a single user.
• Mobile Roller Pulley used as an anchor to provide user mobility over a span of maximum 2300 mm.
• Stopper to locate the anchorage point over the user’s head on desired location of user.
• Comes with three Aluminium Anchorage pulleys (AP 012SS) at the head of both the Tripods and Anchorage Pulley AP 017SS(BB) at centre for guiding the cable of rescue Winch.
• Can be used by two users simultaneously.
• Has two auxiliary eye bolts in both the Tripods each as an attachment points.
• Steel Support Shoes provided with rubber sole to increase friction and impart more stability.

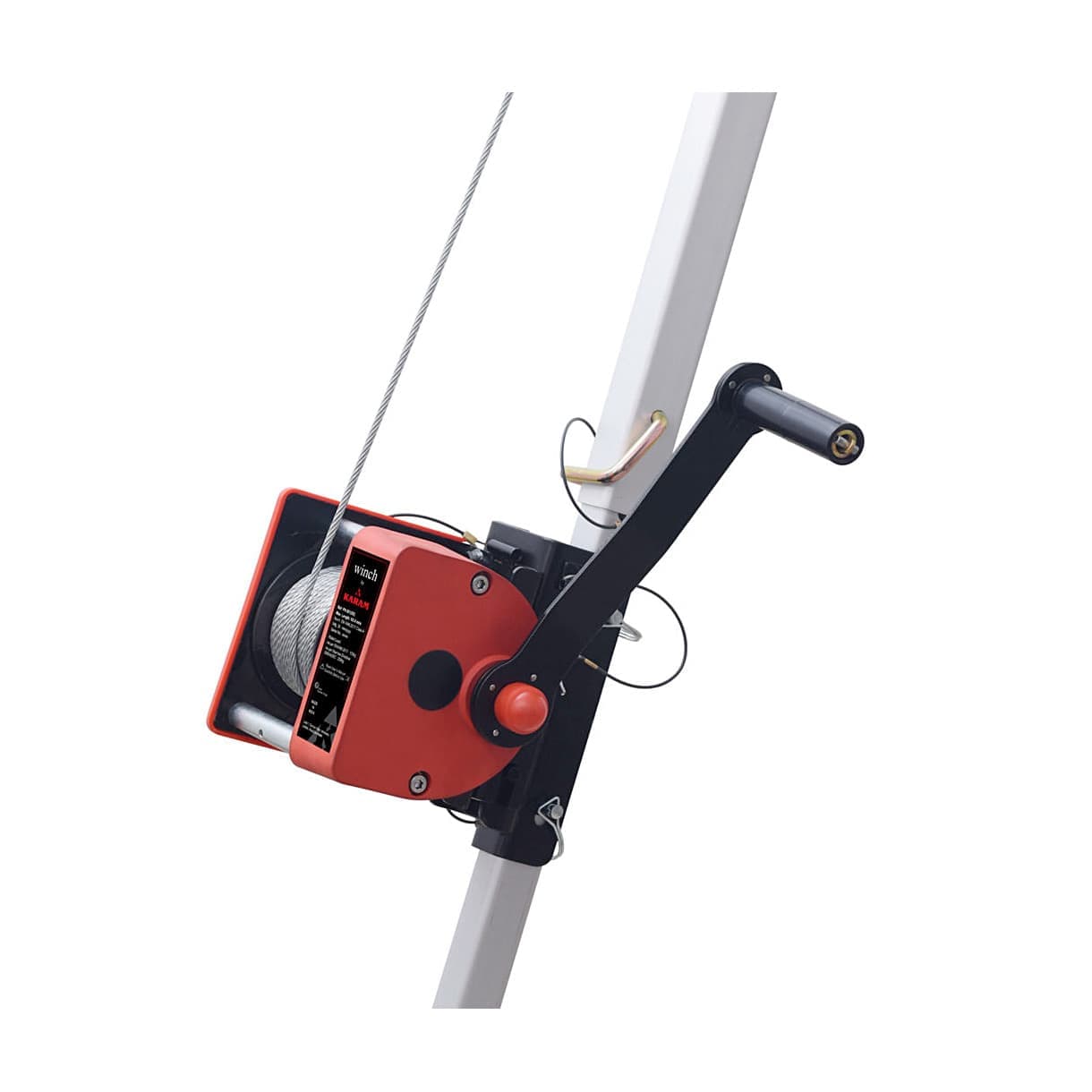

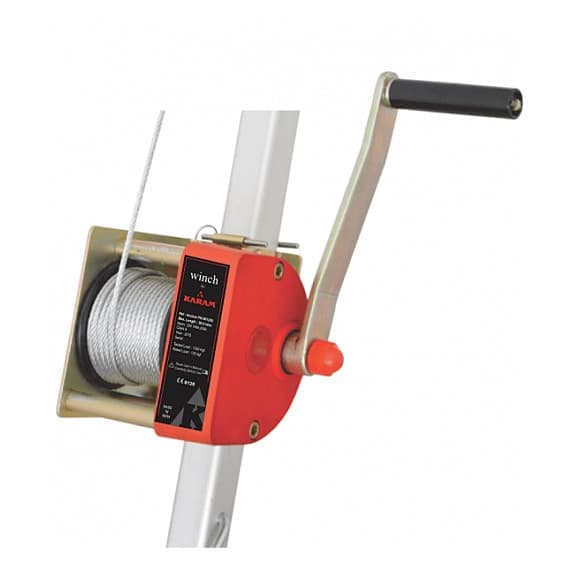

• Hexapod is provided with inbuilt fixture for attaching our winch PN 801A and Retrieval Blocks PCGS 10R, PCGS 20R, PCGS 25R and PCGS 30R.
• Certified to: EN 795:2012 Type B TS 16415:2013 Type B

Unique Features:

• Material: Tripod cast head and leg: Aluminium Alloy Rail supported welded sub assembly: High strength Alloy Steel Locking pins material: Stainless Steel
• Adjustable Height: 1.15m to 2.15m
• Max. Span Area: 2300mm
• Max. Load Capacity: 500kgs
• Weight: 49.32kgs

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
