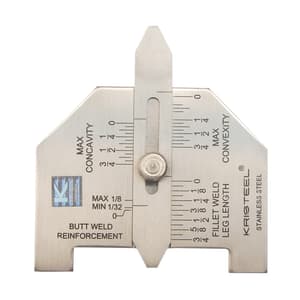

Kristeel 0 - 3/4 Inch Automatic Welding Gauge, AUWG
Roll over the image to zoom in
Key Features
- Product Type: Welding Gauge
- Range: 0 - 3/4 Inch
- Accuracy (±mm): 0.5 mm & 0.5°
- Graduations: Size Marked
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,266 (Incl. of all taxes)
₹1,073 + ₹193 GST (18%)
MRP was MRP ₹1,533
Save 30%
3 Business Days
1
90173010
Download Kristeel Shinwa CatalogueNot available
Highlights
Kristeel Shinwa is a leading global manufacturer of measuring instruments and tools, Photochemical machining, SMT Stencils, Textile Machinery and Real estate. This rugged gauge fabricated in stainless steel, will measure the important dimensions of weld preparations & of completed butt and fillet welds.
It is intended for general fabrication work in the shop or on-site and rapidly measures weld features like tolerance of convexity, tolerance of reinforcement, concavity and underfill, to determine size of fillet weld. The scales are graduated in metric units, It is packed in a protective case & an industry on leaflet is Provided.
Features:
- Check reinforcement
- Check the throat of the fillet weld
- Determine the leg size of the fillet weld
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Range | 0 - 3/4 Inch |
|---|---|
| Length (mm) | 76.2 mm |
| Width (mm) | 61 mm |
| Thickness (mm) | Base 2, Scale 1 |
| Accuracy (±mm) | 0.5 mm & 0.5° |
| Type | Rigid |
| Graduations | Size Marked |
| Least Count | 1/8 inch |
| Standard | EEC-II |
| Finish | Polish |
| Material | Stainless Steel |
