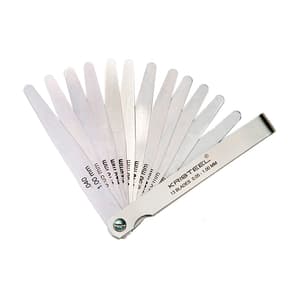

Kristeel 13 Blades Feeler Gauge, FG-13
Roll over the image to zoom in
Key Features
- Product Type: Other Engineering Gauges
- Range (mm): 0.05 - 1.0 mm
- Length (mm): 114.3 mm
- No. of Blades: 13
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹286 (Incl. of all taxes)
₹242 + ₹44 GST (18%)
MRP was MRP ₹346
Save 30%
1 Business Days
1
90173010
Download Product LeafletNot available
Download Kristeel Shinwa CatalogueNot available
Download Kristeel Shinwa CatalogueNot available
Highlights
Feeler gauges each Leaf is made in Imported material by Fine Blanking. Each Leaf have Permanent marked Leaf Thickness in Metric & English. This very precise feeler gauge is useful in Automobile to check gap in Cylinder and Piston. Also Useful in Tool room, Die manufacturer and General Engineering as a Shims. In Quality Department as a Master Gauge.
Features:
- This gauge is used to check flatness & gap between mating parts.
- (0.05, 0.1, 0.15, 0.2, 0.25, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1mm)
- Number of Blades - 13
- Range (mm) - 0.05 - 1.00 mm
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Type of Product | Feeler Gauge |
|---|---|
| Range (mm) | 0.05 - 1.0 mm |
| Length (mm) | 114.3 mm |
| Width (mm) | 12.7 mm |
| Accuracy (±mm) | T2 |
| Type | Flexible |
| No. of Blades | 13 |
| Graduations | Size Marked |
| Least Count | 0.038 |
| Standard | T2 |
| Finish | Fine Polished |
| Material | Spring Steel |
