Kristeel 3-1/2 Inch / 88 mm Set Square (30°-60°-90°), SS-A
Roll over the image to zoom in
Key Features
- Product Type: Rafter Square
- Length (mm): 88 mm
- Length (Inches): 3-1/2 inch
- Range (°): 30° - 60° - 90°
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,090 (Incl. of all taxes)
₹924 + ₹166 GST (18%)
MRP was MRP ₹1,320
Save 30%
3 Business Days
1
90173010
Download Product LeafletNot available
Download Kristeel Shinwa CatalogueNot available
Download Kristeel Shinwa CatalogueNot available
Highlights

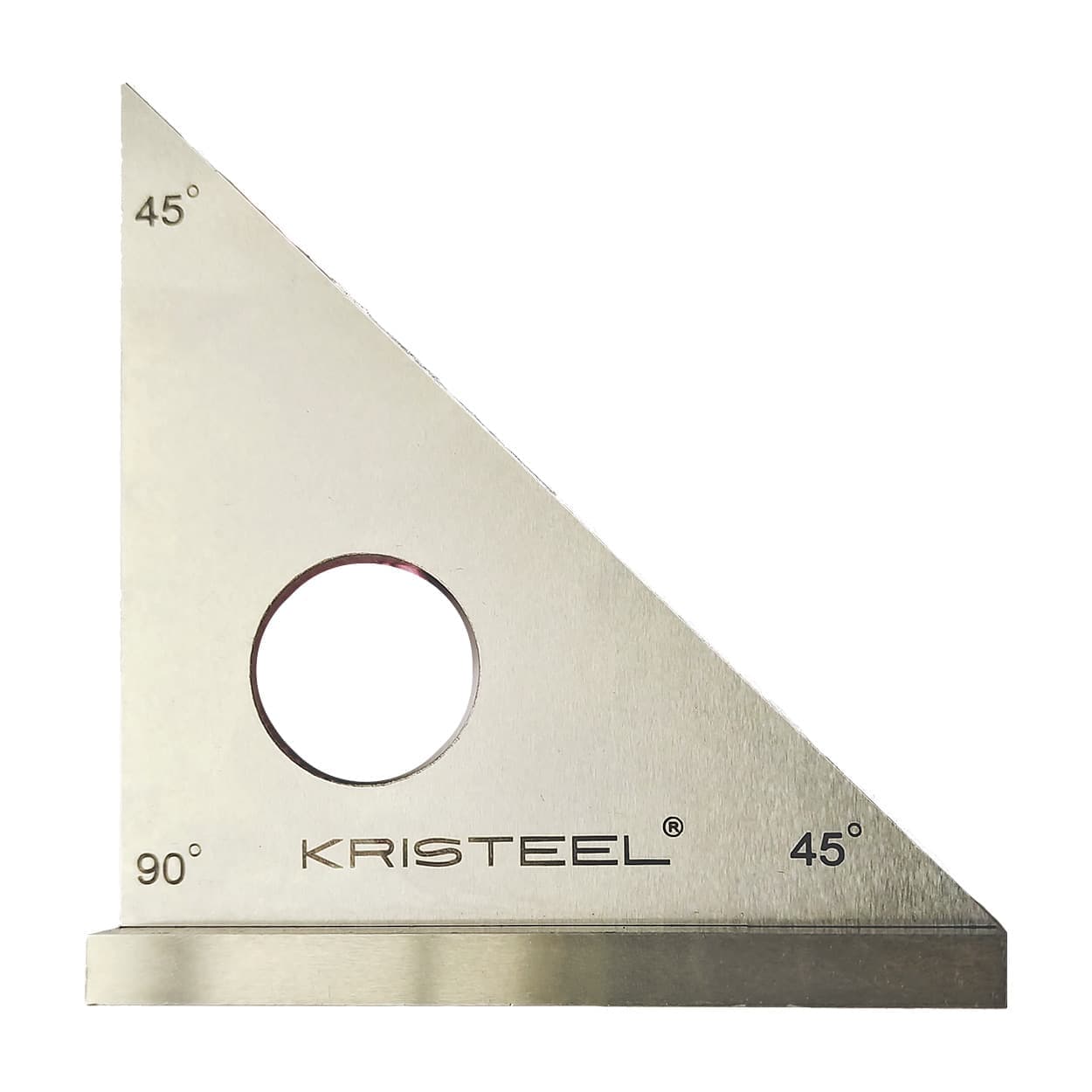

These set squares are available in two sizes i.e 30°-60°-90° and 45°-45°-90°. They have precision ground angles for convenient set-ups in tooling, production and inspection, holes can also be provided for easy mounting.
This gauge can be used as a master gauge to setting angles 30, 60, & 90 degrees and 45 & 90 degrees. This gauge is useful in Tool Room, Die Makers, Mould Makers, Woodworking Industry and Quality Control.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Length (mm) | 88 mm |
|---|---|
| Length (Inches) | 3-1/2 inch |
| Range (°) | 30° - 60° - 90° |
| Width (mm) | 51 mm |
| Thickness (mm) | 6.2 mm |
| Accuracy (±mm) | 15 min |
| Type | Rigid |
| Material | Tool Steel |
| Finish | Polish |
| Graduation | Angle Size Marked |
