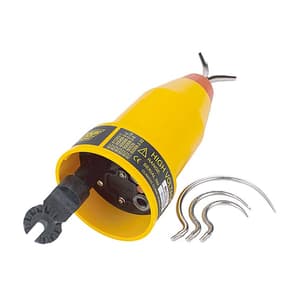

Kusam-Meco 11kV Capacitive High Voltage Detector (Contact), 213HVD

Capacitive High Voltage Detector Model 213HVD has been designed to meet the latest IEC Standards. It is self-starting and automatically activated when the High Voltage is applied to the contact electrode. It can also be manually armed before use by depressing the "TEST/ ARMING" Button. This detector is intended for use on sinusoidal (50 or 60Hz) High Voltage Systems.

Capacitive High Voltage Detector Model 213HVD systems voltage is 11kV. It is utilized to determine if a system is live or not, so that it may be safely earthed / grounded. Model 213HVD is designed for outdoor, but can be utilized indoors and in all weather conditions. It is housed in a rugged, reinforced nylon molded casing and is shock drop and vibration-resistant. Non-standard threshold voltages can be customized to suit application requirements.

The High Voltage Detector has a low battery detection which inhibits manual arming when the battery is too low. The Nylon case is easy to clean and maintain and the High Voltage Detector is supplied with the cleaning kit. A visual indication shows when the High Voltage Detector is armed. When armed, the Green Leds flashes about twice per second. When High Voltage is detected, the RED LED flashes about twice per second and the buzzer also buzzes intermittently.

Features:

• Excellent Shock Resistance
• Rugged Nylon moulding
• Auto-ON (when Voltage Detected)
• Excellent Drop Resistance
• Good Vibration Resistance
• Built-in Proving and self-test circuit
• Compatible with all link sticks
• High Bright Color Coded LEDS
• Works from a normal 9V battery
• Interchangeable Contact Electrode
• Use in All Weather Conditions
• Compatible with all link sticks
• Lightweight, Robust & Compact
• Suitable for indoor and outdoor use
• Self (Auto-On) or Manual Arming
• Easy access to batteries
• Customized threshold on demand
• Auto-Off (if no voltage detected)



Safety:

• Meets IEC 61243-1 IEC 60068-2-2 ; IEC 60068-2-6; IEC 60068-2-32 ; IEC 60529

Package Content:

• Voltage Detector
• Battery Instruction manual
• Carrying Case
