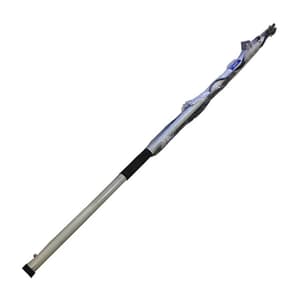

Kusam-Meco 132 - 220KV Single Phase Highly Insulated FRP Telescopic Earth & Discharge Rod, 132-220KV
Roll over the image to zoom in
Key Features
- Product Type: Discharge Rods
- Supply Voltage: 220 kV
- Phase: 1 Phase
- Total Sections: 03
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,125 (Incl. of all taxes)
₹15,360 + ₹2,765 GST (18%)
MRP was MRP ₹19,200
Save 20%
3 Business Days
1
39269099
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Highly insulated FRP Telescopic Earth/Discharge Rod Manufactured in fully automatic Pultrusion Plant having strong Electrical & Mechanical Strength.
Features:
- Material: FRP Pultruded
- Surface: Smooth and Glossy
- Design: Telescopic
- Assembled Length: 18 feet
- Process: Automatic Pultrusion Plant
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Supply Voltage | 220 kV |
|---|---|
| Phase | 1 Phase |
| Total Sections | 03 |
| Top Section Dia | 25 mm |
| Bottom Section Dia | 45 mm |
| Glass Content | 65% |
| Cover | Included |
| Cable Length | 25 sq. mm Copper Cable 10 mtr. Long |
| Clamp | Aluminium "C" Grounding Clamp |
| Locking | Push Button Type Locking System |
| Earthing | Die Cast Aluminium Earthing Instrument For 50mm Dia |
