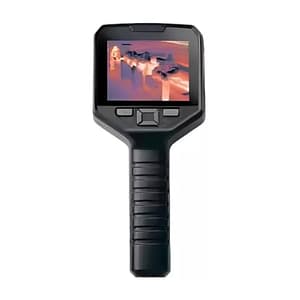

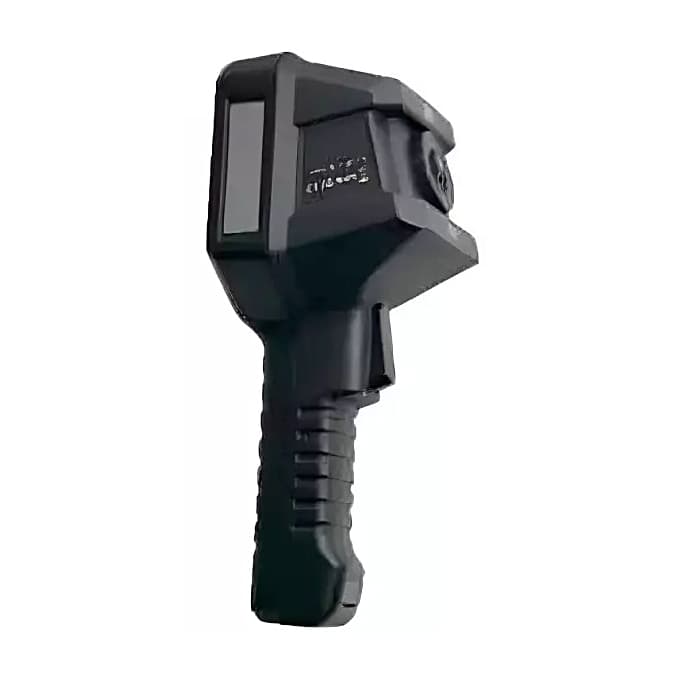

Kusam-Meco 220 x 160 Pixel Infrared Thermal Imaging Camera, KM 309
Roll over the image to zoom in
Key Features
- Product Type: Thermal Imaging Camera
- Weight: 420 g
- Infrared Image Resolution: 220 x 160 Pixel
- Frequency Band: 8 ~ 14μm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹61,360 (Incl. of all taxes)
₹52,000 + ₹9,360 GST (18%)
MRP was MRP ₹65,000
Save 20%
3 Business Days
1
90275090
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
It combines thermal imaging and visible light to display the target object imaging, which can measure all the pixel temperature of the target object, can quickly locate the abnormal temperature point, to reduce the users' diagnosc me.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Temperature measurement: Hoest, coldest, central point, zone area temperature measurement
- Color palette: Tyrian, white hot, black hot, iron, rainbow, glory, Hottest, coldest
- Image mode: Outline fusion, overlay fusion, picture-inpicture, infrared thermal imaging, visible light
- Baery Charge: Built-in battery, it is recommended to use +5V & ≥2A universal USB charger
- WiFi: Support App and PC soware data transmission
- Storage Capacity: Built-in memory, about 6.6G available, can store more than 20,000 pictures
- Picture storage mode: Simultaneous storage of infrared thermal imaging, visible light and fusion images
- File format: TIFF format, Support full frame pictures temperature analysis
- Windows & Android plaorm analysis soware: Provide professional analysis funcons to analyze full pixels temperature analysis
- Data and charging interface: USB Type-C (Support baery charging and data transmission)
- Open interface: Provide WiFi interface SDK for secondary development
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Infrared Image Resolution | 220 x 160 Pixel |
|---|---|
| Frequency Band | 8 ~ 14μm |
| Frame rate | 9Hz |
| NETD | 70mK@25°C (77°C) |
| Field of view | 35° (Horizontal), 26° (Vertical) |
| Lens | 4 mm |
| Temperature Range | -10°C ~ 600°C (14°F ~ 1112°F) |
| Accuracy | ±2°C or ±2% |
| Visible Resolution | 640 x 480 Pixel |
| Visible Frame Rate | 25Hz |
| LED Light | Yes |
| Display Size | 3.5 inch |
| Working Time | 5000mah Battery, >4 Hours in 25°C (77°F) |
| Operating Temperature | -20°C ~ +60°C (-4°F ~ 140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ 185°F) |
| IP Protection | IP54 (Waterproof & Dustproof) |
| Dimension (mm) | 230 x 100 x 90 mm |
