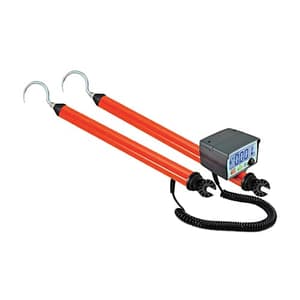

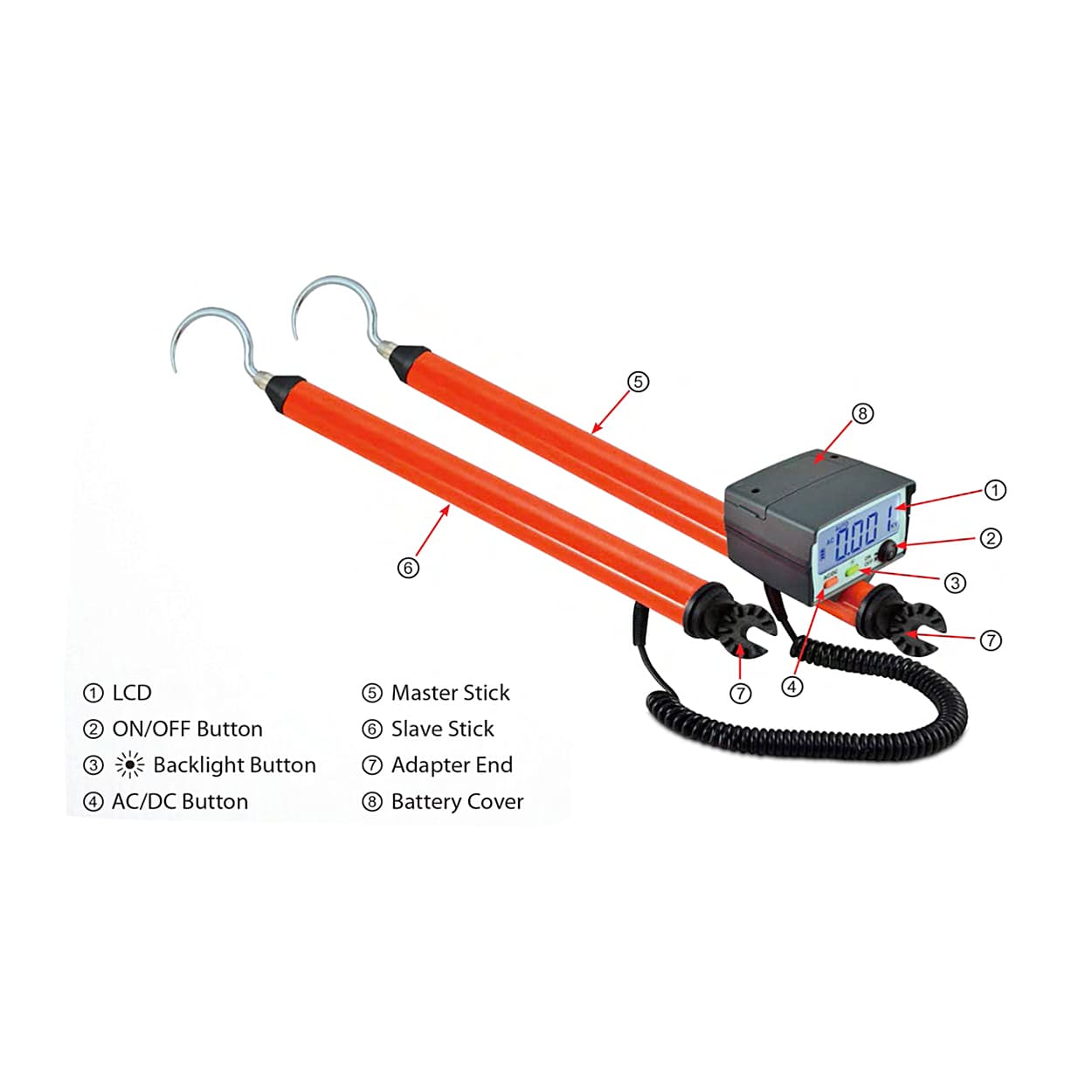

Kusam-Meco 4 - 50 kV Multi-Purpose Digital High Voltage Phasing Meter, KM-MPS-50K
Roll over the image to zoom in
Key Features
- Product Type: Phasing & Motor Rotation Meters
- Weight: 1.35 kg
- Display: 4000 Count LCD
- Input Impedance: 400 Mohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,20,502 (Incl. of all taxes)
₹1,02,120 + ₹18,382 GST (18%)
MRP was MRP ₹1,27,650
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- AC 50kV and DC 50kV measurement with direct reading.
- Auto-Ranging - AC: 4.000kV / 40.00kV / 50.0kV; DC: 4.000kV / 40.00kV / 50.0kV
- KM 50K must be connected with an approved hot stick (Optional).
- Check phases are "in-phase" or "out of phase".
- Polarity indication: Positive / Negative
- Backlight function.
- Auto power off
Technical Data:
| Ranges | Resolution |
| 4.000 kV | 0.001 kV |
| 40.00 kV | 0.01 kV |
| 50.0 kV | 0.1 kV |
| Accuracy (AC Voltage) | |
| 0 ~ 4 kV | ±2.5% ±0.1kV |
| 4kV ~ 50kV | ±2.5% ±2 dgt |
| Accuracy (DC Voltage) | |
| 0 ~ 20 kV | ±2.0% ±0.08 kV |
| 20kV ~ 50kV | ±3.0 % ±0.1 kV |
Package Content:
- Meter
- Instruction manual
- "Y" contact electrode × 2
- Test hook (contact electrode) × 2
- Insulated rod × 2
- Alkaline batteries
- Carry case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 4000 Count LCD |
|---|---|
| Input Impedance | 400 Mohm |
| Low Battery Indication | Multi-level |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -10°C ~ 50°C |
| Relative Humidity | 80% Max |
| Power Supply | 1.5V (AA) Alkaline Battery × 2 |
| Dimension (LxWxD) | 490 x 101 x 118 mm (Master Stick) / 490 x 35 x 35 mm (Slave Stick) |
