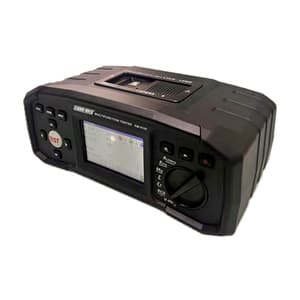

Kusam-Meco Multifunction Installation Tester, KM-5100

Multifunction Tester for verification of electrical safety of installations according to DIN VDE 0100 and EN 61557. This is an all-in-one device with 3.5″ TFT colour display, covering the measurements you need. It is fast, Saves time and safe.

Features:

• Loop resistance
• Internal network resistance
• Measurement of short circuit current( Loop Impedance)
• Low resistance and continuity
• Insulation
• RCD / FI for types A, AC, B, B+, F.
• RCD / FI for electric vehicles charging stations (6 mA DC)
• TRMS Voltage, Rotary field and frequency
• Earth Resistance (optional)
• Memory for 1000 measurement readings and PC software to create a test certificate (optional)
• Charging of batteries inside tester (optional)
• RCD testing
• RCD Type: G, S (Contact voltage / Trip-out time / Trip-out current)
• Fault loop impedance and prospective faul (Zloop L-PE, Ipfc / Zloop L-PE RCD, Ipfc / non trip subfunction / Loop-Rs)
• Line impedance and prospective short-circuit current (Voltage drop detection)
• Memory and Reporting (Excel-Export)
• Rechargable batteries & charging "on-board"
• Ready for external probe with button
• Earth Resistance: Re (3-wire and 4-wire) / Ro

Special Functions:

• Automatic polarity change
• Calibration date reminder (hidden functionCal-Lab)
• FW update per USB
• API enabled (extra configuration service required)

Package Content:

• 1x Multifunction Installation Tester
• 3x Test leads stackable (1 m),
• 3x Schuko-plug test cable Test probes
• 3x Alligator clips
• 1x Instruction manual
• 1x shoulder strap
• 1x Carrying bag & strap
• 1x USB cable
• 1x Power adapter for charging
• 6x Rechargable batteries

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
