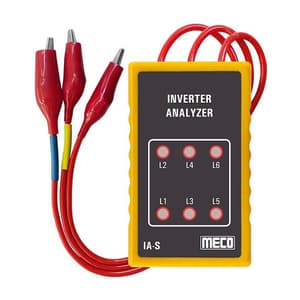

Meco 60 - 600V AC Inverter Analyzer (Non-Contact Voltage Detector), IA-S

The Inverter Analyzer is suitable to check all inverter products. It can be used to analyze the faults in Air Conditioners (ACs), Refrigerators etc. It helps to diagnose whether there is a Compressor failure or a PCB failure.

Features:

• Helps to Diagnose Fault in Inverter Based Products
• Rugged, Handy, Easy and Safe to Use
• Color Identified Test Probes with Insulated Crocodile Clips for
• R, Y, B Connections
• LED-Based Instant Diagnosis

Working:

In case of a breakdown,

• Step 1: Turn the power off.
• Step 2: Remove the connections between the Compressor and PCB
• Step 3: Check and ensure that the charged voltage of the built-in smoothening electrolytic capacitor drops to < 10V DC or below while carrying out any service.
• Step 4: Connect the Inverter Analyzer instead of the Compressor by connecting the fast-on terminals of the PCB to the Crocodile Clips of the Inverter Analyzer (R, Y and B respectively). Be careful not to touch the Crocodile Clips (R, Y, B) with each other
• Step 5: Turn the power on and operate the A.C. or Refrigerator
• Step 6 (Diagnosis): When all LEDs of the Inverter Analyzer are lit uniformly, it means the PCB is proper and Compressor is faulty. When any / all LEDs are not uniformly lit, it means there is a fault in the PCB.
• Step 7: On completion of diagnosis, be sure to switch off the power. Then remove the connections of the Crocodile Clips of the Inverter Analyzer. Re-connect the faston terminals of the PCB to the Compressor firmly. Loose connections may lead to the burning of the terminals
