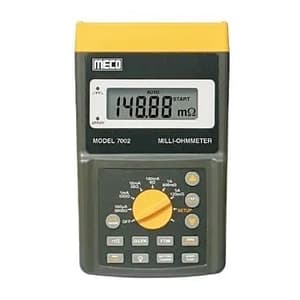

Meco Milli - Ohmeter with PC Interface, 7002
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Weight: 1125 g
- Basic Accuracy: 0.25%
- Max. Test Current: 5A (120mO)
- Battery Charging time: 10 Hrs
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹85,260 (Incl. of all taxes)
₹72,254 + ₹13,006 GST (18%)
MRP was MRP ₹85,005
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Milli - Ohmeter with PC Interface via RS232 - USB Communication and User Software, Test Current : 5A DC (120m), Four Terminal Kelvin Measurement, Manual / Auto Range, Measurement of Resistive and Inductive Materials, Setting for HI, LO & PASS Readings, Memory of 3000 Measurements Data, Programmable HI-LO Alarm with memory of 20 Data, Cable Length Measurement in feet & meters, User Interface Software for PC Communication viaRS232C (to USB Bridge) cable, 1 Set of Kelvin Clips
Features & Benefits:
- Basic Accuracy 0.25%
- Max. Test Current : 5A (120mV)
- Manual or Auto Range
- Four Terminal Kelvin Measurement
- 6 Ranges with 1mV Best Resolution
- Measurement of Resistive and Inductive Materials
- Setting for HI, LO & PASS Readings
- Memory of 3000 Measurements Data
- Programmable HI-LO Alarm with memory of 20 Data
- Large LCD with Backlight & HOLD Function
- Low Power Consumption
- Battery Operated with AC Adaptor
- Low Battery (Voltage) Alarm
- LED indication for Invalid Resistance Measurement
- Cable Length Measurement in feet & meters
- User Interface Software for PC Communication viaRS232C (to USB Bridge) cable
- Built-in Battery Changing Circuit & Calender Clock
General Specifications:
- AC Adaptor: Input 110V or 220V AC, Output DC 15V/1-3A
- LCD Display & 5/6 Digit+ Backlight
- Dimension: 260 x 158 x 70mm (approx.)
- Weight: 1125gms Including Battery (approx.)
- Environment: 0°C -50°C ≤85% RH(Operation) ,20°C -60°C ≤75% RH (Storage)

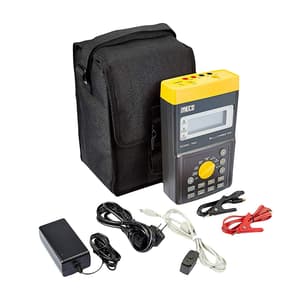

Accessories:
- Users Manual x 1
- Software Manual x 1
- Software CDx1
- RS232C (to USB Bridge) Cable x 1
- AC Adaptor x1
- 11.1V Rechargeable Lithium Battery (1600mAh) x 1 for 7002 1
- 1 Set of Kelvin Clips Carrying Bag
- Optional: 4 Wire Test Leads, Double Prods Alligator Clips
Specifications:
| AC Adaptor: Input 110V or 220V AC, Output DC 15V/1 to 3A |
| Battery Charging time: 10 hrs |
| Display: 4 5/6 Digit LCD Display With Backlight |
| Electrical Specification: 23 Degree +/- 5 Percent |
| Environment: Operating - 0 to 50 Degree C Greater Than or Equal to 85 Percentage RH, Storage: - 20 to 60 Degree C Greater Than or Equal to 75 Percentage RH |
| Max. Test Current: 5A (120 mOhm) |
| Resistance: Manual Range - 1 to 8, 5 to 32, 10 to 120 MOhm, Auto Range - 1 to 8, 8 to 120 m Ohm |
| Resolution: Manual Range -10 Micro ohm, Auto Range - 1 to 10 MOhm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Basic Accuracy | 0.25% |
|---|---|
| Max. Test Current | 5A (120mO) |
| Memory | 3000 |
| Resistance Auto | 1 to 8, 8 to 120 m Ohm |
| Resistance Manual | 1 to 8, 5 to 32, 10 to 120 MOhm |
| Resolution | 10 Micro ohm , 1 to 10 MOhm |
| Battery Charging time | 10 Hrs |
| Dimensions | 257 x 155 x 57 mm (approx.) |
