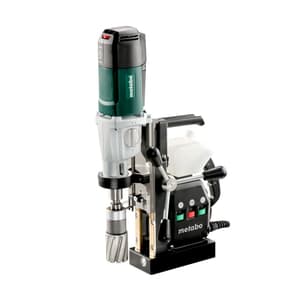

Metabo 1200W Magnetic Core Drill, MAG 50
Roll over the image to zoom in
Key Features
- Product Type: Magnetic Core Drill
- Weight: 12.7 kg
- No Load Speed: 100 - 250 / 200 - 450 rpm
- Rated input power: 1200 W
- Maximum drilling depth: 50 mm / 2 "
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,50,835 (Incl. of all taxes)
₹1,27,826 + ₹23,009 GST (18%)
MRP was MRP ₹1,87,980
Save 32%
1 Business Days
1
–
Download Product LeafletNot available
Download Metabo CatalogueNot available
Download Metabo CatalogueNot available
Highlights
- Large stroke, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Robust Metabo marathon motor with internal wiring for long service life
- Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
- Clockwise/anti-clockwise rotation with thread cutter
- Durable two-speed gearbox with oil bath lubrication for ideal speeds
- Integrated coolant container for easy to dose internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
- Protective circuit starts motor only if the magnet is activated
- Overload protection: protects the motor from overheating
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable slide for comfortable tool change
- Handle for easy carrying and lifting
- Resistant mains cable (5 m) with rubber shroud.
Vibration
- Drilling in metal - 2.5 m/s²
- Uncertainty of measurement K - 1.5 m/s²
Noise emission
- Sound pressure level - 79 dB(A)
- Sound power level (LwA) - 92 dB(A)
- Uncertainty of measurement K - 3 dB(A)
Scope of Delivery :
- Industrial holder for Weldon shank 19 mm
- Safety strap
- Hexagon socket wrench SW 5
- Swarf protection guard
- Transport case
- Ejector pins 75 and 100 mm
- MK 2 drift key.
 |
Metabo Marathon-motor With patented dust protection for long service life |
 |
Vario Tacho Constamatic (VTC) Full-wave Electronics with Thumbwheel for working at customised speeds to suit the application material and speeds that remain almost constant, even under load |
 |
Overload protection Protects the motor from overheating |
 |
Metabo 3 years XXL warranty We give you an extra XXL warranty on all our products. Simply have your product registered online within 4 weeks of purchase and your standard guarantee is extended to three years. |
The machine shown may differ in equipment and technical details depending on the configuration.Kindly pay attention to delivery scope and product description.Accessories included only if listed in the delivery scope.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| No Load Speed | 100 - 250 / 200 - 450 rpm |
|---|---|
| Rated input power | 1200 W |
| Max. drill-Ø with core drill | 50 mm / 2 " |
| Output power | 620 W |
| Max. drill-Ø with spiral drill | 20 mm / 3/4 " |
| Maximum drilling depth | 50 mm / 2 " |
| Revolutions at rated load | 250 / 450 rpm |
| Thread cutting | M 16 |
| Torque | 90 / 50 Nm // 797 / 443 in-lbs |
| Bit retainer | Morse taper MK 2 / Weldon shaft 19 mm (3/4") |
| Cable length | 5 m / 16 ft |
| Max. depth of feed | 160 mm / 6 5/16 " |
| Max. magnetic holding force | 12250 N |
| Order no | 600636500 |
| EAN | 4007430238214 |

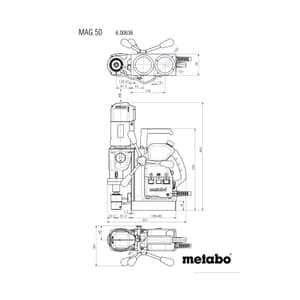

| Dimensions of the magnet base | 90 x 190 mm / 3 9/16 x 7 1/2 " |
| Height carriage lowest position | 457 mm / 18 " |
| Height carriage topmost position | 610 mm / 24 " |
