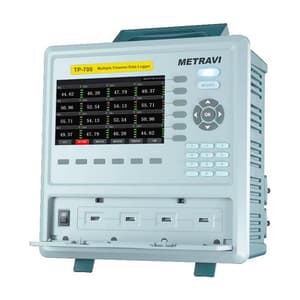

Metravi 100V - 240V AC / 12 - 25V DC Two Way Multi-Channel Data Logger With IoT, TP-700

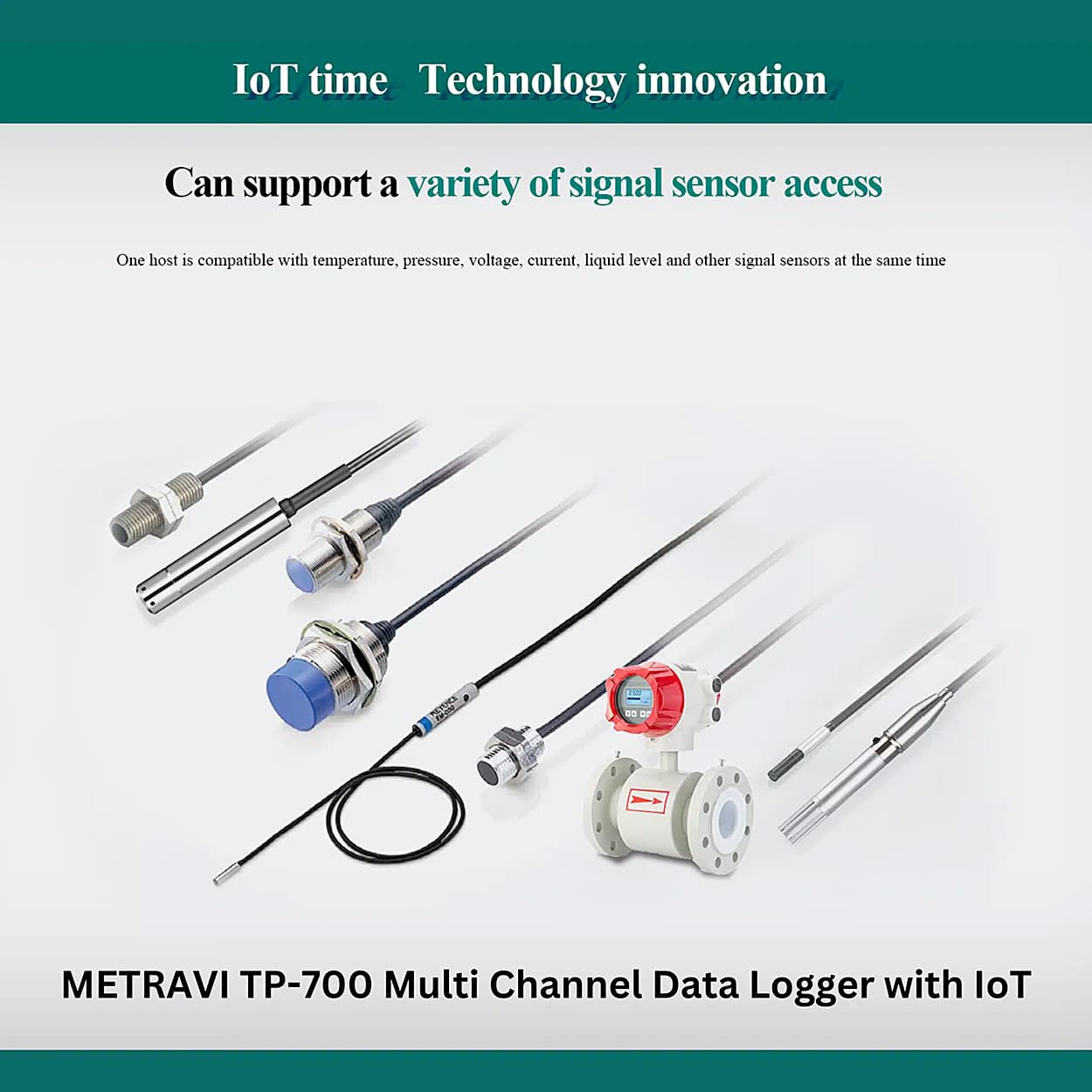

The Metravi TP-700 Multiple Channel Data Logger features high-definition display graphs, digital graphs, bar graphs, data overview, etc. The interface is simple and intuitive, and the settings and operation is convenient. It enable simultaneous testing of temperature, voltage, humidity, pressure, flow, liquid level, current, frequency, vibration, speed, etc.

8 groups of different modules can be inserted for various data acquisitions and functions, like relay output, power supply and wireless transmission, etc. A single computer software can be connected to multiple recorders in the same LAN through the network cable.

Features:

• 0.1S high-speed acquisition, resulting in smoother curves
• Strong anti-interference ability, which results in the highest accuracy
• 7″ Touchscreen, colour display
• 8 groups of different modules can be inserted to realize data acquisition, relay output, power supply, and wireless transmission, etc.
• Data logger RS485 can connect external acquisition modules and increase number of channels*

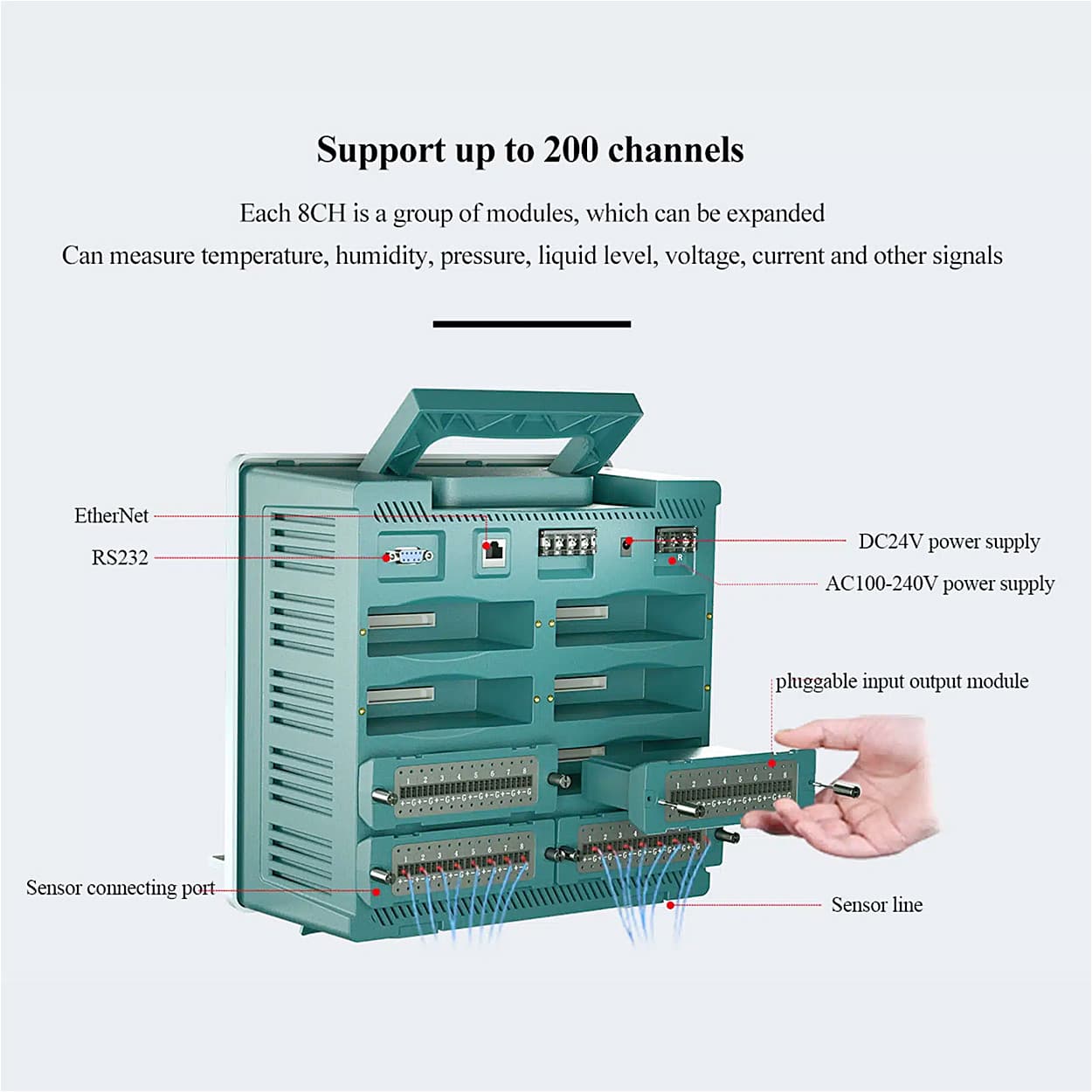

• Up to 200 Channels*

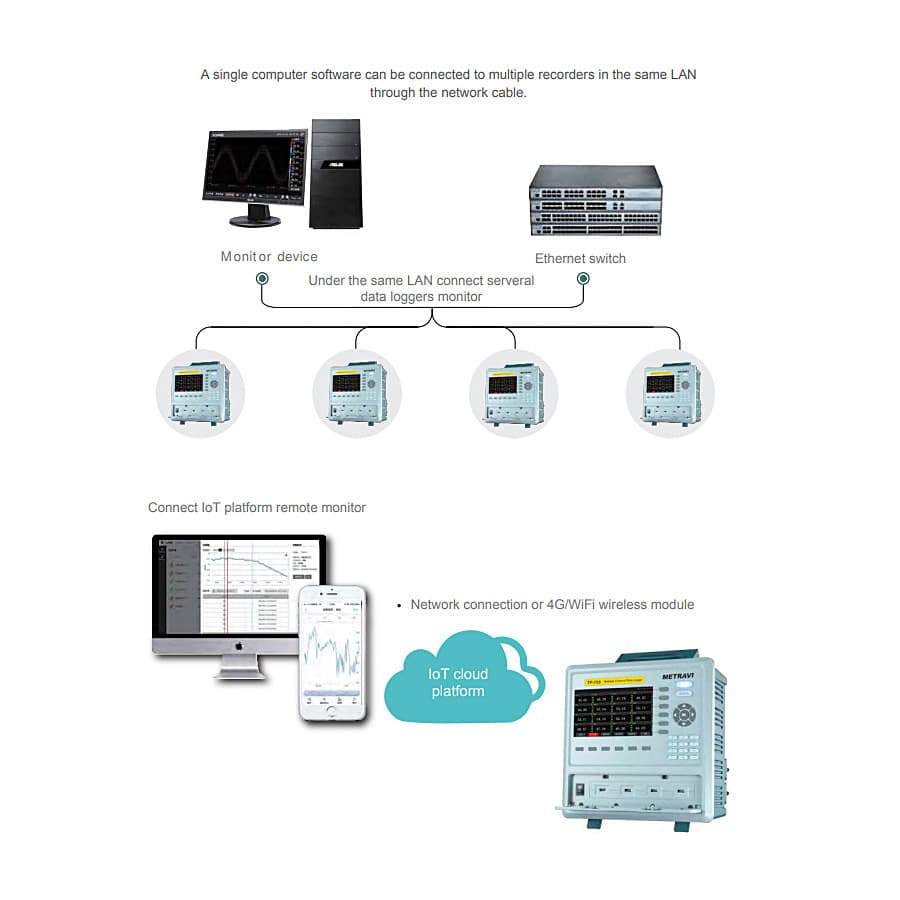

• A single computer software can be connected to multiple recorders in the same LAN through the network cable.
• Can be connected to IoT platform remote monitor

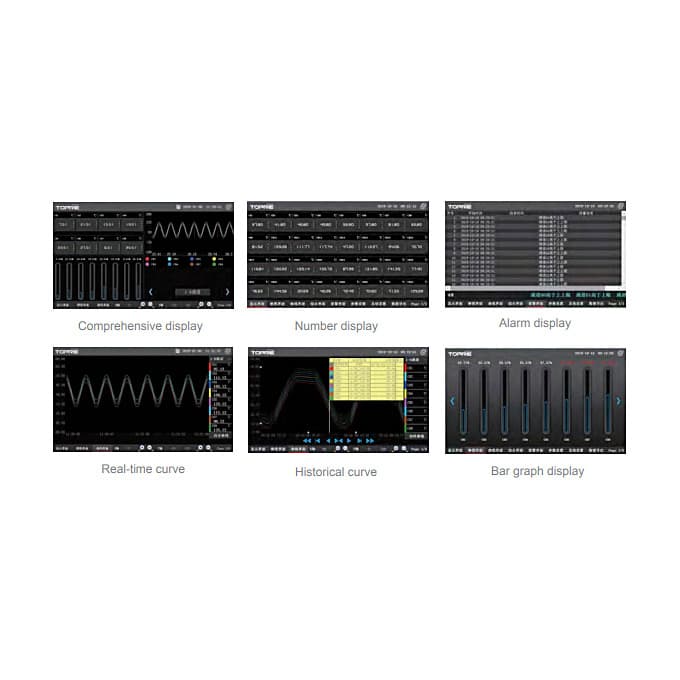

• Displays: Comprehensive, Number, Alarm, Real-time curves, Historical curves, Bar-graph

Applications:

• Battery R&D Evaluation Test: simultaneous measurement of temperature, voltage & current.
• Automobile Testing: Evaluate whether the heat generated inside the motor is effectively cooled, and measure distributed temperature of the motor.
• Test Home Appliances: Collect and record data such as temperature, humidity, flow, and power consumption for washing machines, freezers, and wine coolers, etc.

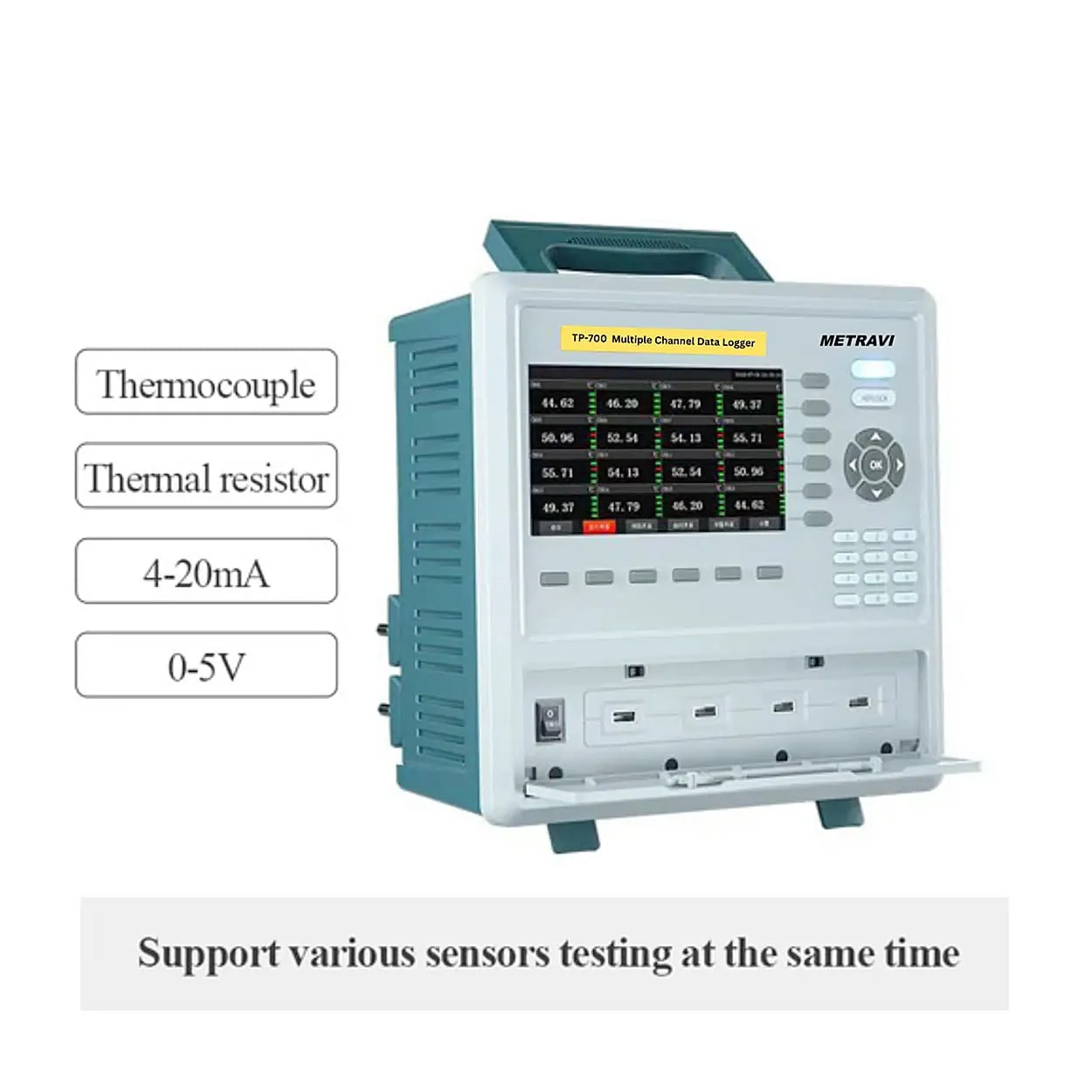

Input Signals:

• Thermocouple: K, T, J, B, N, R, E, S, WRE5-26, WRE3-25
• Thermal resistance: PT100, PT1000
• Current (DC: 4~20mA, 0 ~20mA)
• Voltage (DC: 0~5V, 0~10V, ±20mV, ±100mV)
