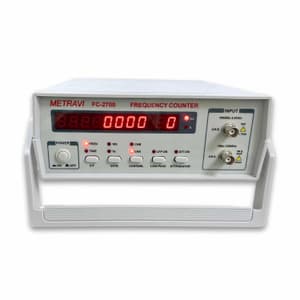

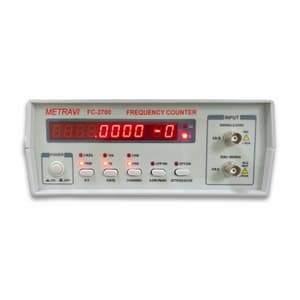

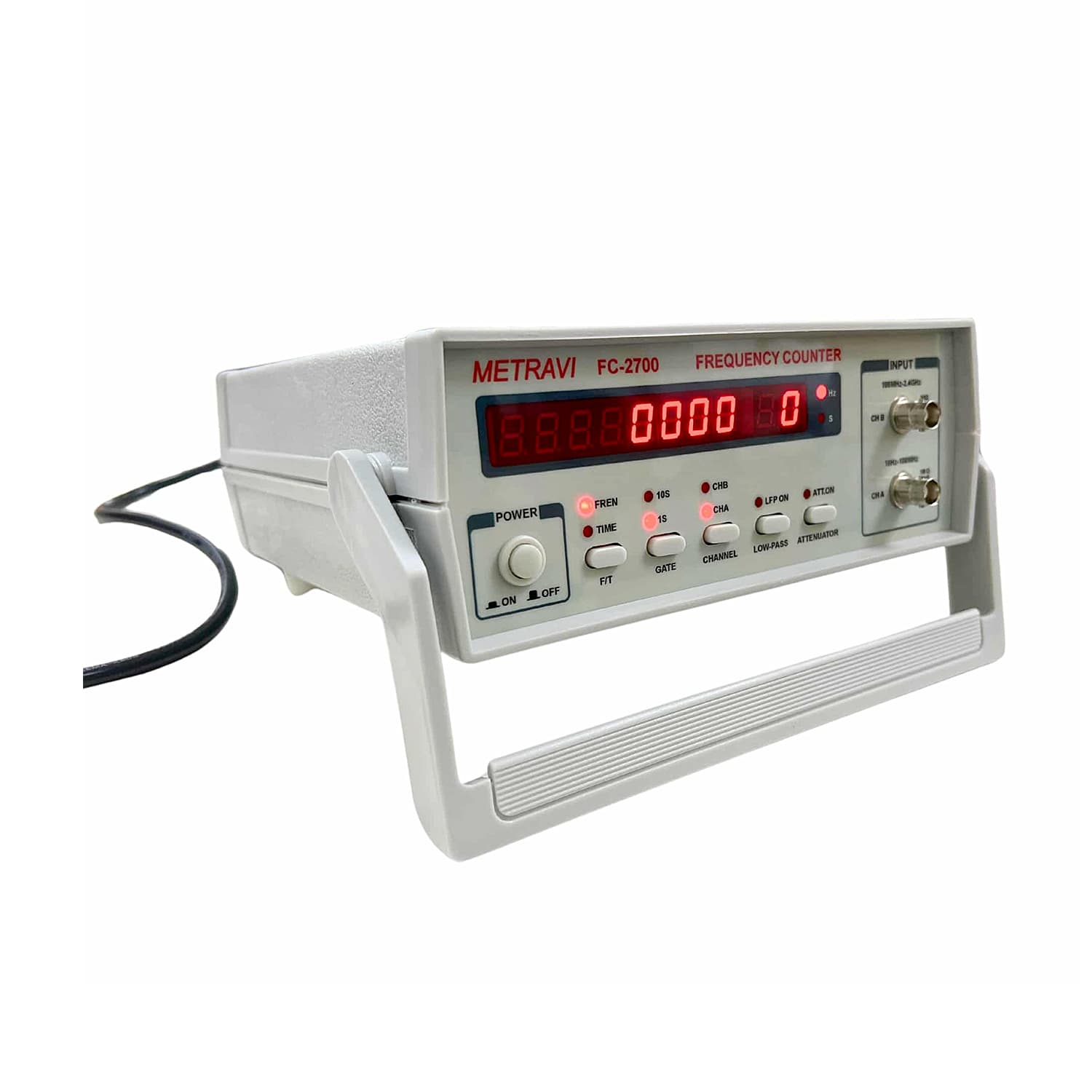

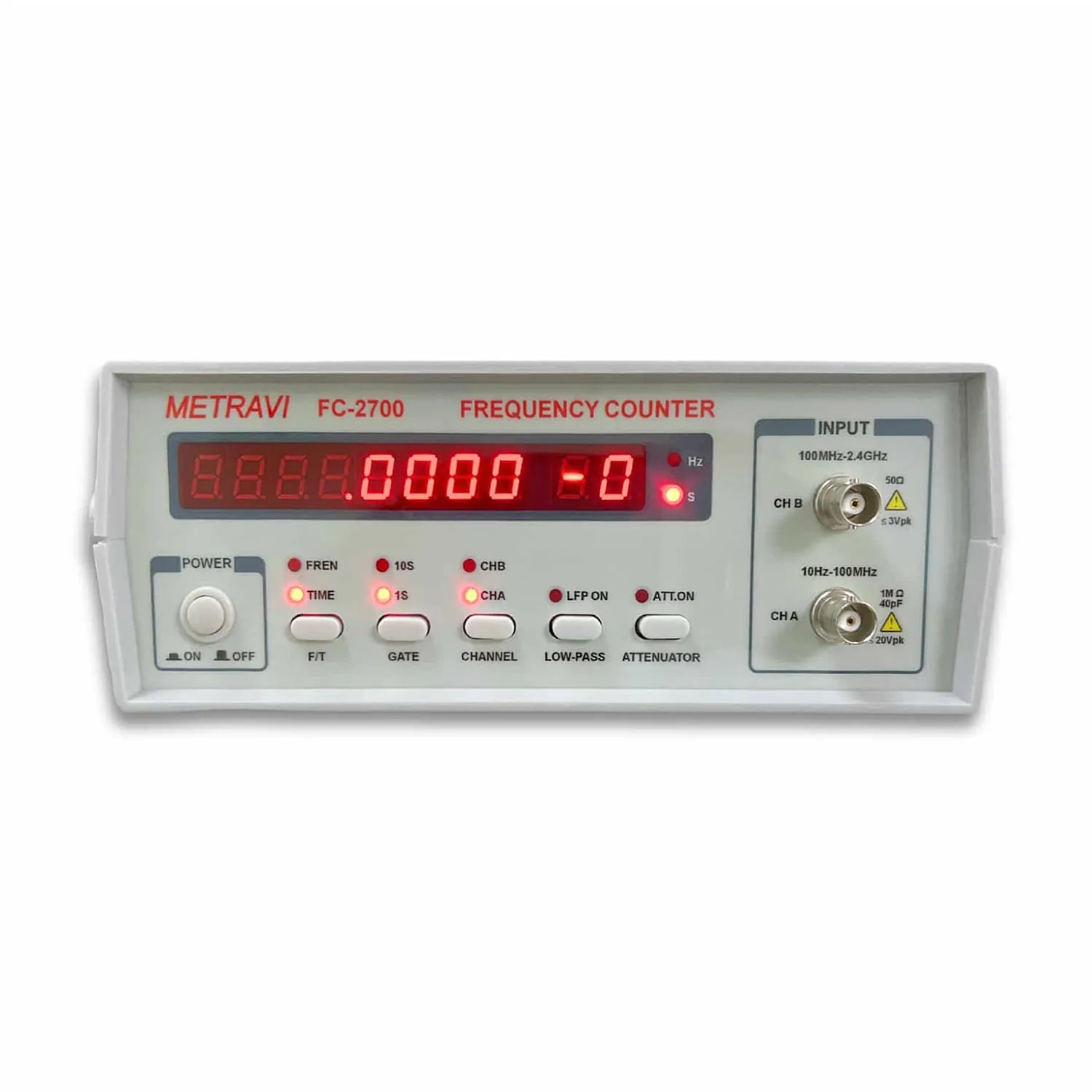

Metravi 10Hz - 2.4GHz Digital Frequency Counter, FC-2700
Roll over the image to zoom in
Key Features
- Product Type: Frequency Counter
- Weight: 1.5 kg
- Frequency Range: 10Hz~2.4GHz
- Period Measurement: 100ns ~ 1s
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,724 (Incl. of all taxes)
₹9,088 + ₹1,636 GST (18%)
MRP was MRP ₹13,365
Save 32%
5 Business Days
1
90303100
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The new Metravi FC-2700 Frequency Counter has uses intellectualised measurement with the help of of microprocessor technology. It features reciprocal counter technology, high measurement accuracy, broad frequency measurement range (10Hz ~ 2400MHz), high sensitivity and selectable gate time. The front circuit of this counter has low pass filter \(LPF) and attenuator. It is suitable for Scientific Research and Manufacture of Posts and Telecommunications, Communications, Radio and TV, College, Educational Institute and Factory.
Features:
- Uses reciprocal counter technology
- High measurement accuracy
- Broad frequency measurement range
- Fast measurement speed
- High sensitivity
- Uses MCU technology for period, frequency measurement
- Intellectualised management
- High reliability and ascendant performance/ price ratio
- Uses LSI, CPLD to reduce component elements and reliability gets improves greatly
- MTBF≥10000h
- Neat appearance, small, light and portable
| CH - A Range | 10Hz~100MHz |
| CH - A Accuracy | ±time base error ± trigger error ± LSD |
| CH- A Input Sensitivity | 50mV rms |
| CH - B Range | 100MHz~2.4GHz |
| CH- B Accuracy | ±time base error ± trigger error ± LSD |
| CH - B Input Sensitivity | 30mV rms |
| CH - B Impedance | 50Ω |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency Range | 10Hz~2.4GHz |
|---|---|
| Period Measurement | 100ns ~ 1s |
| Input Impedance | 1MO (CHA) / 50MO (CHB) |
| Input Coupling Mode | AC |
| Waveforms Adaptability | Sine, Triangle & Pulse |
| Period Measurement Error | ±time base error ±trigger error ± LSD |
| Display | 8+2 bits LED |

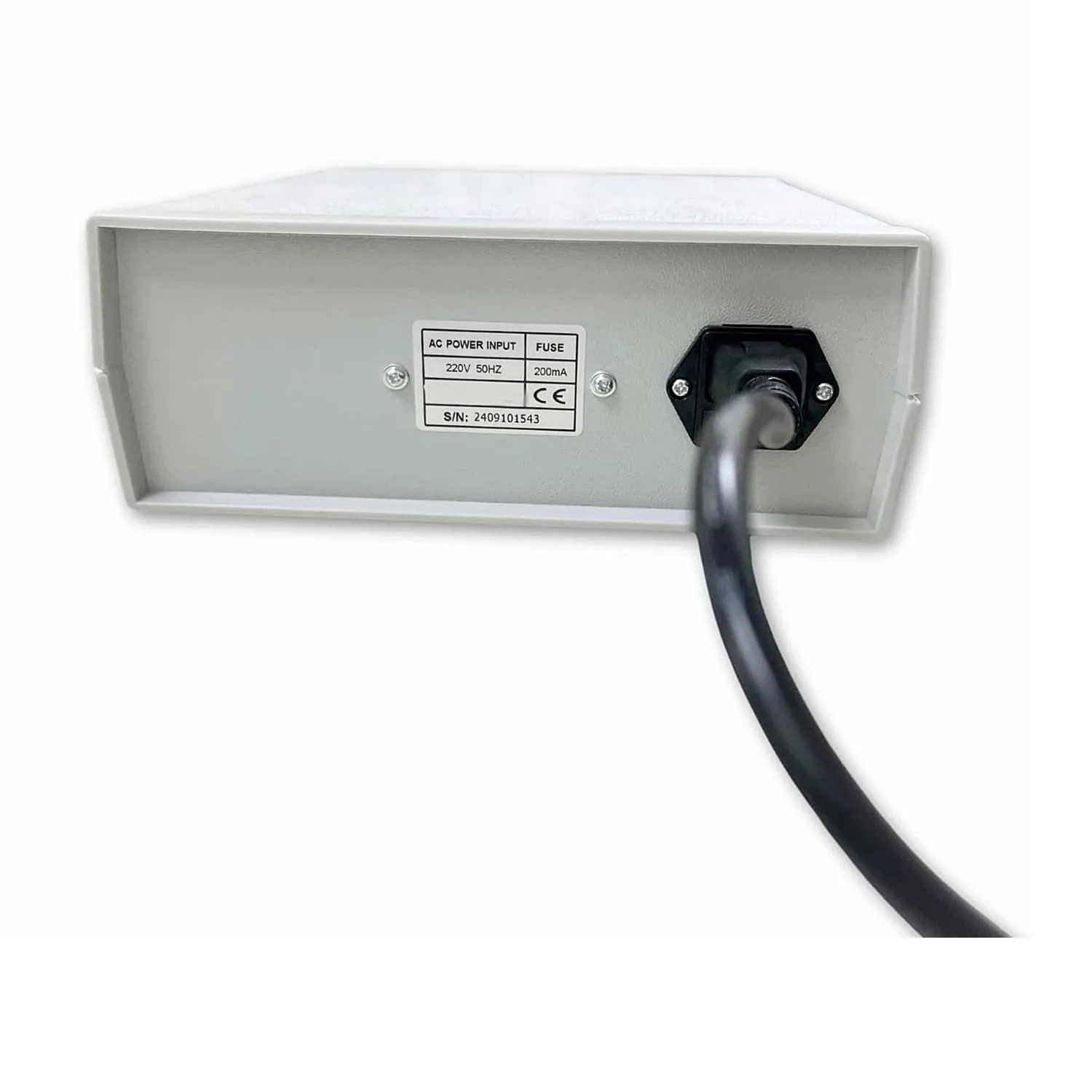

| Power | AC 220V±10% |
| Lowpass Filter | 3dB bandwidth about 100kHz |
| Input Voltage Dynamic Range | CHA 50mVrms~20Vp-p / CHB 30mVrms~1Vp-p |
| Dimensions (WxHxD) | 230 mm × 85 mm × 240 mm |
