Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M

Shop all Metravi

SKU: ME.IN.GA.00008

Model: GD09 1M

Roll over the image to zoom in


Key Features

  • Product Type: Gas Detectors & Analyzers
  • Humidity Range: 0%RH to 97%RH
  • Pressure Range: 86kPa to 106kPa
  • Working Voltage: 110V - 220V AC
  • Maximum Power: <1W
  • Detecting Gases: Combustible Gas
  • Sampling Method: Diffusion
See all product information

ToolBuy Benefits

₹2,112 (Incl. of all taxes)

₹1,790 + ₹322 GST (18%)

MRP was MRP ₹2,633

Save 32%



5 Business Days

1

90271000

Download Product LeafletNot available
Download Metravi CatalogueNot available

Highlights

The Metravi GD-09-1 Combustible Gas Detector and Alarm, has high sensitivity, a compact design and reliable performance for detecting combustible gas (like LPG) leaks. Adopting high-quality smart sensors and advanced techniques, the device is suitable for gas leak detection at premises where gas leaks are possible to occur, such as households, hotels, shopping malls, cafes, industrial kitchens, offices, canteens, etc.

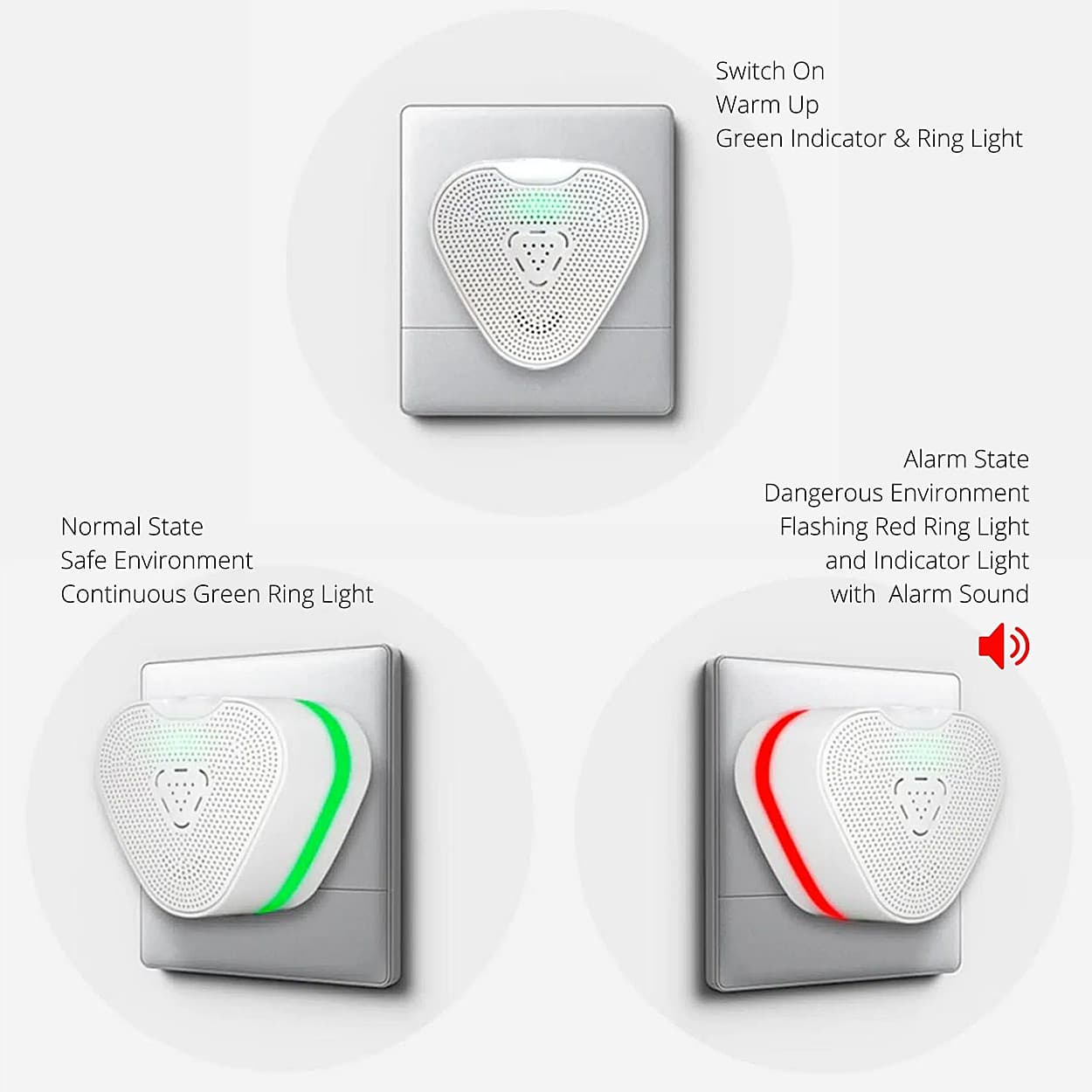

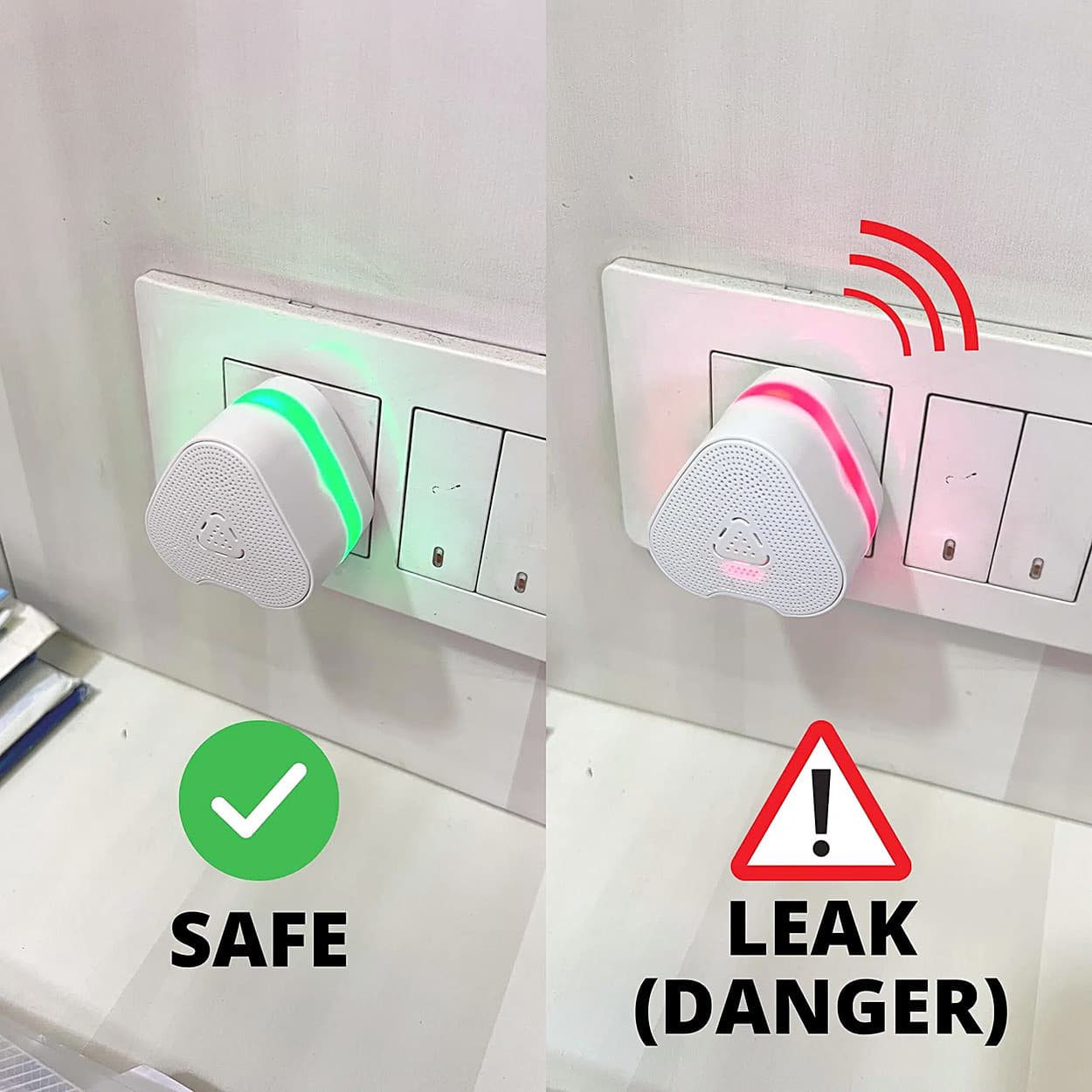

The device sounds an alarm with red flashing light, when gas concentrations reach or exceed the alarm set point, helping keep people safe from accidents like fire, explosion, suffocation, etc., due to the leak. Gas Detected: Combustible gases like LPG, Hydrogen, Methane, Propane, Iso-butane, etc.

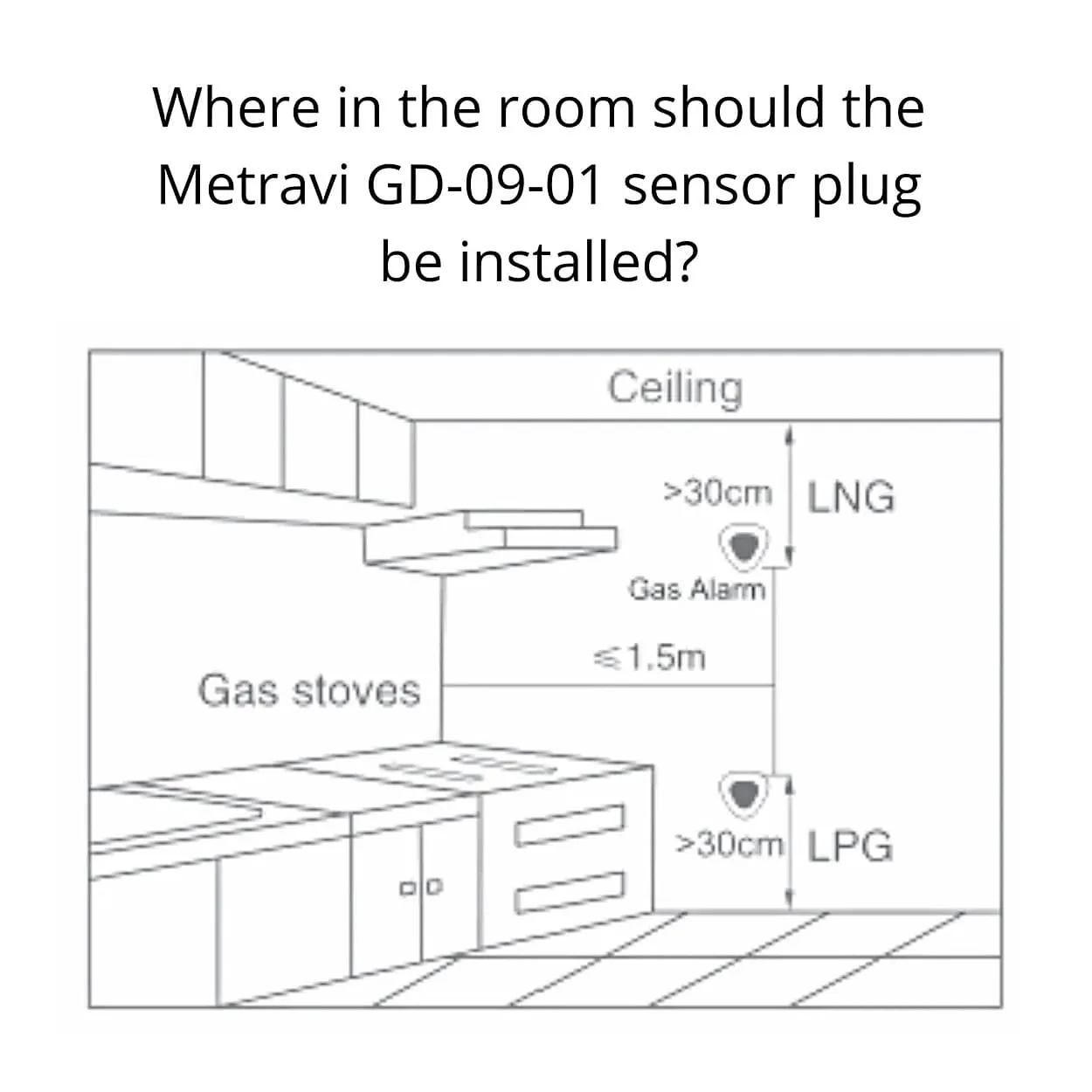

Where in the room should the sensor plug be installed?
The detector/sensor should be installed at a distance from the gas source radius within 1.5M, more than 30cms below the ceiling for methane (like LNG) or more than 30cm above the floor for propane and butane (like LPG).


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Metravi 110 - 220V AC Combustible Gas Detector & Alarm, GD-09-1M
Temperature Range-10°C to 50°C
Humidity Range0%RH to 97%RH
Pressure Range86kPa to 106kPa
Working Voltage110V - 220V AC
Maximum Power<1W
Detecting GasesCombustible Gas
Sensor TypeSemiconductor Sensor
Sampling MethodDiffusion
Alarm Set Point5% LEL
Warm-up Time180+10S
Response Time<30sec
Recovery Time<30S
Alarm Sound>70dB

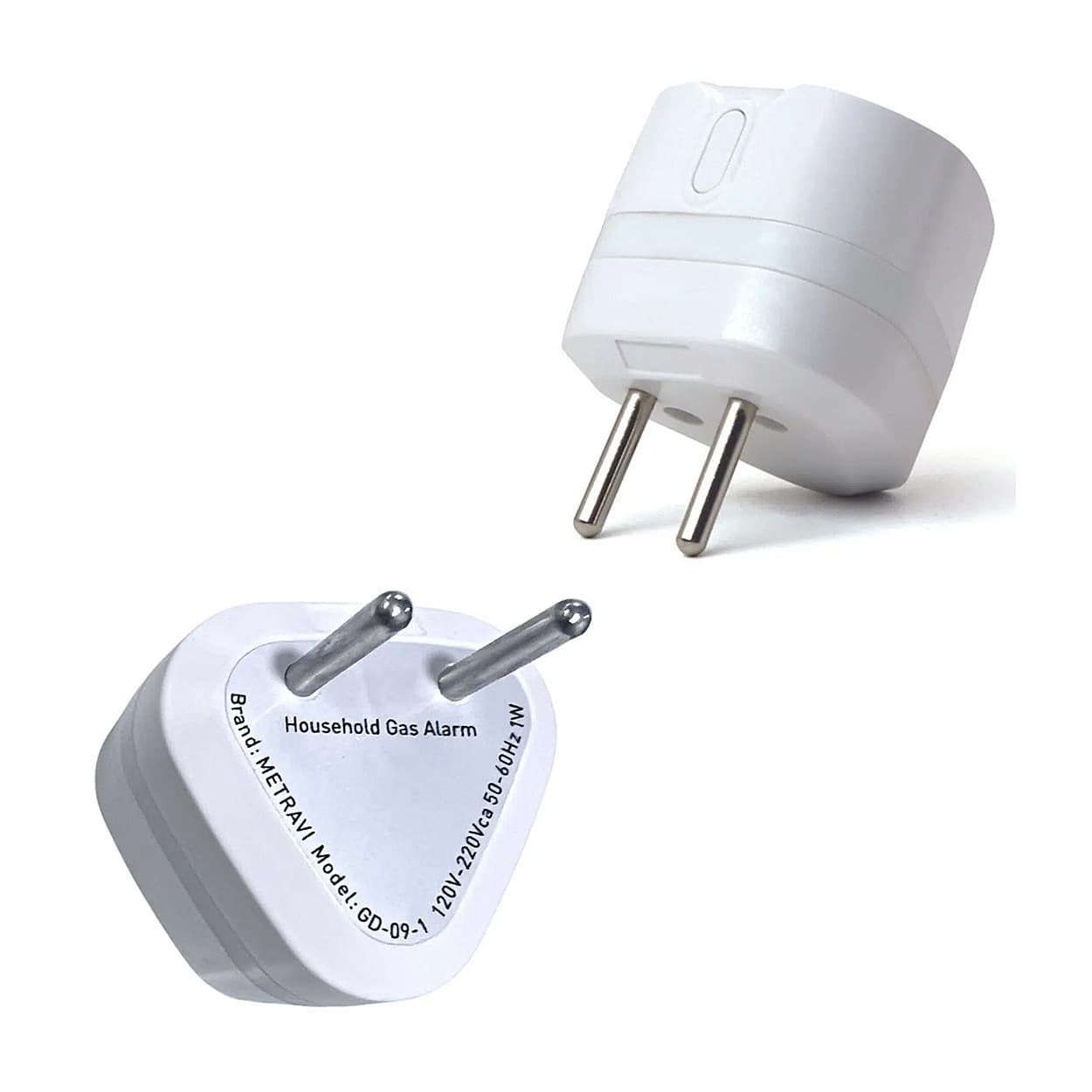

Plug Pin TypeTwo-pin
ColourOff White
Alarm ModeBeep Sound With Red Indicator Light
