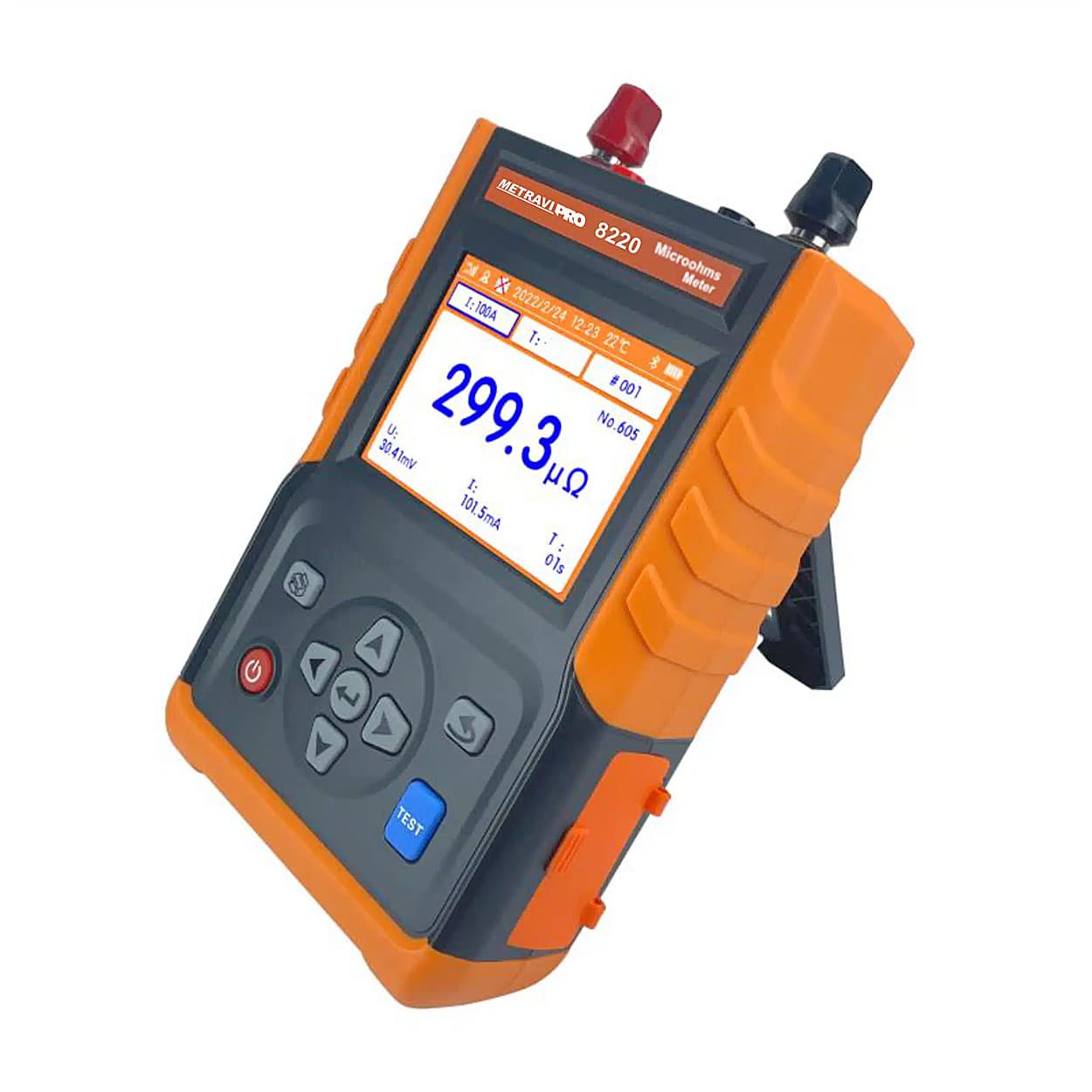

Metravi 220A Digital Mirco Ohms Meter, PRO 8200
Roll over the image to zoom in
Key Features
- Product Type: Ohms Meter
- Weight: 2.2 kg
- Resistance Resolution: 0.01μ Ohms
- Test Current Range: 220A
- Resistance Accuracy: 10A or less than 5A ±, 30A~220A
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,24,972 (Incl. of all taxes)
₹2,75,400 + ₹49,572 GST (18%)
MRP was MRP ₹4,05,000
Save 32%
5 Business Days
1
90303900
Download Metravi CatalogueNot available
Highlights
The Metravi PRO 8220 Micro Ohms Meter is designed to measure the Contact Resistance of various high voltage switches and circuit breakers, connection resistance of metal welding components, metal conductor Loop Resistance and precision Micro Ohm Resistance. With a high speed micro-controller at the core, the device combines high precision A/D convertor, digital measurement technology, anti-power frequency interference technology, and advance program-controlled current source technology, so that the built-in, high capacity, rechargeable Lithium batteries product no ripples.
Maximum output is 220A DC and the output current can be fine-tuned every 2.5A steps, up to 87 current gears, to meet the Multi-current Gear Test. At the same time, the user can set the time (10s, 20s, 30s, 40s, 50s, 60s), continuously output large Current Test and can test with high precision, high stability and high intelligence, even in strong interference environments.
The instrument features circuit protection and overheat protection. It comes with a 5.6 inch large, colour, LCD display, which is clear and intuitive. Equipped with standard resistors, the accuracy of the instrument can be self-inspected before the formal test. Wide-range, large Data Storage capacity, strong anti-interference ability and simple operation make this handheld, small size, easy-to carry device, a valuable tool for the field. It can also be equipped with printer for data printing (optional).
Features & Benefits:
- Printer
- Data Deletion
- Data Query
- Working Current: 230mA in the non-test state, Current can be set in test state
- Circuit Protection: Open-circuit protection, Over-heat protection
- Temperature Protection: By temperature monitoring

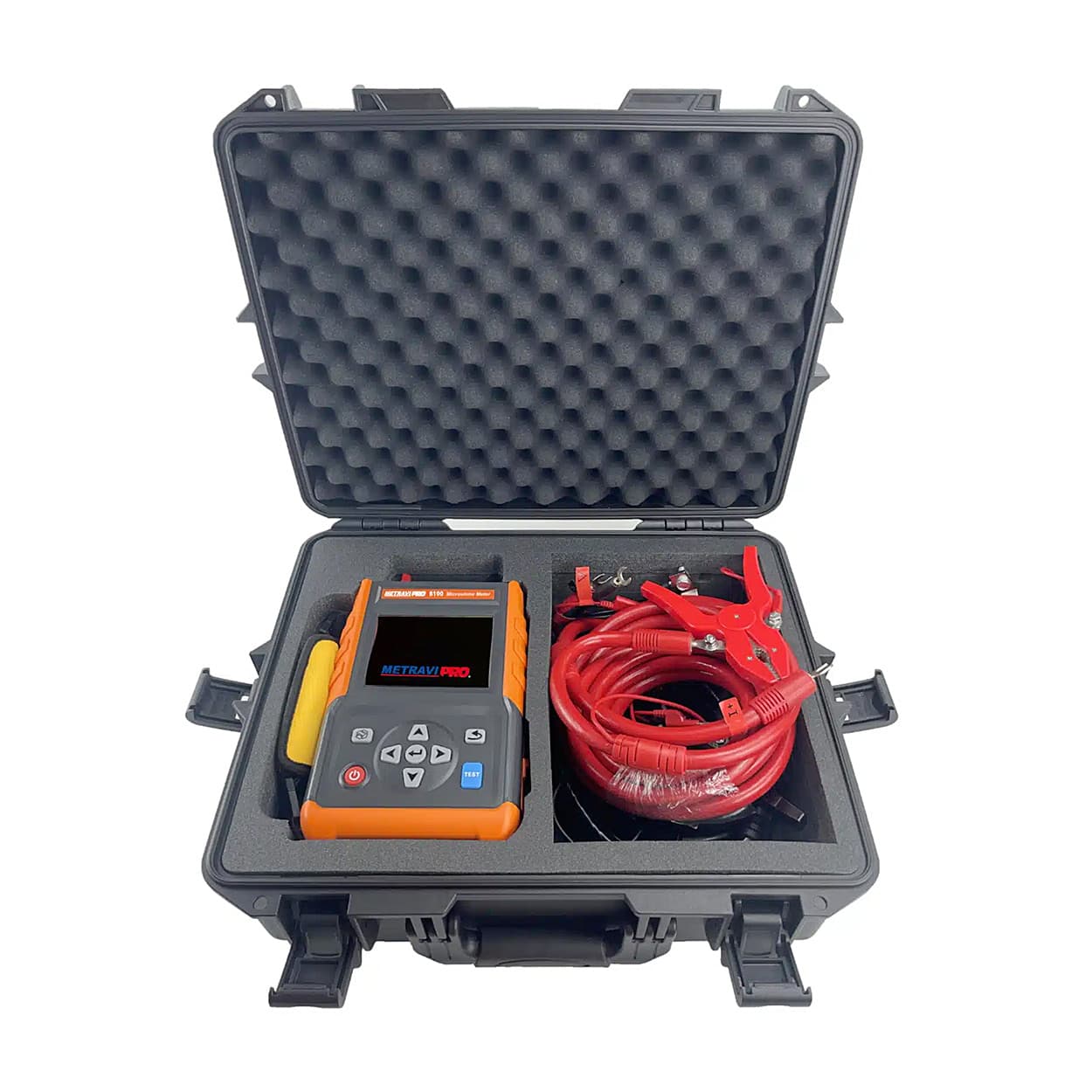

What's Included In This Package:
- Test Lead Red (10mts), Test Lead Black (10mts),
- Earth Line, Alligator Clip, Power Cable, USB Cable,
- Temperature Sensor, Printing Paper (1 roll),
- 3.75Ω Standard Resistance, User Manual, Software CD
Measurement Range:
|
Accuracy:
|
Measurement Time:
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance Resolution | 0.01μ Ohms |
|---|---|
| Test Current Range | 220A |
| Resistance Accuracy | 10A or less than 5A ±, 30A~220A |
| Protection | open circuit, over heat |
| Storage Capacity | 999 |
| Gears | 87 Current Gears |
| Power Source | Battery Operated |
| Test Interface | I-, I+, U, U+ |
| Battery Type | Rechargeable, Lithium |
| Battery Capacity | 12.6V, 9000mAh |
| Display | LCD, 5.6 inch, Backlit, Colour |
| Measurement Method | 4-wire measurement |
| Output Current | =5A, 100A, 10A, 200A, 220A, 30A, 50A, 80A |
| Working Current | 230mA in non-test state |
| Sampling Time | 10s, 20s, 30s, 40s, 50s, 60s |
| Battery Savers | Automatic Shutdown After 15 mins of Non-operation |
| Dimensions | 188 x 85 x 312 mm |
| Accuracy | 10A or less than 5A ±, 30A~220A ± |
| Measurement Time | >100A fast mode, =100A fast mode, 10s, 20s, 30s, 40s, 50s, 6os |
| Data Storage | 999 sets of data |
| Working Environment | -10°C – 50°C, below 90%RH |
| Storage Environment | -10°C~60°C, below 70%RH |
| Certifications | CATIII 600V, DC Resistance High-speed Tester, DL/T967-2005 Verification Regulation of Loop Resistance Tester, IEC61010-1, JJG166-1993 Verification Regulation of DC Resistors, JJG724-1991 Verification Regulation of DC Digital Ohmmeter, Pollution Level 2 |
