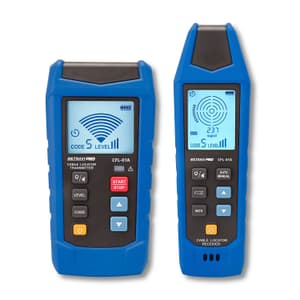

Metravi 33KHz Digital Cable Fault Locator With Pipe & Cable Tracer, PRO CFL-01A

The Metravi CFL-01A Cable Locator effortlessly tracks cables and wires, saving you time and preventing accidental damage during installations or repairs. It is a powerful device consisting of a transmitter and a receiver with state-of-the-art sensors. The transmitter displays corresponding voltages (voltage of live cable: ≥8V), and the receiver simultaneously displays the signal strength, transmitter code, transmitter power level, low battery, etc., and supports up to 8 transmitters. The Metravi CFL-01A Cable Locator has multiple advantages including accurate measurements, easy operation, visualised display and more, making it an ideal tool for low-voltage cabling engineering, engineering and maintenance of metal conductors, etc.

Features:

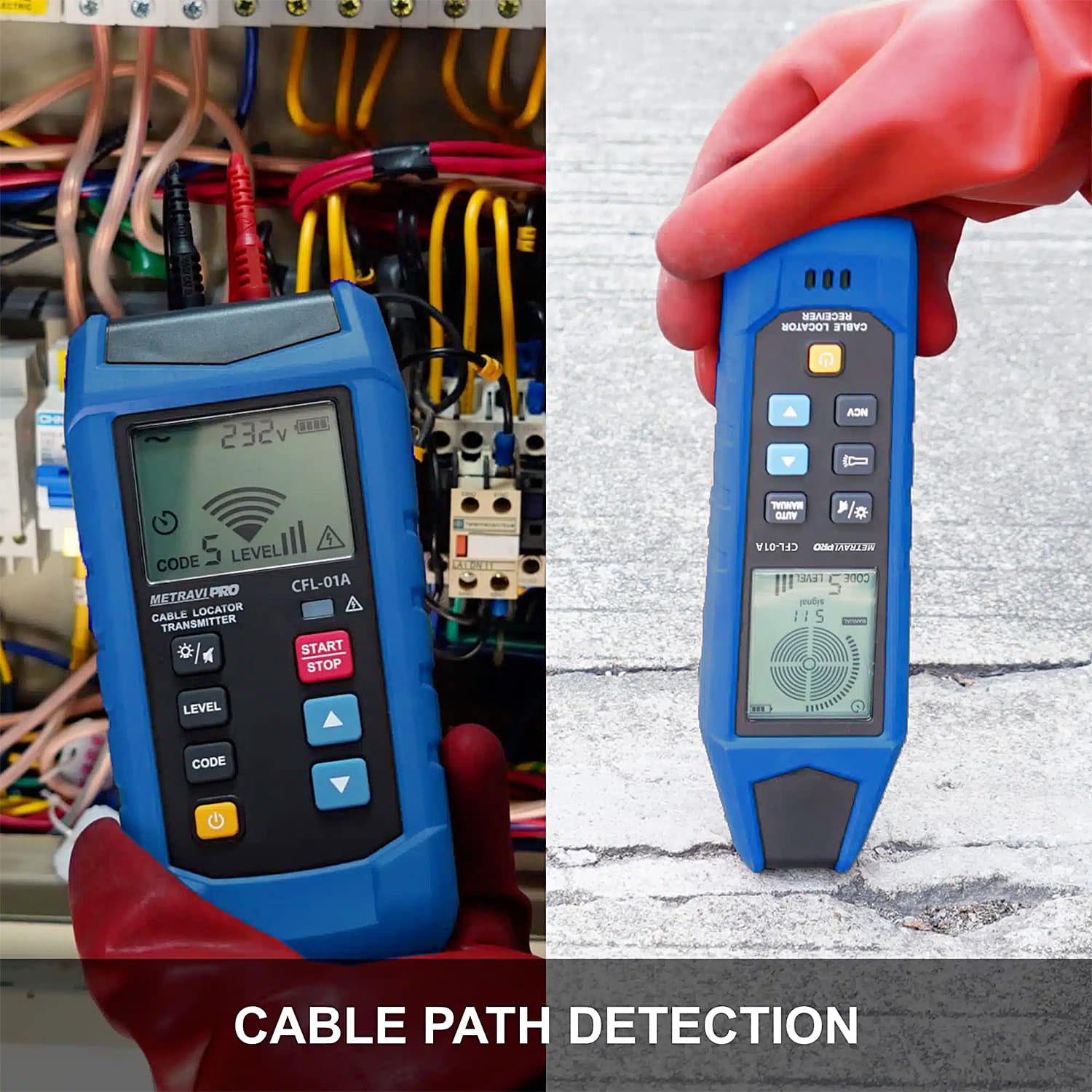

• Detect the path of low-voltage cables buried in the ground (such as cabling inside walls)

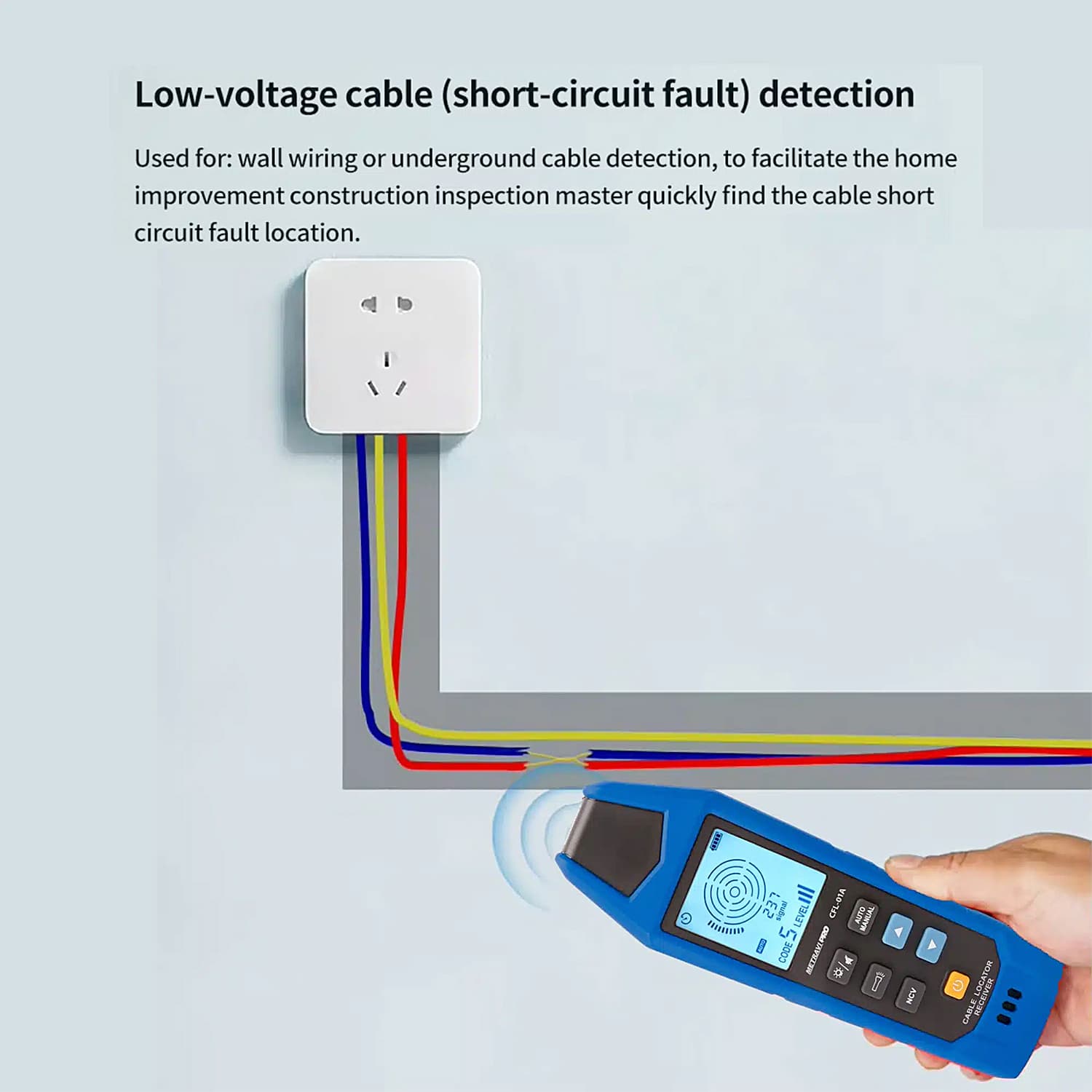

• Test and diagnose opens, shorts and other problems occurring at cabling
• Detect if the tested cable is live

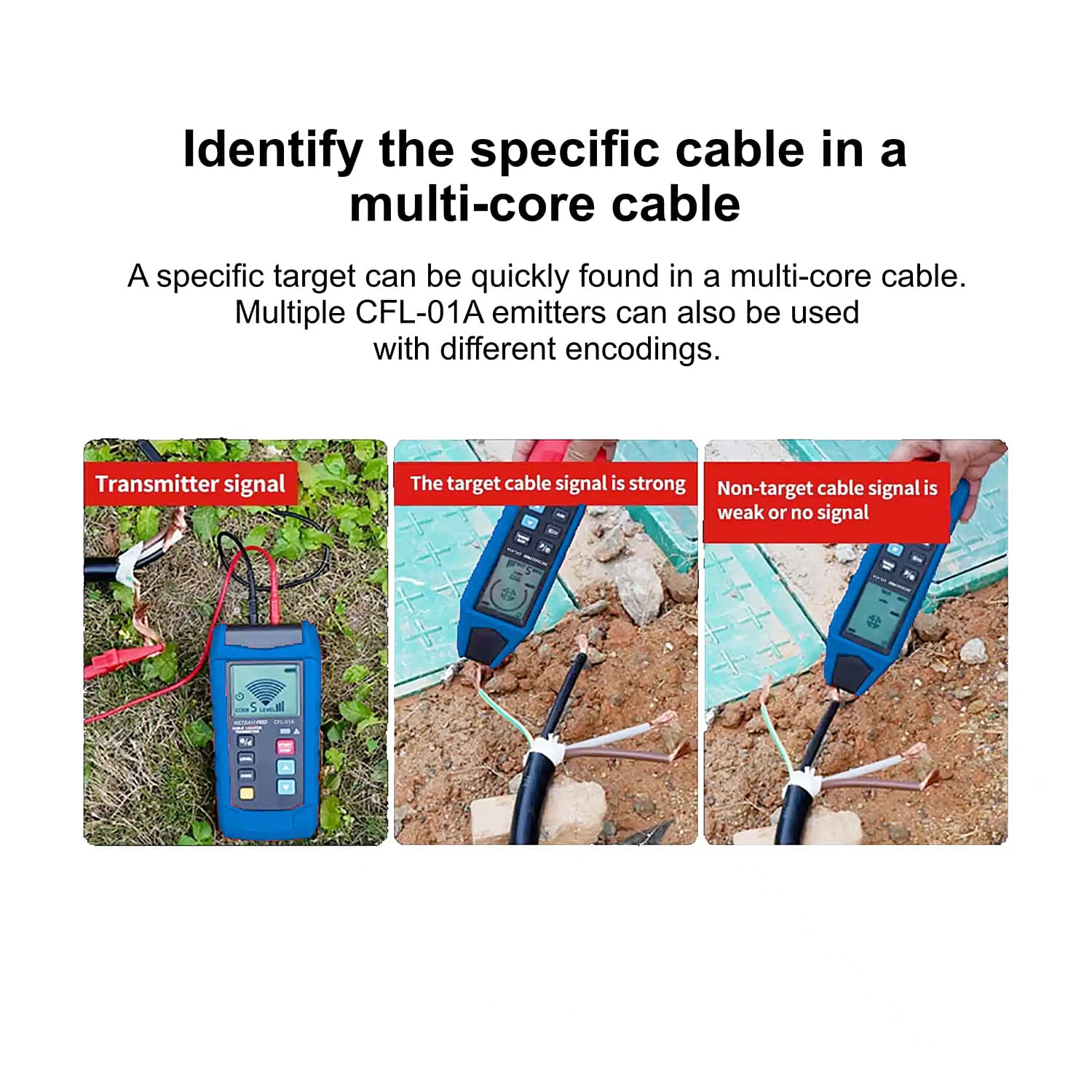

• Detects conductors
• Identify interruptions or short circuits

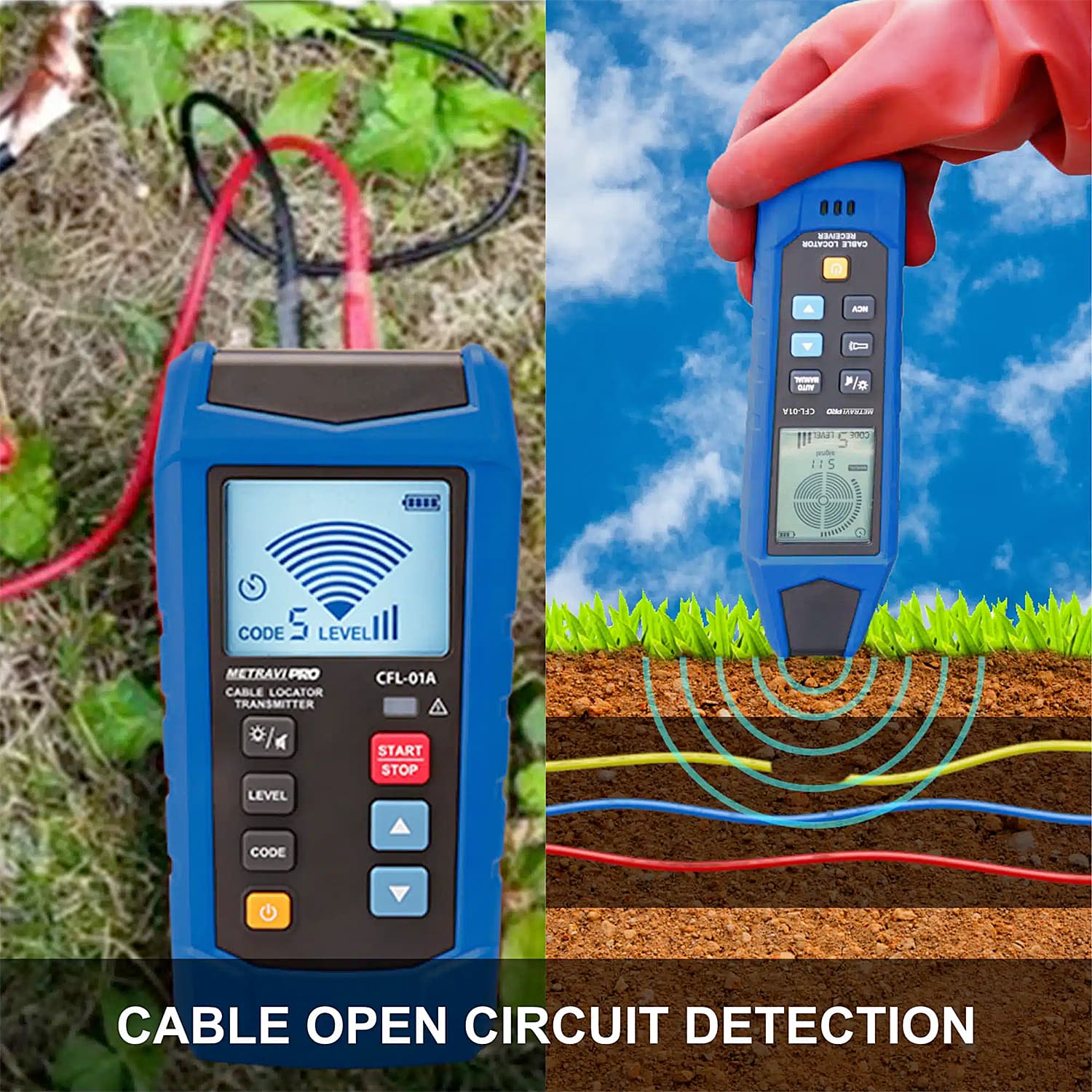

• Trace underground cables

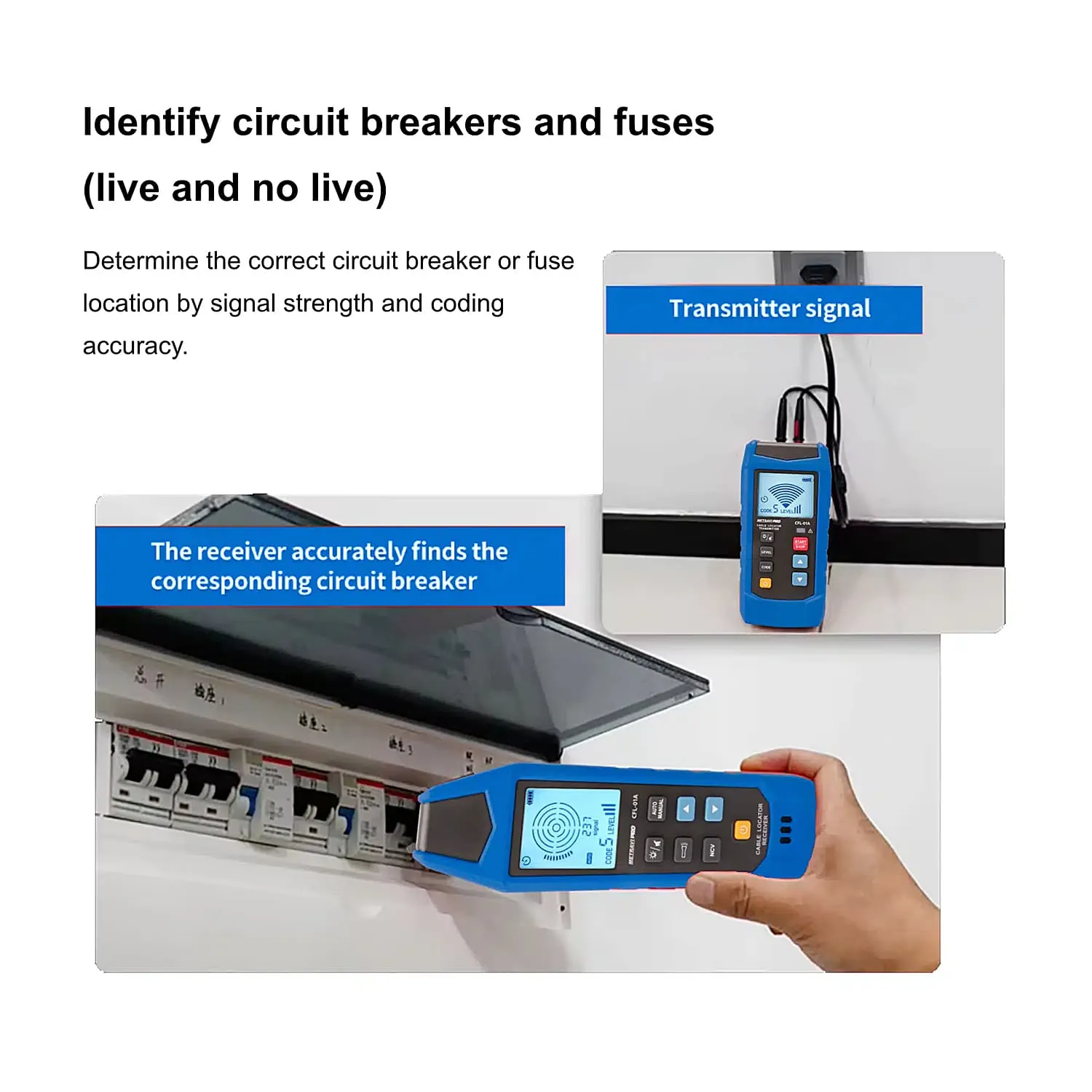

• Locate fuses and associated devices
• Detect short circuits and open circuits in underfloor heating
• Trace metal water pipes and heating pipelines
• It is perfect for residential or commercial projects
• Sensitivity of the receiver is adjustable automatically or manually (3 levels)
• Built-in Flashlight
• Backlit Display
• Automatic shutdown function
• One receiver can support up to 8 transmitters

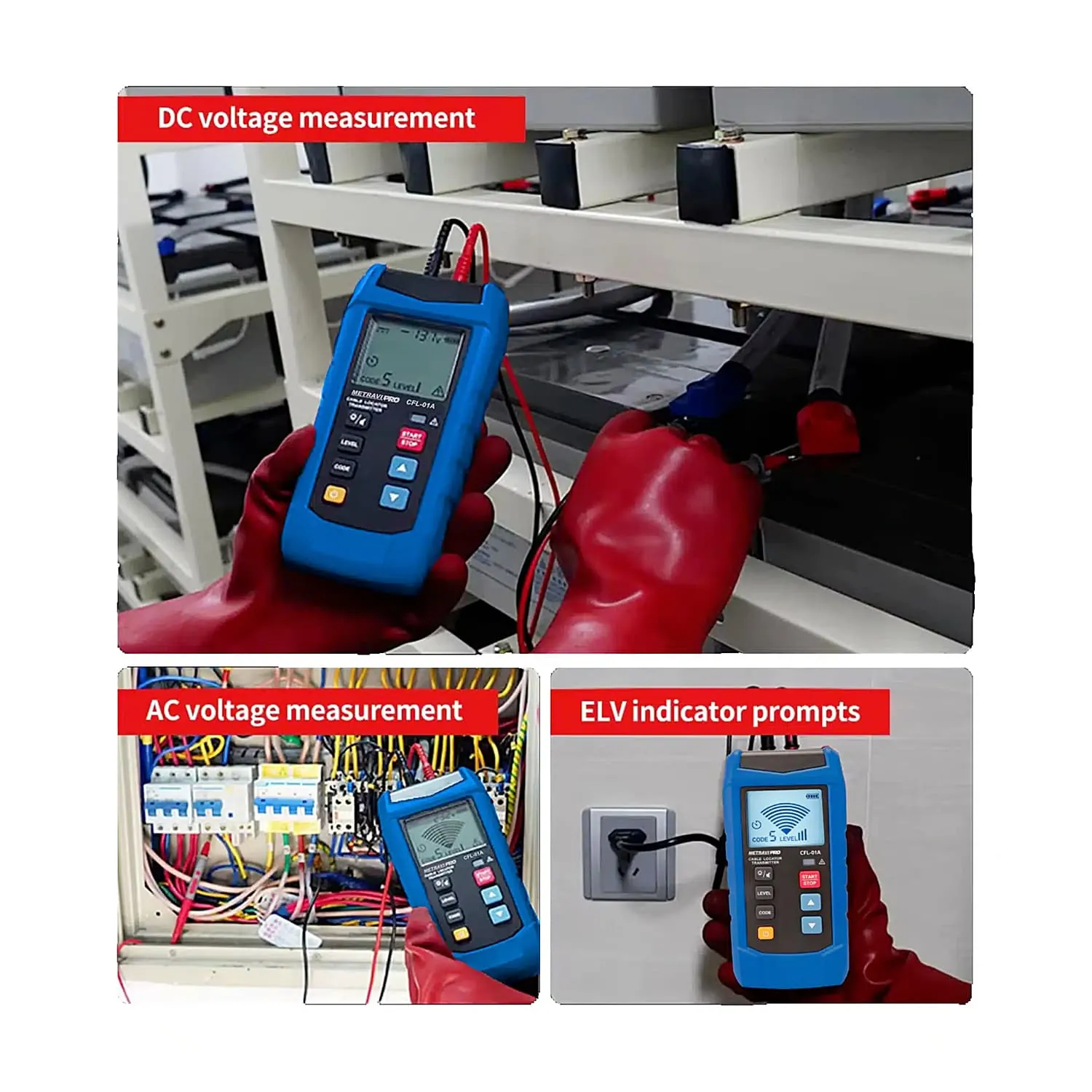

• Energised/Live wire detection: up to 480V(AC/DC)
• LED and buzzer indications
• CE, RoHS certified

Receiver (Technical Data):

• Working Frequency: 33 KHz
• Locating Depth: Related to the medium and the method used
• Tracking Mode for Single Pole: About 0~2.5 m (Use separate loop wire for 2.5 m)
• Tracking Mode for Dual Poles: About 0~0.5 m
• Grid Voltage Identification: About 0~0.4 m

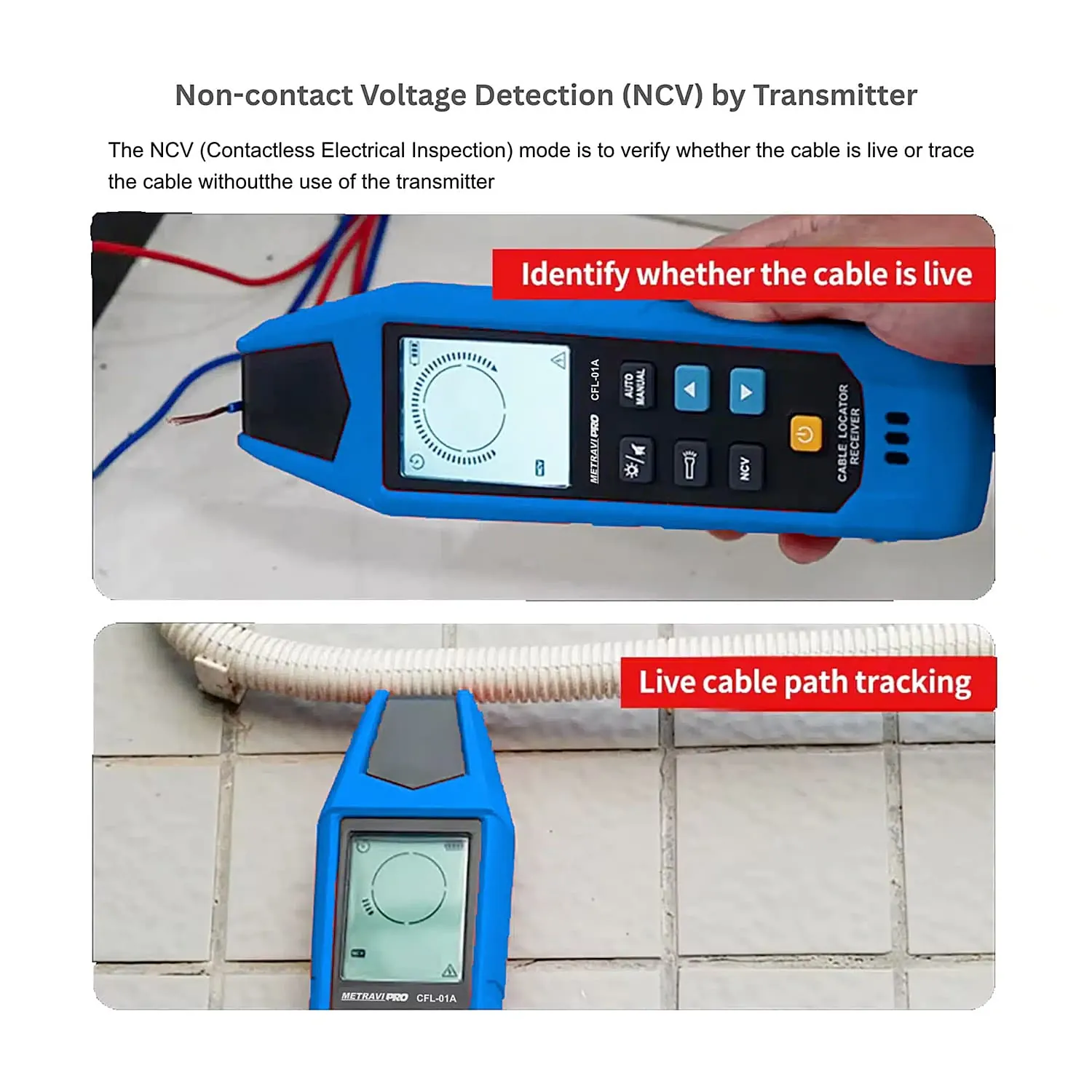

• NCV: Non-contact Voltage identification range: 80~1000V, 50Hz/60Hz (Approach the measured cable)
• Display: Segmented, Backlit LCD (TN translucent)
• Power: 6 × 1.5V AAA (LR03) Alkaline Batteries
• Low Battery Indicator
• Built-in Flashlight
• Reception Sensitivity (Manual adjustment): Including 9 levels
• Signal Strength of Transmitter: 3 levels
• Analogue Bar Range of Signal Strength: 0~43
• Receive Multiple Transmission Signals: Supported (A receiver can receive signals generated by maximum 8 transmitters at the same time)

Package Content:

• 1x Pair dual in-line Test Leads (Red + Black)
• 1x Set Alligator Clips (Red + Black)
• 1x Pair Lantern-tip Test Probes (Red + Black)
• 1x AC Polarised Plug Wire
• 1x User Manual
• 6 x 1.5V AA Alkaline Batteries (LR06)
• 6 × 1.5V AAA Alkaline Batteries (LR03)


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
