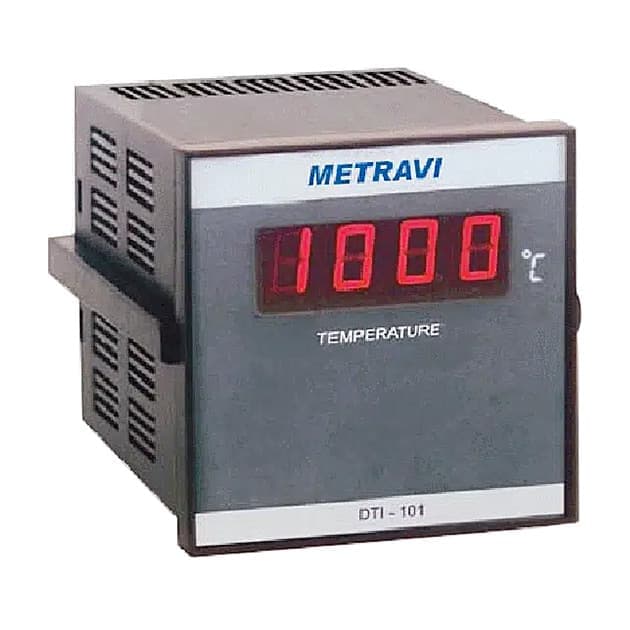

Metravi 96 x 96 mm Single Channel Temperature Indicator, DTI-101 96
Roll over the image to zoom in
Key Features
- Product Type: Temperature Controllers & Indicators
- Sensor Input: J. K. R.S. T/C. PT-100 RTD, mV, V & 4-20 mA I/P
- Supply: 230V AC ± 10% 50 Hz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,842 (Incl. of all taxes)
₹1,561 + ₹281 GST (18%)
MRP was MRP ₹2,295
Save 32%
5 Business Days
1
90251920
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
Digital Temperature Indicator 96 x 96 mm sq, for K, J, R, S, PT-100 (Any One)
Option:
- 110V AC Mains/24V DC supply
- 0 to 100% RH indicator with RH sensor
- Retransmitted output is possible
- °F Unit on Demand
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 31⁄2 Digit 7 Segment Red colour LED 0.5" ht |
|---|---|
| Cold Junction Compensation | Automatic for T/C |
| Sensor Input | J. K. R.S. T/C. PT-100 RTD, mV, V & 4-20 mA I/P |
| Accuracy | J, K, 1%, R, S 0.5%, PT-100 RTD 0.2%, mV, V, mA 0.1% |
| Sensor Open Indication | By '1' at MSD |
| Operating Temperature | 0-50°C (RH < 80%) |
| No. of Input Sensor | 6-12 Point for DTI - 101 M select by Rotary Switch for all other modules one |
| Supply | 230V AC ± 10% 50 Hz |
| Dimension (H x W x D) | 96 x 96 x 120 mm 72 x 72 x 110 mm 48 x 96 x 120 mm |
| Panel Cutout (H x W) | 92 x 92 mm 68 x 68 mm 46 x 92 mm |
