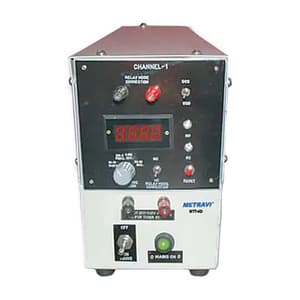

Metravi 99.99mS, 999.9mS, 9.999S Three Channel Time Interval Meter, 3CH-NTT-4D

Name: Metravi 99.99mS, 999.9mS, 9.999S Three Channel Time Interval Meter, 3CH-NTT-4D
Brand: Metravi
SKU: ME.PR.FU.00001
Price: 95325.00 INR
Availability: InStock

Shop all Metravi

SKU: ME.PR.FU.00001

Model: 3CH-NTT4D

Roll over the image to zoom in

Visit Metravi Store

Key Features

Product Type: Function Meter
Display: 7 segment LED
No of Channel: Three
Resolution: 100mSec, 100uSec, 10mSec, 10uSec, 1mSec

See all product information

ToolBuy Benefits

Secure Payments
Order Tracking (opens in a new tab)

₹95,325 (Incl. of all taxes)

₹80,784 + ₹14,541 GST (18%)

MRP was MRP ₹1,18,800

Save 32%

Dispatch: 5 Business Days

Items in Pack: 1

HSN Code: 90303390

Download Product LeafletNot available

Download Metravi CatalogueNot available

Highlights

4 Digits 3 Channel Digital Time Interval Meter for measuring in the range of 99.99mS, 999.9mS, 9.999S

Features:

Suitable to test protective device, circuit breaker, tripping coils, relays etc.
Ranges : A. 0 – 99.99mSec Resolution 10uSec / B. 0 – 999.9mSec. Resolution 100uSec / C. 0 – 9.999mSec. Resolution 1mSec
Time Start Mode : Simultaneously 3 channel starts by injection of 20V to 240V AC/DC or by potential Free Contact
Time Stop Mode : Individual stop of timer counting with excitation of auxiliary contacts of relay or switchgear under test.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Metravi 99.99mS, 999.9mS, 9.999S Three Channel Time Interval Meter, 3CH-NTT-4D
Display	7 segment LED
Colour	Black-White
No of Channel	Three
Input	230V, 50Hz Single Phase AC
Measuring Range	0 to 9.999mSec, 0 to 99.99mSec, 0 to 99.99Sec, 0 to 999.9mSec, 0 to 999.9Sec
Resolution	100mSec, 100uSec, 10mSec, 10uSec, 1mSec
