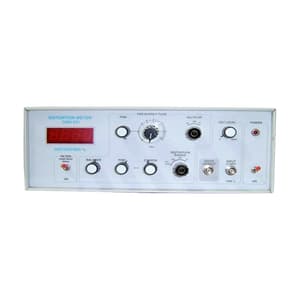

MetroQ 4 Digit / 0.01 to 100% Digital Distortion Meter, MTQ DSM 201
Roll over the image to zoom in
Key Features
- Product Type: Distortion Meter
- Range: 2%, 20% & 100% Full Scale
- Range of Frequency: 20Hz to 20KHz (Fundamental) in 3 bands
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,608 (Incl. of all taxes)
₹5,600 + ₹1,008 GST (18%)
5 Business Days
1
90278990
Download MetroQ CatalogueNot available
Highlights
The Distortion Meter DSM-201 a highly selective balancing network is used to eliminate the fundamental frequency in the 20Hz to 20kHz band. The distortion products are fed to a stable high-gain wideband amplifier for indication on the meter. The amplifier is effective up to 200KHz and measurements are possible up to and including the tenth harmonic of 20KHz.
The balancing network is switched cover three- decade bands for measuring distortion levels whereby the signal the high-gain amplifier is used as a sensitive voltmeter. To facilitate tuning Output distortion BNC socket are provided for oscilloscope connection when observing the distortion components, which responds quickly to any change in tuning. This works in Conjunction with the digital panel meter.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Range | 2%, 20% & 100% Full Scale |
|---|---|
| Accuracy | ±2% of Full Scale |
| Range of Frequency | 20Hz to 20KHz (Fundamental) in 3 bands |
| Input Voltage Range | 50mV to 10.0volt |
| Input Impedance | 100Kilo Ohm; < 5OpF in shunt |
| Fundamental Rejection | Over 60 dB |
| Residual Distortion | Less than 0.05% |
| Power Supply | 220 volts / 50Hz; ± 10% |
