Mitutoyo 0 - 0.025 inch Long Stroke Dial Indicator with Lug Back, 3803A-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Type of Product: Dial Indicator
- Range (Inches): 0 - 0.025 inch
- Graduation (inch): 0.0001 inch
- Dial Reading: 0-5-0
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹14,630 (Incl. of all taxes)
₹12,398 + ₹2,232 GST (18%)
MRP was MRP ₹16,530
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Reverse Reading, with damper at lowest rest point
- Dial indicators with a large-diameter dial face for easy reading.
- Models with longer measuring ranges are also available.
- All types are supplied with limit markers and a bezel clamp as standard.
- The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
- A carbide contact point is used.

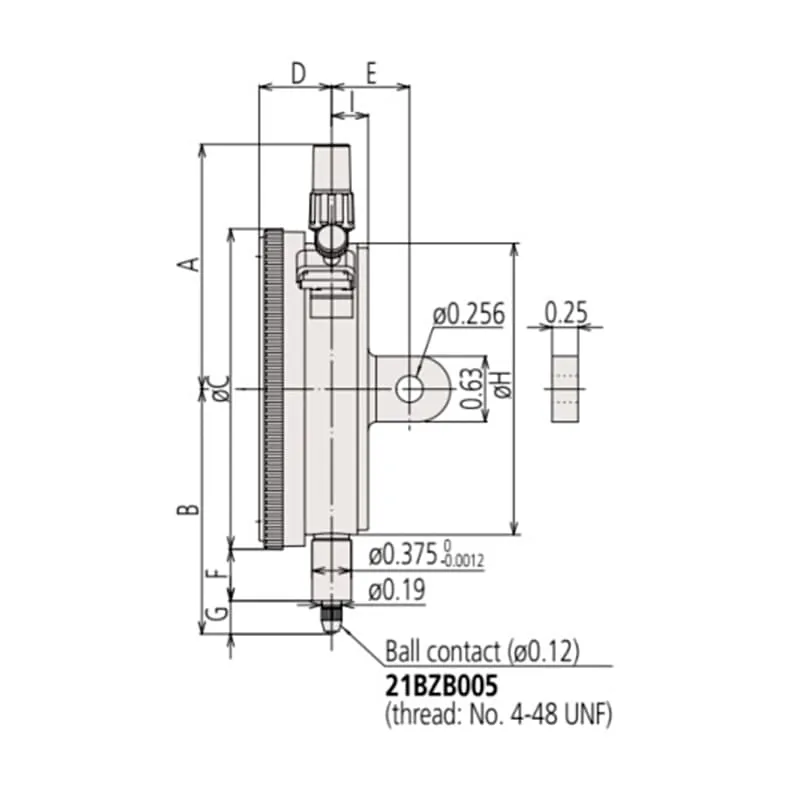

Dimension Measurement (inch)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (Inches) | 0 - 0.025 inch |
| Rev (inch) | 0.01 inch |
| Graduation (inch) | 0.0001 inch |
| Accuracy (inch) | ±0.0001 inch (First 1 Rev / 2.5 Rev) |
| Accuracy Retrace (inch) | 0.0001 inch |
| Repeatability (inch) | ±0.00003 inch |
| Dial Reading | 0-5-0 |
| Measuring Force (N) | 2.0 or less |
