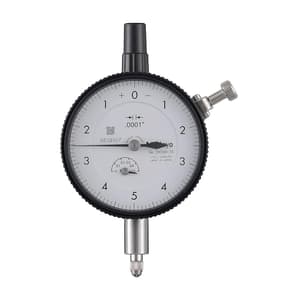

Mitutoyo 0 - 0.05 inch Standard Type Dial Indicator with Lug Back, 2923A-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Weight: 164 g
- Type of Product: Dial Indicator
- Range (Inches): 0 - 0.05 inch
- Graduation (inch): 0.0001 inch
- Dial Reading: 0-5-0
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹9,381 (Incl. of all taxes)
₹7,950 + ₹1,431 GST (18%)
MRP was MRP ₹10,600
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Comparison measuring instruments which ensure high quality, high accuracy & reliability.
- The revolutionary stem-bush design for trouble free stem clamping and longer clamping range.
- No through screw-hole on the frame for high dust-resistance.

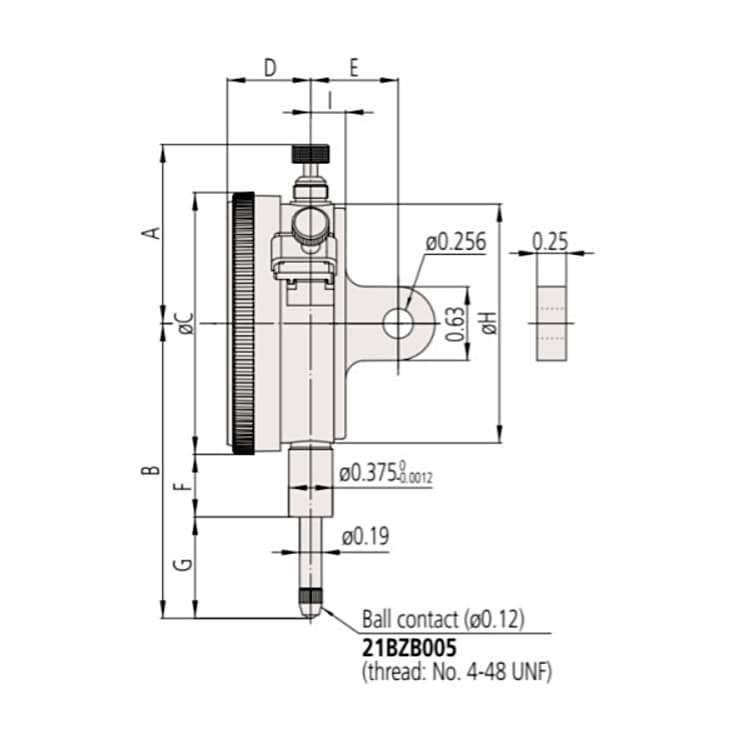

Dimension Measurement (inch):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (Inches) | 0 - 0.05 inch |
| Rev (inch) | 0.01 inch |
| Graduation (inch) | 0.0001 inch |
| Accuracy (inch) | ±0.0001 inch (First 1 Rev / 2.5 Rev) / ±0.0002 inch (10 Rev) |
| Accuracy Retrace | 0.0001 inch |
| Repeatability (inch) | ±0.00003 inch |
| Dial Reading | 0-5-0 |
| Measuring Force (N) | 2.0 or less |
