Mitutoyo 0 - 0.5 mm Compact Type Extra Small Dial Indicator with Flat Back, 1913AB-10
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Weight: 52 g
- Type of Product: Dial Indicator
- Range (mm): 0 - 0.5 mm
- Graduation (mm): 0.01 mm
- Dial Reading: 0-100-0
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,319 (Incl. of all taxes)
₹10,440 + ₹1,879 GST (18%)
MRP was MRP ₹13,920
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Balanced Scale & Jeweled Bearing
- Slim, space-saving design ideal for tight or confined working areas
- Prevents reading inaccuracies by removing the need to track multiple spindle revolutions
- Equipped with precision jeweled bearings for smooth and reliable movement

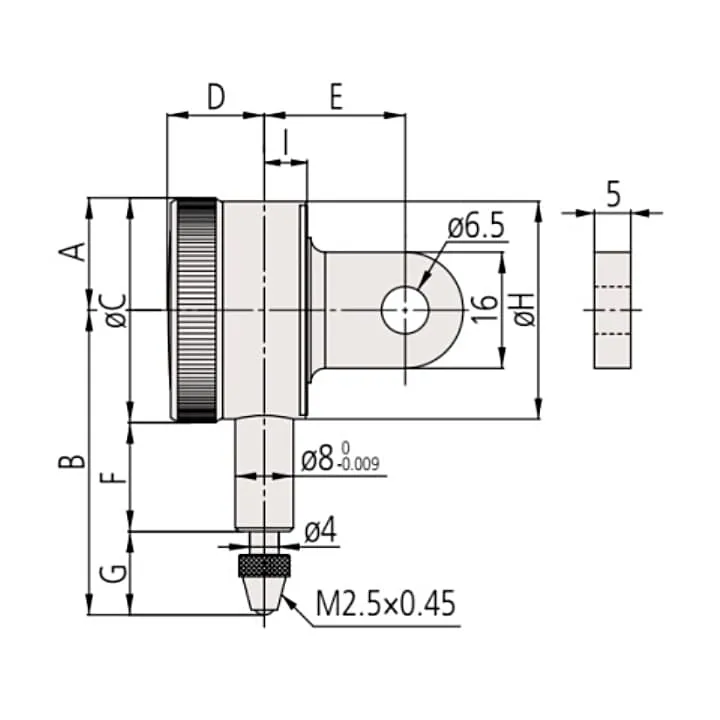

Dimension Measurement (mm):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (mm) | 0 - 0.5 mm |
| Rev (mm) | 0.2 mm |
| Graduation (mm) | 0.01 mm |
| MPE Indicator Error (μm) | 2.5μm (1/10 Rev) / 4μm (1/2 Rev) / 5μm (1 Rev) / 6μm (Mearing Range) |
| MPE Hysteresis (μm) | 2.5μm |
| MPE Repeatability (μm) | 1μm |
| Dial Reading | 0-100-0 |
| Measuring Force (N) | 1.8 or less |
