Mitutoyo 0 - 1 mm Compact Dial Indicator with Lug Back, 1929A
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Weight: 90 g
- Type of Product: Dial Indicator
- Range (mm): 0 - 1 mm
- Graduation (mm): 0.01 mm
- Dial Reading: 50-0-50
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,337 (Incl. of all taxes)
₹5,370 + ₹967 GST (18%)
MRP was MRP ₹7,160
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Balanced Scale, One revolution & Shockproof
- Compact dial indicators ideal for restricted-space applications in gaging jigs.
- Mitutoyo's unique shock-proof mechanism is incorporated, providing improved resistance to shock due to sudden spindle retraction caused by impact.
- This series has been developed to eliminate the possibility of reading errors due to miscounting multiple revolutions.
- The dead zone in red indicates "accuracy not guaranteed"

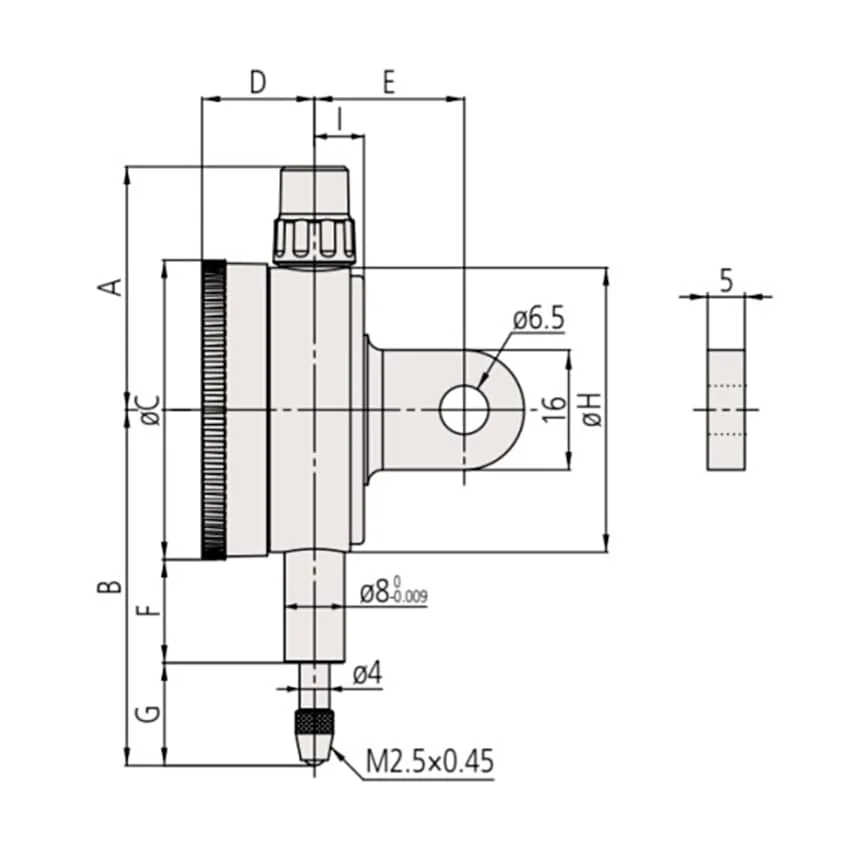

Dimension Measurement (mm):
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (mm) | 0 - 1 mm |
| Rev (mm) | 1.4 mm |
| Graduation (mm) | 0.01 mm |
| MPE Indication Error (μm) | 7μm (1/10 Rev) / 11μm (Measuring Range) |
| MPE Hysteresis | 4μm |
| MPE Repeatability (mm) | 3μm |
| Dial Reading | 50-0-50 |
| Measuring Force (N) | 1.4 or less |
