Mitutoyo 0 - 1 mm Waterproof Dial Indicator with Flat Back, 2109AB-70
Roll over the image to zoom in
Key Features
- Product Type: Dial Indicator
- Weight: 140 g
- Type of Product: Dial Indicator
- Range (mm): 0 - 1 mm
- Graduation (mm): 0.001 mm
- Dial Reading: 0-100-0
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,682 (Incl. of all taxes)
₹7,358 + ₹1,324 GST (18%)
MRP was MRP ₹9,810
Save 25%
1 Business Days
1
90318000
Download Product LeafletNot available
Download Mitutoyo CatalogueNot available
Download Mitutoyo CatalogueNot available
Highlights
- Balanced Scale, Waterproof, Shackproof & Jeweled Bearing
- Water-proof type dial indicators having a bezel with an outside diameter of 57 mm.
- O-rings and rubber bellows are used to prevent water and oil penetration.
- The bezel clamp can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- The stem and spindle are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
- A carbide contact point is used.
- Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.

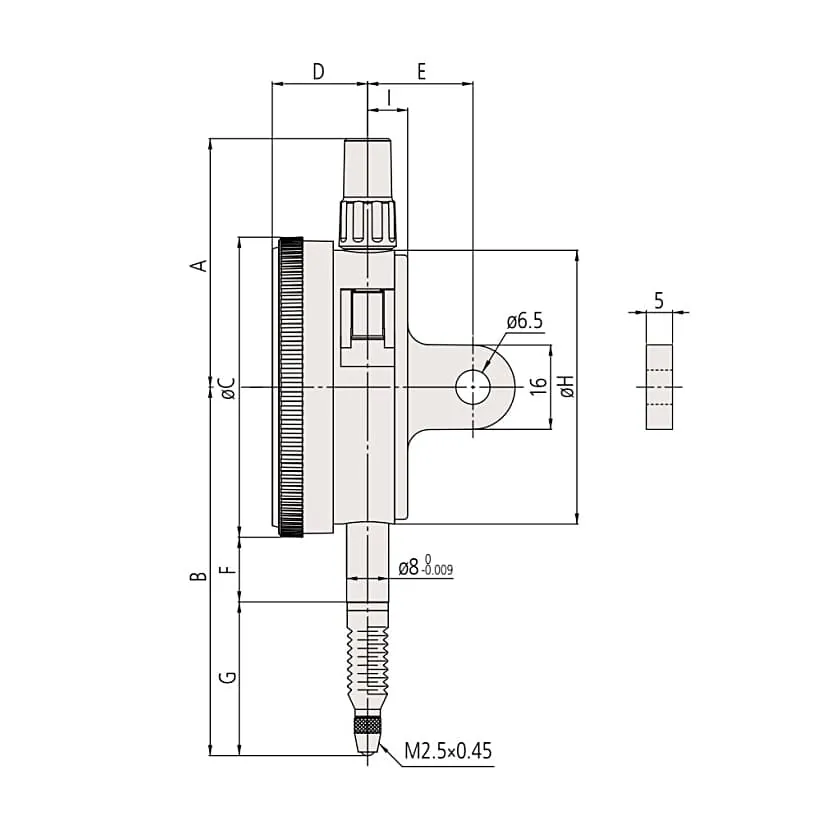

Dimension Measurement (mm)
 |
|
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Type of Product | Dial Indicator |
|---|---|
| Range (mm) | 0 - 1 mm |
| Rev (mm) | 0.2 mm |
| Graduation (mm) | 0.001 mm |
| MPE Indicator Error (μm) | 2μm (1/10 Rev) / 3μm (1/2 Rev) / 4μm (1 Rev) / 5μm (Measuring Range) |
| MPE Hysteresis (μm) | 2μm |
| MPE Repeatability (μm) | 0.5μm |
| Dial Reading | 0-100-0 |
| Measuring Force (N) | 2.0 or less |
| IP Rating | IP64 |
